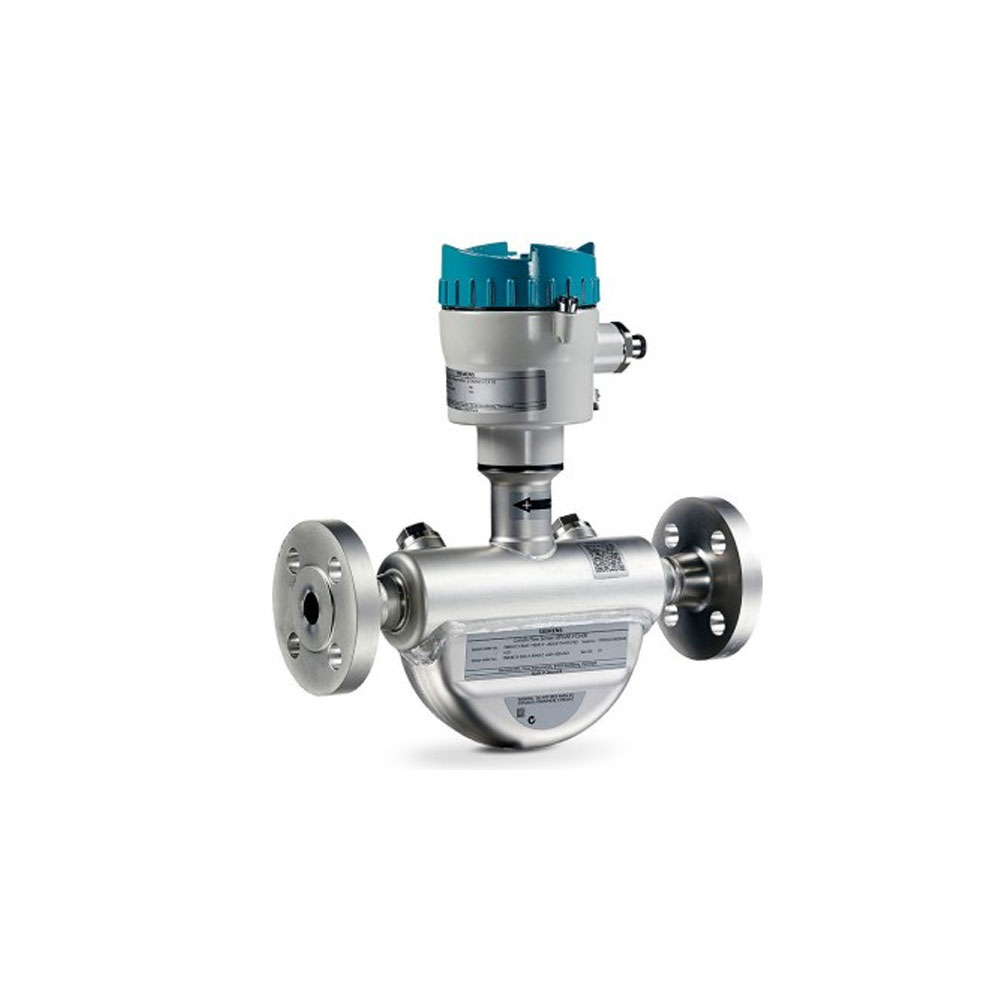

Datasheet- Space-saving – compact sensor and built-in transmitter allow for more efficient skid and plant layout
- Direct integration – into new or existing control systems with multidrop-addressable Modbus RTU RS485 communication protocol and fully configurable byte order to support all PLC types
- Easy installation – with standard connections and streamlined wiring
- High accuracy – ±0.1% achieved at up to 100 bar and 200 °C
- Flexible – available from DN15 to DN50 to ensure a broad application fit
- Dedicated performance – delivers true multi-parameter measurements (e.g. mass flow, volume flow, density and temperature)
- High speed – 10 m/s signal update for reliable data transfer and up to 115,2 kBit/s RS485 data rates for multiple instruments
Detail
|
Sizes
|
DN15 (½”)
DN25 (1″) DN50 (2″) |
|
|---|---|---|
|
Accuracy
|
±0.10 %
|
|
|
Repeatability
|
±0.05 %
|
|
|
Flow range (water @ 1 bar pressure loss)
|
DN15: 3700 kg/h (8157 lb/h)
DN25: 11500 kg/h (25353 lb/h) DN50: 52000 kg/h (114640 lb/h) |
|
|
Power Supply
|
24 V DC ±20%
|
|
|
Weight
|
4,6 – 27 kg
|
|
|
Materials
|
Sensor:
Transmitter: |
Wetted parts: 316L stainless steel
Aluminium with corrosion-resistant coating |
|
Enclosure rating (IP)
|
IP 67
|
|
|
Pressure ratings
|
Measuring tubes
Sensor enclosure
Sensor enclosure burst pressure |
Stainless steel: 100 bar (1450 psi)
20 bar (DN15, DN25)
>160 bar (all sizes) |
|
Temperature ratings
|
Process medium Ambient |
-50 … 200 °C (-58 … 392 °F) -40 … 60 °C (-40 … 140 °F) |
|
Process connections
|
Flanges Pipe threads Hygienic threads Hygienic clamps |
EN1092-1 B1, EN1092-1 D, ANSI / ASME B16.5, JIS B 2220, DIN11864-2A ASME B1.20 (NPT), ISO228-1 G (BSPP), VCO Quick-connect DIN11851, DIN11864-1, ISO2853, SMS 1145 DIN11864-3A, DIN32676, ISO2852 |
|
Approvals
|
Hazardous area Pressure equipment |
ATEX, IECEx, cCSAus, FM, EAC PED, CRN |
|
NAMUR
|
Complying with NE132
|
|
|
Process values
|
Mass flow
Volume flow Density Process temperature |
|
|
Totalizer
|
1 totalizer for net mass flow
|
|
|
Communication
|
Modbus RTU TS-485 2-wire communication
|
|
|
EMC performance
|
EN 61326-3-2 |
|
|
Mechanical load
|
18 to 1000 Hz random, 3.17 G rms, in all directions
|
