AS-Schneider K Series Ball Valves are available with a lot of options. The ball valves are very robust and the valve bodies in Carbon Steel and Stainless Steel are forged. The ball valves are designed especially for severe service for the chemical and petrochemical process industry. They are especially used for close coupled hook-ups. End connector and valve body are full penetration welded for environmental protection.
 Datasheet
|
AS-Schneider KA Series Ball Valves are available with a lot of options. The below mentioned valves (see drawings) are the standard types (1/2 NPT threaded, except the KA1-H##H## Type). If you need the dimensions for your individual type please contact the factory.
| Datasheet |
AS-Schneider KB & KC Series Ball Valves are available with a lot of options. The below mentioned valves (see drawings) are the standard types. If you need the dimensions for your individual type please contact the factory.
|
Datasheet
|
AS-Schneider Low Pressure Ball Valves are designed for a max. allowable (Working) Pressure (PS) of 69 bar (1,000 psi). The valve body is a one piece design. The ball valves are available with NPT female thread (see below drawing and table). The 1/4 NPT and 1/2 NPT ball valves are also available with butterfly handle.
| Datasheet |

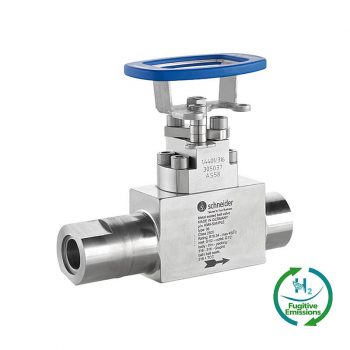

Kugelhähne Typ KM von AS-Schneider sind mit einer Vielzahl von Optionen erhältlich. Die Kugelhähne sind für extreme Betriebsbedingungen mit einer Druckstufe von Class 2.500 und Temperaturen bis 450°C ausgelegt. Die Kugelhähne sind Fire Safe getestet nach ISO 10497 und API 607 und erfüllen die TA-Luft-Anforderung. Bei dem unten abgebildeten Kugelhahn (siehe Zeichnungen) handelt es sich um die Standardausführung. Wenn Sie die Abmessungen für Ihren speziellen Anwendungsfall benötigen wenden Sie sich bitte an das Werk.
|
Datenblatt
|
At AS-Schneider, we have been experts in the effective control of Fugitive Emissions from valves for more than a decade. Our Instrumentation Valves and Process Valves are available acc. to ISO 15848-1 and the TA-Luft option acc. to the amendment (status 2021). Our extensive portfolio has been certified by TÜV Süd.
| Datasheet |
All valves and manifolds as well as our Double Block & Bleed Piping Ball Valves are suitable for up to 100% hydrogen use. In other words, our instrumentation valves and process valves can also be used safely in natural gas applications with, for example, a 20% hydrogen blending. This feature is of particular interest to natural gas plant operators and gas network operators who want to convert their natural gas pipelines for hydrogen.
| Datasheet |
