The Bracket fits to AS-Schneider Wafer Style Manifolds with Bottom Inlet Design. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 3 Socket Head Cap Screws M8x12
 Datasheet |

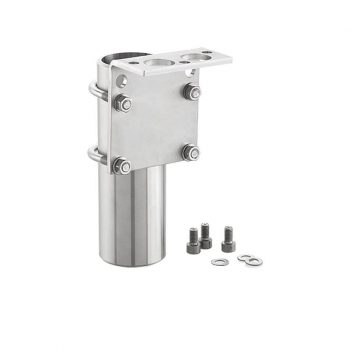

The Bracket fits to AS-Schneider E Series Manifolds Type D, W and 5 as well as to our F Series Manifolds Type S541/N541. The difference between AKM-D and AKM-C is just the thread type of the manifold/bracket bolts The standard bracket Type D requires M10 bolts and for the CoplanarTM Style Manifolds 3/8-16 UNC bolts are required. The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 2 Washers – 10.5
- 2 Socket Head Cap Screws M10x14 → AKM-D Type respectively
- 2 Socket Head Cap Screws 3/8-16 UNC x 5/8" → AKM-C Type
| Datasheet |

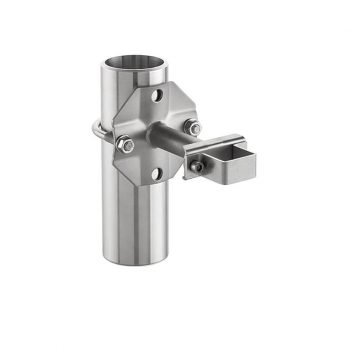

The Bracket fits to AS-Schneider Double Block & Bleed Manifolds Type C. The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolts
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
- 2 Socket Head Cap Screws M6x10
| Datasheet |

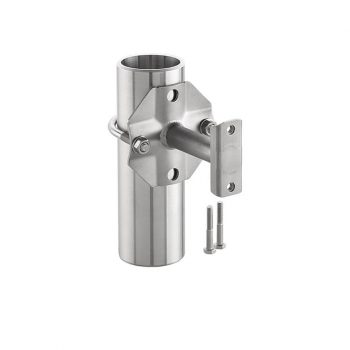

The Bracket fits to AS-Schneider Manifolds with 1 1/4" Flat Body - Type P and R (see Catalogue AS-2601 - E Series Valves and Manifolds). The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
- 2 Hex Cap Screws M6x40
| Datasheet |

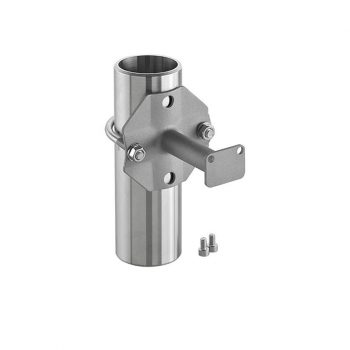

The Bracket fits to AS-Schneider Valves and Manifolds with 1 1/4" Square Valve Body (suitable for Type H, G, M and S). The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
| Datasheet |

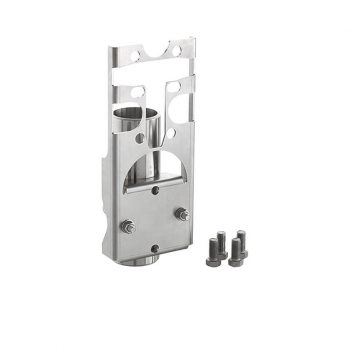

The Bracket fits to AS-Schneider Integral Manifolds – Traditional Style. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8.4
- 2 Hexagon Nuts M8
- 4 Hex Cap Screws 7/16-20UNF x 1"
| Datasheet |
The Bracket fits to AS-Schneider Manifolds H, T and W as well as to Soft Seated Remote Mounted Manifolds Type R (see catalogue AS-4302 - Soft Seated Needles Valves and Manifolds). For Manifolds Type H a spacer is required, which is contained in the Mounting Bracket Kit AKM-UPS-H. The standard type AKM-UPS contains 2 M6 manifold/bracket bolts for Manifolds Type T and R as well as 2 M10 manifold/bracket bolts for Manifolds Type W. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 2 Hex Cap Screws M6 x12 (AKM-UPS-H requires instead the bolt M6x35)
- 2 Socket Head Cap Screws M10x14 (not for AKM-UPS-H)
- 1 Spacer (For AKM-UPS-H only)
| Datasheet |
Mounting Accessories by Armaturenfabrik Franz Schneider GmbH + Co. KG
In this category you will find comprehensive mounting accessories for valves and manifold blocks from the E-Series by Armaturenfabrik Franz Schneider GmbH + Co. KG. These accessories are designed to support secure, stable and ergonomic installation of manifold assemblies, transmitters and related components. They offer solutions for wall, panel and pipe mounting and provide proper clearance for ease of operation.
The range includes different types of mounting brackets and accessory kits tailored to varying installation requirements. Appropriate mounting accessories help technicians and installers to integrate manifold blocks into process environments and instrumentation lines in a professional manner.
Frequently Asked Questions about Mounting Accessories
What does mounting accessories include?
Mounting accessories include various types of mounting brackets and accessory kits for structured mounting of manifold blocks and transmitters.
What are mounting brackets used for?
Mounting brackets are used to securely fix manifold blocks to walls, panels or pipe structures and provide clearance for handle operation.
Which types of mounting brackets are available?
Various mounting brackets such as AKM-S, AKM-R, AKM-G, AKM-D, AKM-C, AKM-B, AKM-T and AKM-U types are available, each suited to specific mounting scenarios.:contentReference[oaicite:1]{index=1}
How do mounting brackets differ?
Some brackets are designed for wall and panel mounting, while others are specifically configured for 2″ pipe mounting, offering flexibility and accessibility.:contentReference[oaicite:2]{index=2}
What is an accessory kit according to DIN EN 61518 / IEC 61518?
An accessory kit contains essential fasteners such as bolts and sealing rings required for mounting manifold blocks to transmitters in accordance with DIN EN 61518 / IEC 61518.:contentReference[oaicite:3]{index=3}
Why is an accessory kit useful?
An appropriate accessory kit ensures that all necessary mounting hardware is available in the correct size and standard, making installation quick and reliable.:contentReference[oaicite:4]{index=4}
Can mounting accessories accommodate different valve types?
Yes, mounting brackets are designed to be compatible with various types of manifold blocks from the E-Series.
Are mounting brackets also suitable for pipe installations?
Yes, many mounting brackets are specifically designed for 2″ pipe installations, providing a stable solution in pipework environments.:contentReference[oaicite:5]{index=5}
How do mounting accessories improve maintenance?
They provide stable mounting and easier access to manifold functions, simplifying maintenance tasks.
What are the benefits of wall mounting?
Wall mounting enables secure positioning of manifold blocks on solid surfaces, creating free space around components for easier handling.
How do mounting accessories affect operational safety?
Proper mounting reduces mechanical stress and minimizes the potential for leaks, contributing to safer operation overall.
Are mounting brackets suitable for heavy manifold blocks?
Mounting brackets are designed to support even larger manifold blocks securely and reliably.
How do I select the appropriate mounting accessory?
Consider the intended mounting method (wall, panel or pipe), the type of manifold block and dimensional requirements to choose a suitable bracket or accessory kit.
Can multiple mounting accessories be combined?
Yes, depending on installation needs, multiple brackets or accessory kits can be combined to form a stable mounting solution.
How is the accessory installed?
Mounting accessories are installed using standard fasteners such as screws, nuts and sealing rings, which are included or separately available.
Are mounting brackets corrosion-resistant?
Mounting brackets are typically made from materials with high corrosion resistance to ensure durability in diverse environments.
For which industries are mounting accessories suitable?
They are suitable for process plants, energy production, chemical installations and any application requiring professional manifold block mounting.
Why is choosing the right accessory important?
Selecting the right mounting accessory ensures that manifold blocks and transmitters are securely mounted and operate reliably under field conditions.
