Pressure Gauge Valves without Test Connection by Armaturenfabrik Franz Schneider GmbH + Co. KG

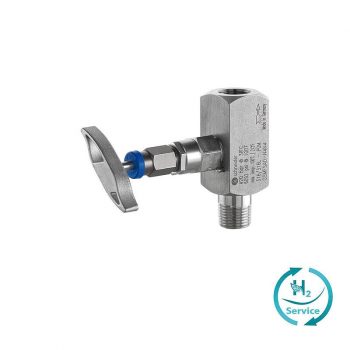

Pressure gauge valves without a test connection from Armaturenfabrik Franz Schneider GmbH + Co. KG are used to safely isolate pressure instruments such as gauges or pressure transmitters directly at the measuring point. They allow the instrument to be shut off from the process when required, improving safety and simplifying maintenance—without incorporating an additional test or calibration port.

This valve design is especially suitable where a compact, robust solution is needed and testing or calibration is performed using separate external test equipment. By avoiding extra ports, gauge valves without a test connection help keep installations clear and reduce the number of potential leak points.

Frequently Asked Questions about Pressure Gauge Valves without Test Connection

What is a pressure gauge valve without a test connection?

It is an isolation valve installed in front of a pressure instrument that does not include an additional test or calibration port.

What are these valves used for?

They are used to safely isolate the pressure instrument for maintenance, replacement or protection during process work.

What are the benefits of a valve without a test connection?

The design is compact and straightforward and reduces additional ports, which helps minimize potential leak paths.

When is a test connection not required?

A test connection is often unnecessary when calibration and testing are carried out via separate test points, adapters or external test equipment.

Can I still calibrate the instrument with this type of valve?

Yes, calibration is still possible, typically via external solutions such as separate test ports, adapters or test manifolds outside the valve.

Which instruments can be used with these valves?

They can be used with pressure gauges, pressure transmitters, pressure switches and other pressure instruments that need on-site isolation.

What is the valve’s function during operation?

It enables opening or closing the instrument line for control, instrument protection or safe isolation during service activities.

How do these valves improve safety?

They provide controlled isolation so the instrument can be depressurized and removed or serviced more safely.

Which connection types are common?

Threaded connections are common, matched to standard process and instrument interfaces. The exact thread type depends on the selected version and site standard.

Are these valves suitable for high pressures?

Depending on the model and design, they are suitable for typical industrial pressure ranges. Selection should always be based on the permitted operating pressure.

Which materials are used?

Typical materials include high-quality metals such as stainless steel to provide strength, corrosion resistance and long service life.

Which media are these valves suitable for?

Depending on materials and sealing selection, they can be used with gaseous and liquid media.

How does fewer ports affect tightness?

Fewer ports generally mean fewer potential leak points, supporting tightness when proper installation and sealing practices are applied.

Is operation different compared to valves with a test port?

Basic operation (open/close) is the same. Test and calibration activities are simply performed externally rather than via a port on the valve.

Can these valves be retrofitted into existing measuring points?

Yes, provided that connection dimensions, thread type, pressure rating and available installation space match the existing setup.

What should be considered when selecting a valve?

Key criteria are pressure rating, medium, connection standard, required body design and whether a test connection is actually needed in the application.

How do these valves support maintenance?

The isolation function allows the instrument to be depressurized locally, simplifying service and replacement and potentially reducing downtime.
