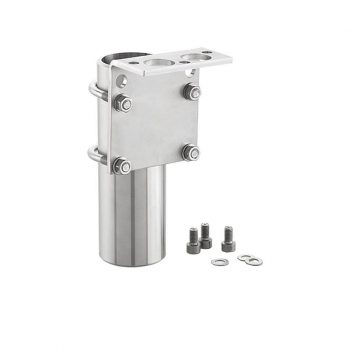

The Bracket fits to AS-Schneider Wafer Style Manifolds with Bottom Inlet Design. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 3 Socket Head Cap Screws M8x12
 Datasheet |
The Bracket fits to AS-Schneider E Series Manifolds Type D, W and 5 as well as to our F Series Manifolds Type S541/N541. The difference between AKM-D and AKM-C is just the thread type of the manifold/bracket bolts The standard bracket Type D requires M10 bolts and for the CoplanarTM Style Manifolds 3/8-16 UNC bolts are required. The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 2 Washers – 10.5
- 2 Socket Head Cap Screws M10x14 → AKM-D Type respectively
- 2 Socket Head Cap Screws 3/8-16 UNC x 5/8" → AKM-C Type
| Datasheet |
The Bracket fits to AS-Schneider Double Block & Bleed Manifolds Type C. The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolts
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
- 2 Socket Head Cap Screws M6x10
| Datasheet |

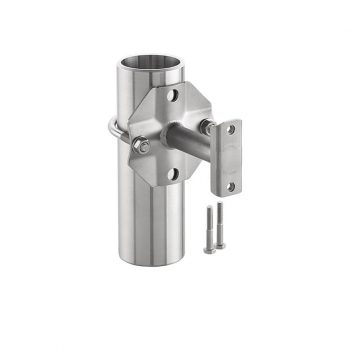

The Bracket fits to AS-Schneider Manifolds with 1 1/4" Flat Body - Type P and R (see Catalogue AS-2601 - E Series Valves and Manifolds). The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
- 2 Hex Cap Screws M6x40
| Datasheet |

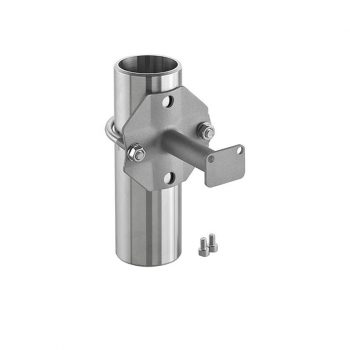

The Bracket fits to AS-Schneider Valves and Manifolds with 1 1/4" Square Valve Body (suitable for Type H, G, M and S). The bracket is designed for panel, wall and 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8,4
- 2 Hexagon Nuts M8
| Datasheet |

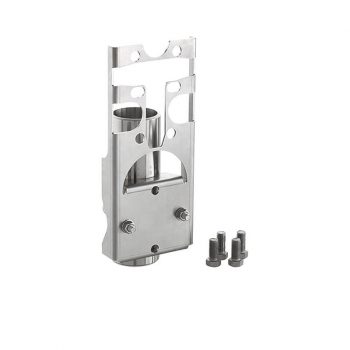

The Bracket fits to AS-Schneider Integral Manifolds – Traditional Style. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8.4
- 2 Hexagon Nuts M8
- 4 Hex Cap Screws 7/16-20UNF x 1"
| Datasheet |

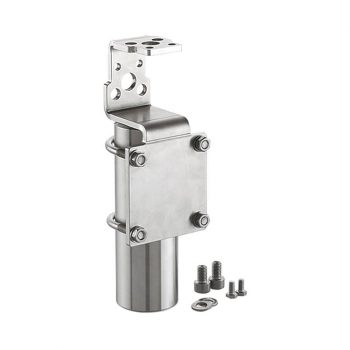

The Bracket fits to AS-Schneider Manifolds H, T and W as well as to Soft Seated Remote Mounted Manifolds Type R (see catalogue AS-4302 - Soft Seated Needles Valves and Manifolds). For Manifolds Type H a spacer is required, which is contained in the Mounting Bracket Kit AKM-UPS-H. The standard type AKM-UPS contains 2 M6 manifold/bracket bolts for Manifolds Type T and R as well as 2 M10 manifold/bracket bolts for Manifolds Type W. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 2 Hex Cap Screws M6 x12 (AKM-UPS-H requires instead the bolt M6x35)
- 2 Socket Head Cap Screws M10x14 (not for AKM-UPS-H)
- 1 Spacer (For AKM-UPS-H only)
| Datasheet |

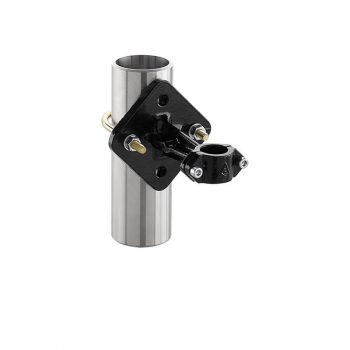

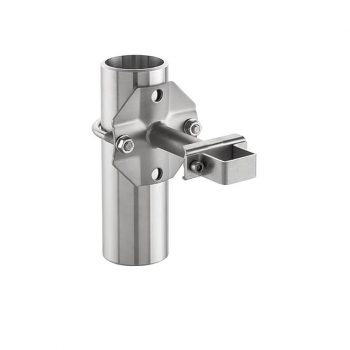

The Mounting Brackets fit to AS-Schneider Gauge Valves with shaft Ø 26mm - generally Type B Gauge Valves according to DIN 16270 - DIN 16272 but also Adapters according to DIN 16281. Mounting bracket type A and H are standardized in DIN 16281. The brackets are designed for panel, wall and 2" pipe mounting (except Type H - not suitable for 2" pipe mounting) and give full clearance for ease of handle operation. The standard extension is L = 100mm. Mounting Bracket Type H is also available with 60 and 160mm extension. The Mounting Bracket Kits for 2" Pipe Mounting are containing:
- 1 Mounting Bracket
- 1 'U' Bolt
- 2 Washers – 8.4
- 2 Hexagon Nuts M8
| Datasheet |

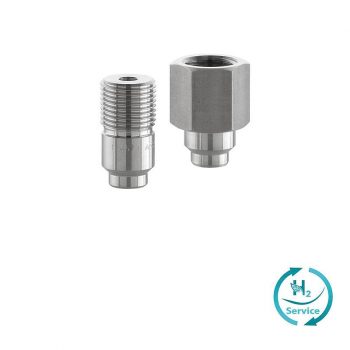

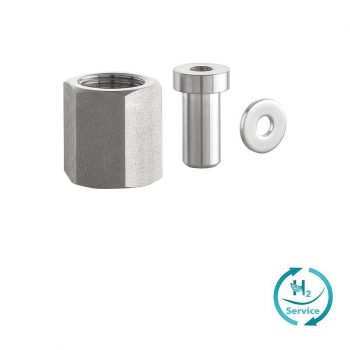

The components can be ordered separately or as Complete Kit (Part Number see table). The Nipples dia. 6 and 12 mm as well as the Union Nuts G 1/4 and G 1/2 are according to DIN 16284. The max. allowable (Working) Pressure (PS) is 250 bar (brass) respectively 400 bar (carbon steel and stainless steel).
| Datasheet |

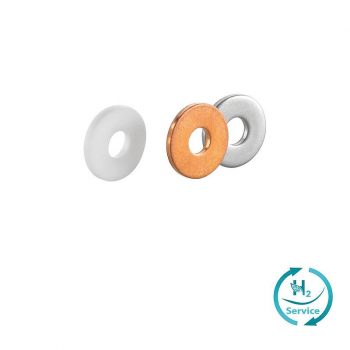

The below mentioned Sealing Washers are used for parallel male threads in accordance with EN 837-1. Grooved gaskets and corrugated gaskets are special types. Materials are not defined in EN 837-1. It is the responsibility of the user to ensure compatibility between the selected gasket ring material and the process requirements, such as pressure, temperature, and chemical compatibility.
| Datasheet |

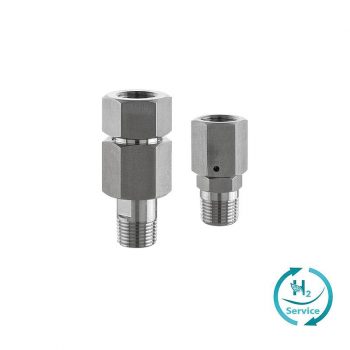

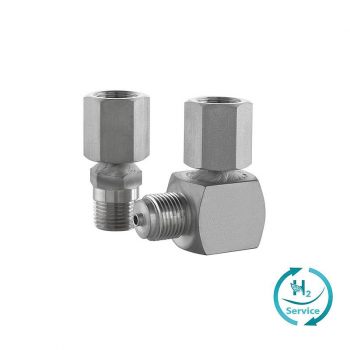

The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
| Datasheet |
The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
| Datasheet |

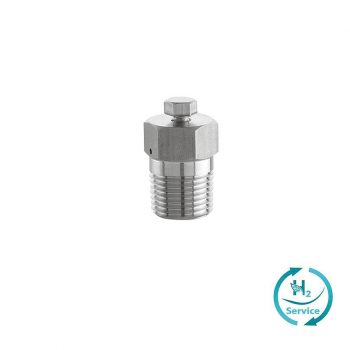

The below mentioned Vent Valves are available with Bleed Screw VS Type or T Handle VT Type.
| Datasheet |
Mounting Accessories for Gauge Valves by Armaturenfabrik Franz Schneider GmbH + Co. KG
Mounting accessories for gauge valves from Armaturenfabrik Franz Schneider GmbH + Co. KG include brackets, mounting angles and fastening components designed to ensure secure, organized and durable installation of gauge valves and pressure measuring instruments. They support proper mounting on walls, pipes, panels or frames and contribute significantly to the operational safety of the measuring point.
Using suitable mounting accessories reduces mechanical stress on the valve and measuring line while improving accessibility and readability of the instrument. The accessories are designed to match common valve designs and are suitable for both new installations and retrofits.
Frequently Asked Questions about Mounting Accessories for Gauge Valves
What are mounting accessories for gauge valves?
Mounting accessories include brackets, mounting angles and fastening kits used to securely fix gauge valves and instruments.
Why are mounting accessories required?
They provide mechanical stability, reduce vibration and relieve stress on the measuring line.
Where are mounting accessories typically used?
They are used on walls, piping, panels or structural frames to create accessible and stable measuring points.
What are the benefits of mounting brackets?
Mounting brackets stabilize the valve, improve accessibility and prevent mechanical stress at threaded connections.
Are accessories available for pipe mounting?
Yes, specific brackets and fastening kits are available for pipe-mounted installations.
Can different installation orientations be achieved?
Mounting accessories support both vertical and horizontal installations.
Are mounting accessories compatible with different valve types?
Many accessories are designed to be compatible with standard gauge valve designs.
Which materials are used?
Typical materials include coated metals, stainless steel and other corrosion-resistant alloys.
How do mounting accessories improve safety?
They minimize movement and vibration, reducing the risk of leaks and mechanical damage.
Is special tooling required for installation?
In most cases, standard hand tools are sufficient.
Can mounting accessories be retrofitted?
Yes, most accessories can be added to existing installations if space and mounting points allow.
How do mounting accessories support maintenance?
Secure and well-arranged installations make maintenance, inspection and calibration easier.
Are mounting accessories suitable for vibrating environments?
Yes, they help isolate valves and instruments from vibration.
Why is correct selection important?
Selecting the right mounting accessory ensures optimal compatibility between valve, instrument and installation environment.
