Multiport Gauge Valves by Armaturenfabrik Franz Schneider GmbH + Co. KG

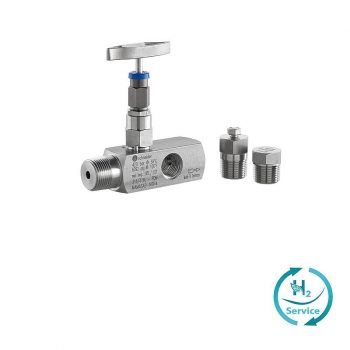

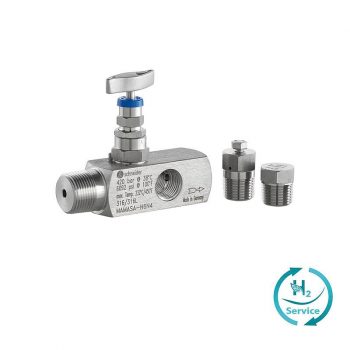

Multiport gauge valves from Armaturenfabrik Franz Schneider GmbH + Co. KG are designed for applications where multiple pressure instruments or additional connections are required at a single measuring point. By combining several ports in one compact valve body, they enable a clear, space-saving and efficient installation.

Integrating multiple connections into one valve reduces piping complexity, simplifies installation and minimizes potential leak paths. Multiport gauge valves are ideal for industrial measurement points where several gauges, transmitters or switches need to be connected in parallel or used flexibly.

Frequently Asked Questions about Multiport Gauge Valves

What is a multiport gauge valve?

A multiport gauge valve is an isolation valve with multiple outlet ports that allows several pressure instruments to be connected at a single measuring point.

What are multiport gauge valves used for?

They are used when multiple pressure instruments or additional connections are required on one process line.

What are the advantages of multiport valves?

They save space, reduce piping effort, simplify installation and lower the number of potential leak points.

How many ports do these valves typically have?

Typical designs include three outlet ports, with additional configurations possible depending on requirements.

Can multiple instruments be operated simultaneously?

Yes, multiple gauges or transmitters can be connected and operated in parallel if required by the application.

Are multiport valves suitable for testing purposes?

Yes, additional ports can be used for testing, comparison or calibration tasks.

How can these valves be installed?

They can be installed in vertical or horizontal orientations and integrated into existing measurement setups.

Are multiport gauge valves suitable for high pressures?

Depending on the design, they are suitable for typical industrial pressure ranges, including high-pressure applications.

Which materials are commonly used?

Common materials include high-quality metals such as stainless steel for strength, corrosion resistance and durability.

Which media can be handled?

Depending on material and sealing selection, they can be used with gaseous and liquid media.

Does having multiple ports affect tightness?

By consolidating connections into one valve body, external fittings are reduced, which can improve overall tightness.

Are multiport valves easy to maintain?

The compact design and accessible ports make maintenance and servicing easier.

Can unused ports be closed?

Yes, unused ports can be sealed to adapt the valve to specific application needs.

How do multiport valves differ from standard gauge valves?

Unlike standard gauge valves, multiport valves provide several connection options within a single component.

Can they be retrofitted?

Yes, they can be retrofitted into existing measuring points if connection standards and space allow.

How do they improve flexibility at measuring points?

They allow instruments to be added, replaced or reconfigured without major piping changes.

Why are multiport valves useful in complex systems?

They help distribute pressure signals to multiple instruments efficiently in complex measurement systems.

What should be considered when selecting a multiport valve?

Key factors include the number of required ports, pressure rating, process medium, connection type and installation orientation.
