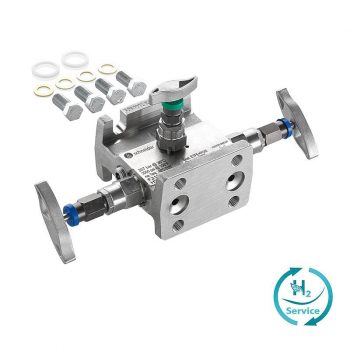

AS-Schneider Soft Seated Direct Mount Manifolds H3A/H3S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connection (process connection), as standard, is flanged style. The standard 3 Valve Manifolds H3A/H3S Type have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize and Vent Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
 Datasheet |

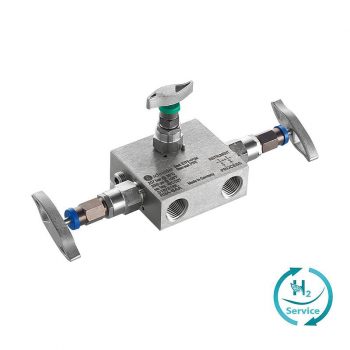

AS-Schneider Soft Seated Remote Mounted Manifolds R3A/R3S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds R3A/R3S Type have no vent connections. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
| Datasheet |

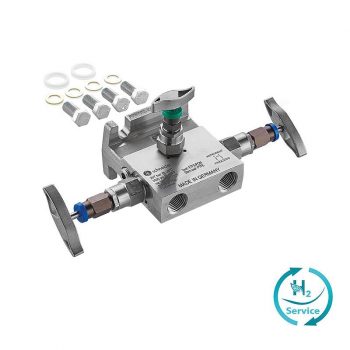

AS-Schneider Soft Seated Direct Mount Manifolds T3A/T3S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds T3A/T3S Type have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
| Datasheet |

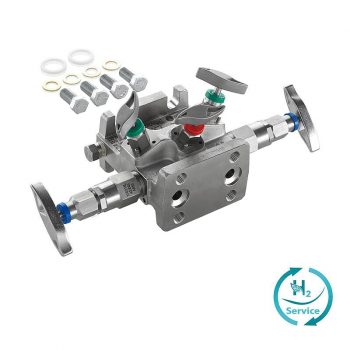

AS-Schneider Soft Seated Direct Mount Manifolds H5A/H5S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connection (process connection), as standard, is flanged style. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize and Vent Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design valve seat of the Isolate Valves.
| Datasheet |

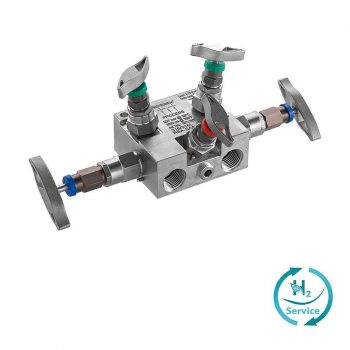

AS-Schneider Soft Seated Remote Mounted Manifolds R5A/R5S Type are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize and Vent Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
| Datasheet |

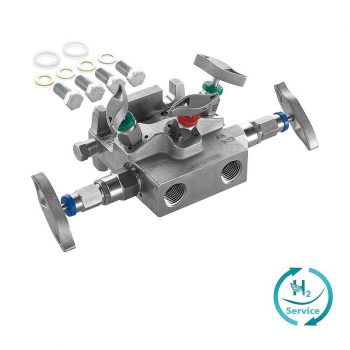

AS-Schneider Soft Seated Direct Mount Manifolds T5A/T5S Type are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes. Bore Size: - Isolate Valves - 1/4" (6.35 mm) or 3/8" (9.5 mm) - Equalize and Vent Valves - 0.138" (3.5 mm) The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
| Datasheet |

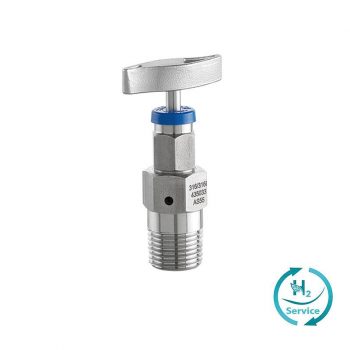

AS-Schneider Bleeder Valves VB Type are available with a lot of options. The valve head unit can be either O-Ring Sealed or PTFE Packed and the Valve Seats are available with a choice of soft seat materials but are also available Metal Seated - see also below Ordering Information. The Soft Seats are field replaceable.
| Datasheet |

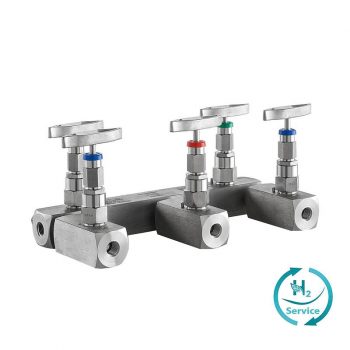

AS-Schneider Chart Recorder Manifolds are designed for the calibration of chart recorders (To measure flow, static pressure and temperature) for example on natural gas pipelines. The inlet connections (process connection) as well as the vent connection, as standard, are 1/4 NPT female threaded. The test/calibration ports 1/4 NPT female are plugged. The Chart Recorder Manifolds are available as 3-valve or 5 valve manifold, see details below. Bore Size: 1/4" (6.35 mm) - Roddable
| Datasheet |

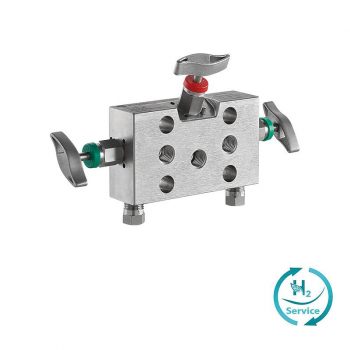

AS-Schneider Soft Seated Direct Mount Equalizer Manifolds are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/4 or 1/2 NPT female threaded and the vent connection is 1/4 NPT female. The test/calibration ports 1/4 NPT female are plugged. Bore Size: - Process to Instrument Connection – Bore Size 3/8" (9.5 mm) - Roddable - Equalize and Vent Valves – Bore Size 0.138" (3.5 mm)
| Datasheet |
All valves and manifolds as well as our Double Block & Bleed Piping Ball Valves are suitable for up to 100% hydrogen use. In other words, our instrumentation valves and process valves can also be used safely in natural gas applications with, for example, a 20% hydrogen blending. This feature is of particular interest to natural gas plant operators and gas network operators who want to convert their natural gas pipelines for hydrogen.
| Datasheet |

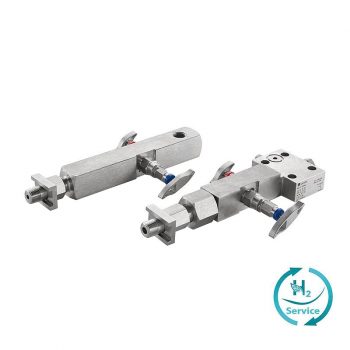

AS-Schneider U2F/U2T Type Manifolds are designed for close coupled installations to ultrasonic flow meters. AS-Schneider is providing 2 types with regard to the instrument connection, a flanged style and a threaded style. Both types are Multiport Types (3 outlet ports) - Details see below drawings. The process connections, as standard, are 1/2 NPT female threaded. Both manifolds styles are supplied with a stabilizer shoe. Bore Size: - Isolate Valves - 1/4" (6.35 mm) - Roddable - Vent Valves - 0.138" (3.5 mm)
| Datasheet |

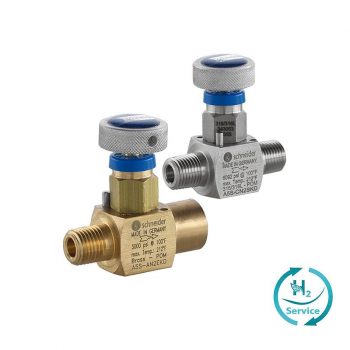

AS-Schneider Mini Valves have a rugged design despite its small size. The inlet and outlet connections, as standard, are 1/4 NPT threaded. The valves are available with Double O-Ring Stem Seal or PTFE packed. The Soft Seats are field replaceable. Bore Size: Bore Size 0.138" (3.5 mm)
| Datasheet |
The Bracket fits to AS-Schneider Manifolds H, T and W as well as to Soft Seated Remote Mounted Manifolds Type R (see catalogue AS-4302 - Soft Seated Needles Valves and Manifolds). For Manifolds Type H a spacer is required, which is contained in the Mounting Bracket Kit AKM-UPS-H. The standard type AKM-UPS contains 2 M6 manifold/bracket bolts for Manifolds Type T and R as well as 2 M10 manifold/bracket bolts for Manifolds Type W. The bracket is designed for 2" pipe mounting and gives full clearance for ease of handle operation. The Mounting Bracket contains:
- 1 Mounting Bracket
- 2 'U' Bolts
- 4 Washers – 8.4
- 4 Hexagon Nuts M8
- 2 Hex Cap Screws M6 x12 (AKM-UPS-H requires instead the bolt M6x35)
- 2 Socket Head Cap Screws M10x14 (not for AKM-UPS-H)
- 1 Spacer (For AKM-UPS-H only)
| Datasheet |

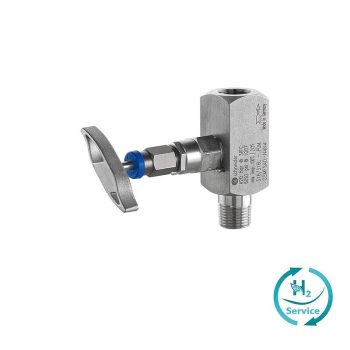

AS-Schneider E Series Soft Seated Gauge Valves G Type are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard type GS is equipped with a bleed screw. The GA Type is provided with a vent / test port, as standard 1/4 NPT Female. A pipe plug is installed in this port by default. Bore Size: 1/4" (6.35 mm) The valves are fully roddable due to the Cone Design Valve Seat.
| Datasheet |
AS-Schneider Soft Seated Hand Valves are available with a lot of options. HA Type Hand Valves are bi-directional. HX Type Hand Valves also, but the inlet is defined by the extension. Bore Size: 1/4" (6.35 mm) The valves are fully roddable due to the Cone Design Valve Seat.
| Datasheet |

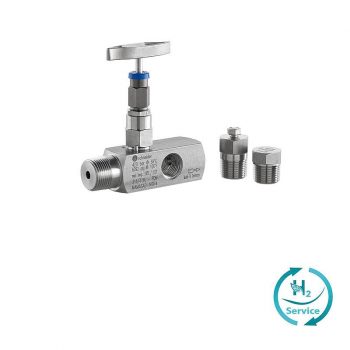

AS-Schneider E Series Soft Seated Multiport Gauge Valves M Type are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard types are provided with 3 female outlet ports and are therefore suitable for vertical or horizontal installations. Bore Size: 1/4" (6.35 mm) The valves are fully roddable due to the Cone Design Valve Seat.
| Datasheet |
The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
| Datasheet |
The Swivel Gauge Adapters enable the easy positioning of the pressure instrument in any direction through 360°. The dimensions shown apply only to the illustrated components – if you need the dimensions for your individual type please contact the factory.
| Datasheet |
The below mentioned Vent Valves are available with Bleed Screw VS Type or T Handle VT Type.
| Datasheet |
Soft-Seated Valves and Manifold Blocks by Armaturenfabrik Franz Schneider GmbH + Co. KG
Soft-seated valves and manifold blocks from Armaturenfabrik Franz Schneider GmbH + Co. KG are designed for instrumentation and process applications where high tightness and reliable shut-off are essential. The soft seat design ensures very low leakage rates, smooth operation and dependable sealing even under varying pressure and process conditions.
The product range includes soft-seated isolation valves, gauge valves, multiport valves and manifold blocks that combine several valve functions within a compact assembly. These components are suitable for in-line installation as well as direct mounting to pressure transmitters and other measuring instruments.
Frequently Asked Questions about Soft-Seated Valves and Manifold Blocks
What does “soft seat” mean in valve design?
A soft seat refers to a valve design that uses an elastic sealing material to achieve enhanced tightness and reduced leakage.
Where are soft-seated valves and manifolds used?
They are used in applications requiring high sealing performance, such as pressure measurement and control systems.
What are the advantages of soft-seated valves?
They offer improved tightness, lower operating torque and reliable shut-off.
Which types of soft-seated valves are available?
Available types include isolation valves, gauge valves, multiport valves and manifold blocks with integrated functions.
What is a soft-seated manifold block?
A soft-seated manifold block integrates multiple valves in one body, enabling compact and clearly arranged measurement installations.
Where are soft-seated manifold blocks typically installed?
They are commonly installed in pressure measurement and control systems, either in-line or directly on pressure transmitters.
How do soft-seated valves differ from metal-seated valves?
Soft-seated valves generally provide better sealing performance, while metal-seated valves are more suitable for very high temperatures.
Are soft-seated valves suitable for high pressure?
Yes, many soft-seated valves and manifold blocks are designed for industrial high-pressure applications.
How does the soft seat affect maintenance?
The sealing elements can be replaced if necessary, simplifying maintenance and reducing downtime.
Can multiple valve functions be combined?
Yes, manifold blocks allow several soft-seated valves to be combined in one compact unit.
How does a soft seat influence leakage rates?
The elastic sealing material enables very low leakage rates.
Are different soft seat materials available?
Depending on pressure, temperature and medium, different soft seat materials can be selected.
How do I choose the right soft-seated valve?
Selection depends on pressure rating, process medium, connection type and required valve functions.
