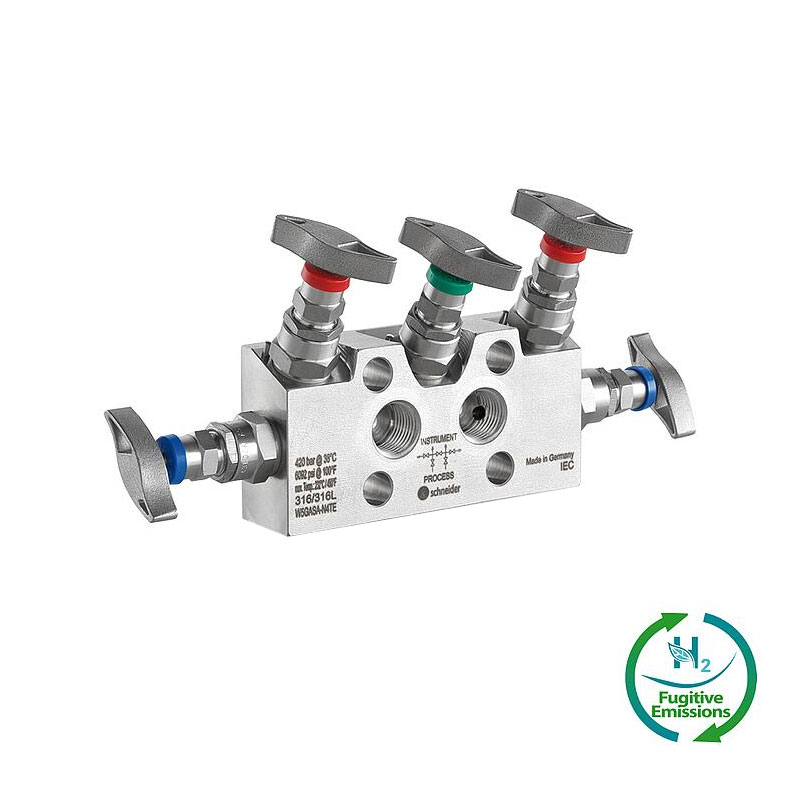

5 Valve Manifolds W5GA Type
Manifolds with Vent Ports on Bottom Face

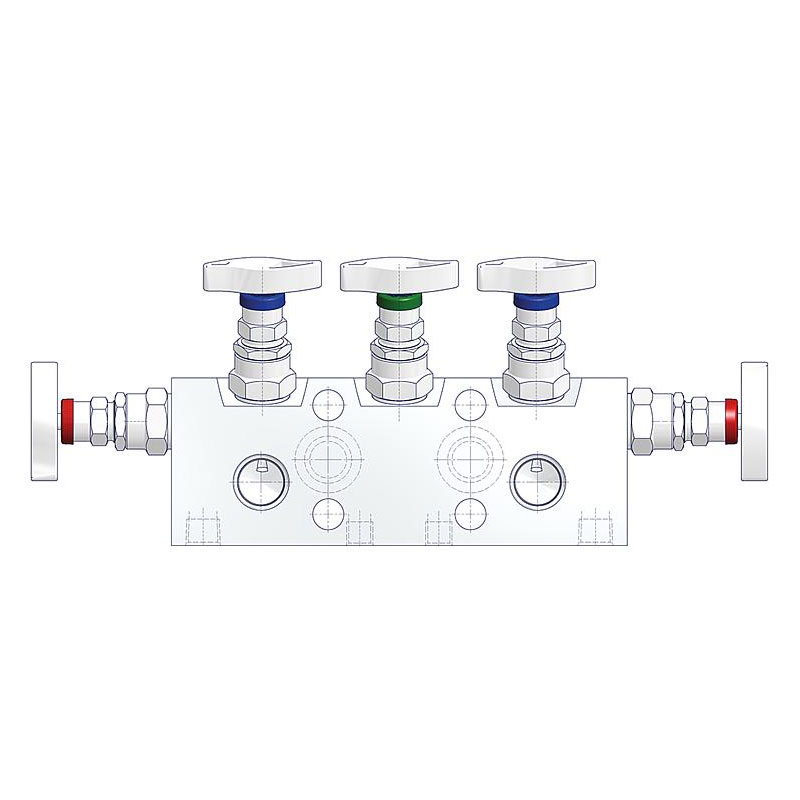

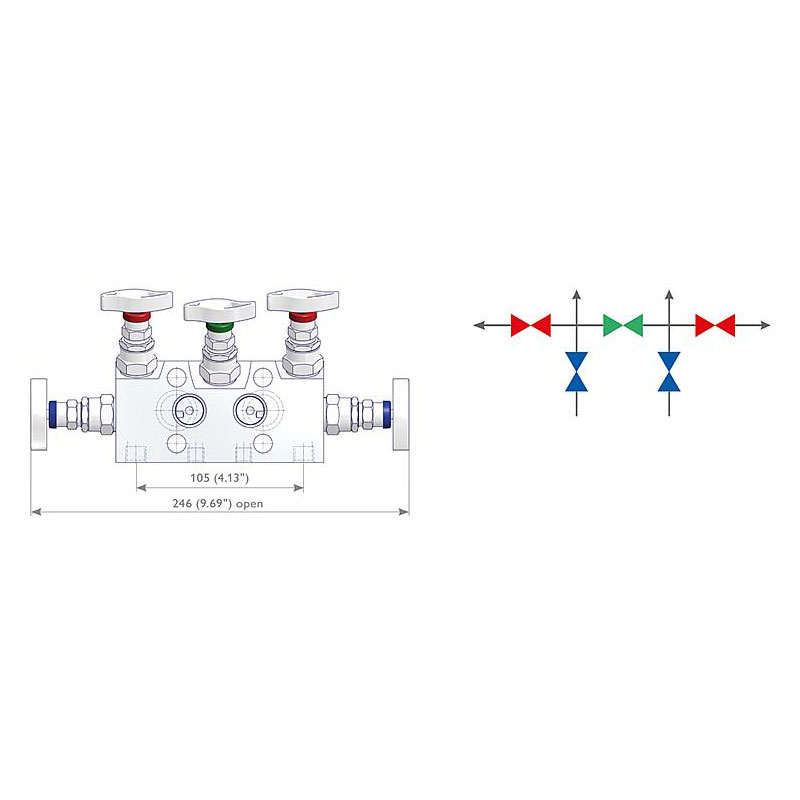

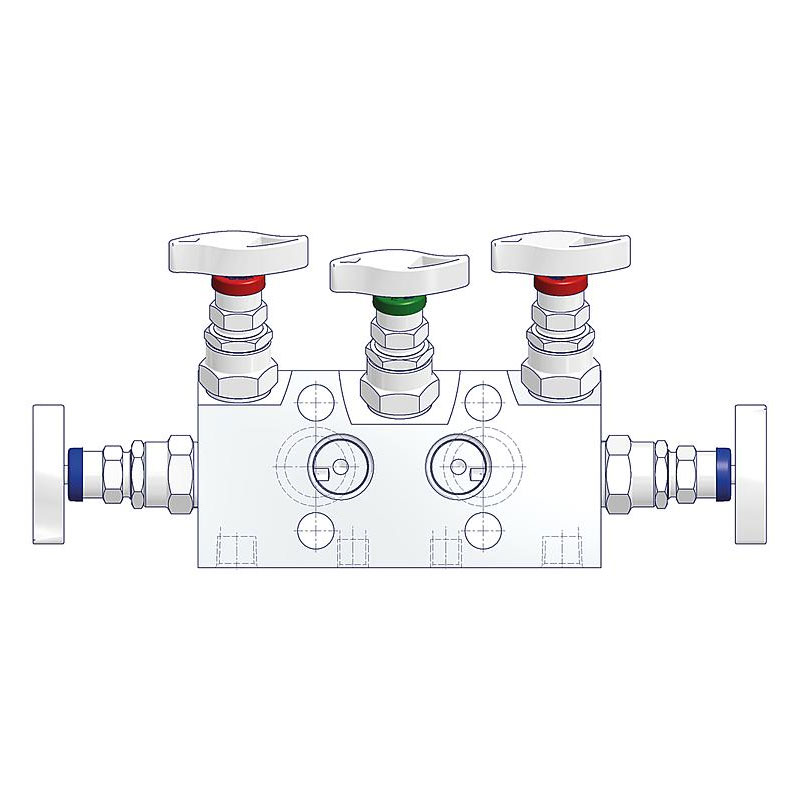

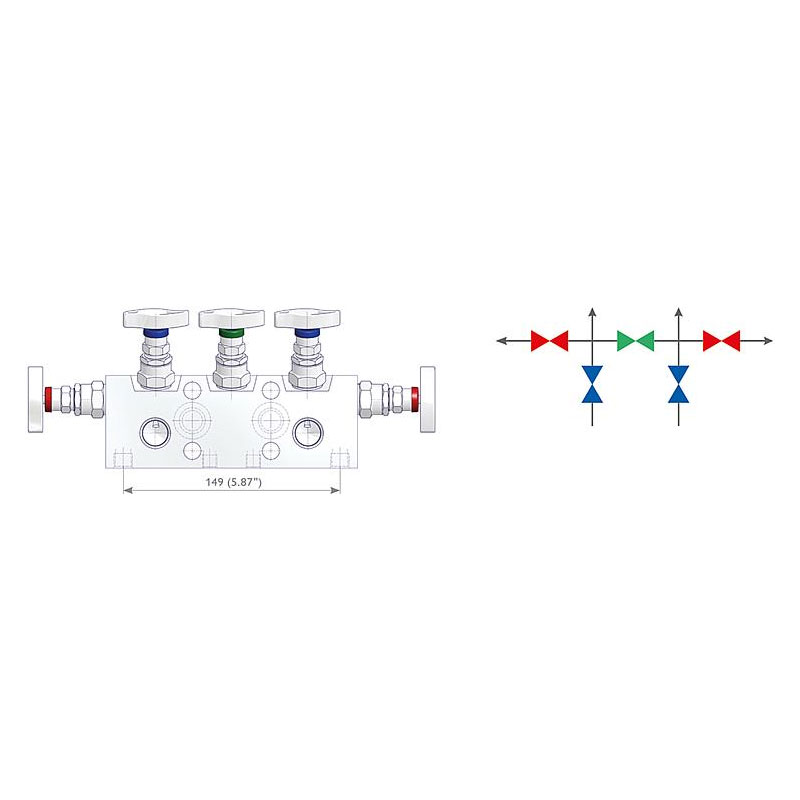

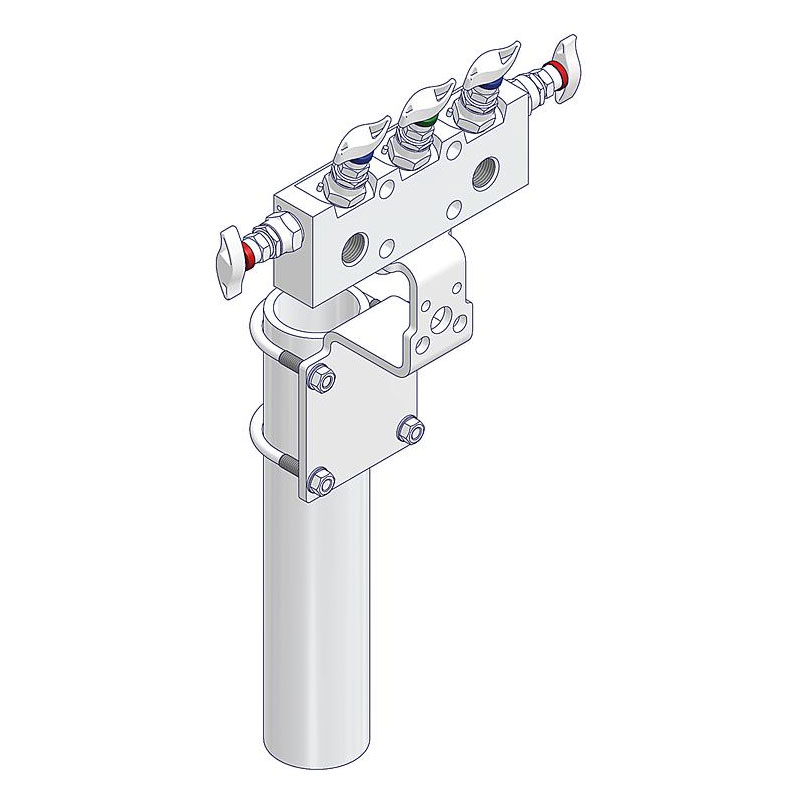

AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The vent ports 1/4 NPT female are located on bottom face. Pipe plugs are not installed as standard. The IEC 61518-B manifold design is more compact compared to the IEC 61518-A design, but is only suitable to the AKM-U Type Mounting Bracket.
 Datasheet |
