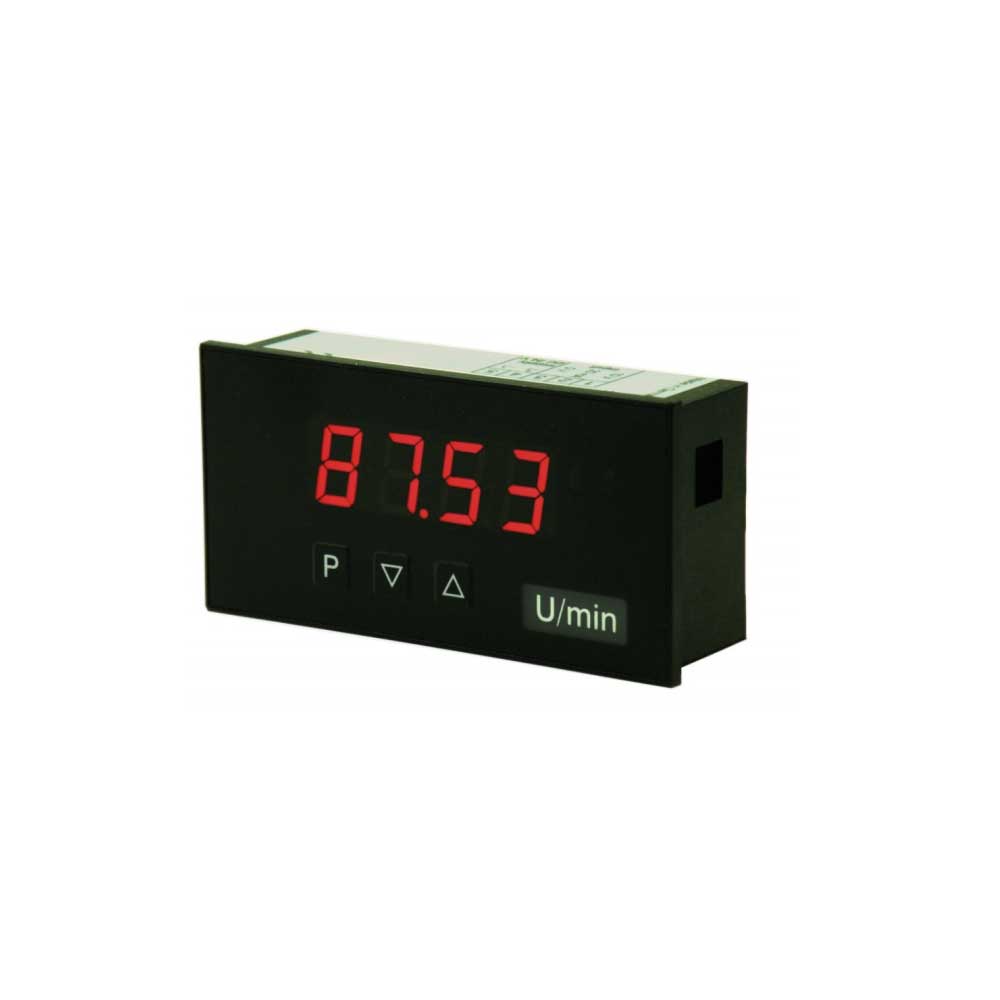

DatasheetThe IM1-1VR4B.0005.570xD is a 4-digit meter for length/level measurement via potentiometer >1 kOhm up to <1000 kOhm and the visual limit value monitoring via the display. Here, the configuration happens via three front keys or via the optional PC-software PM-TOOL. Selectable software functions, a direct limit value adjustment in operating mode and the minimal installation depth of only 38 mm complete the solid device concept.
| Housing | 96 x 48 mm |
| Display | 4-digit 14 mm digit height Colour: red, green, orange or blue display |
| Range displayed | -1999 to 9999 |
| Operation | front panel keyboard protection class IP65 |
| Input | Potentiometer 0…100% span >1 kOhm….<1000 kOhm |
| Analogue Output | – |
| Switch point | – |
| Interface | – |
| Power supply | 230 VAC 24 VDC +/-10% galvanic isolated Other voltage supplies on demand! |
| Sensor supply | – |
| Software properties |
|
