Mounting Bracket Kit AKM-T Type


The Bracket fits to AS-Schneider Integral Manifolds – Traditional Style. The bracket is designed for 2″ pipe mounting and gives full clearance for ease of handle operation.

The Mounting Bracket contains:

  • 1 Mounting Bracket
  • 1 ‘U’ Bolt
  • 2 Washers – 8.4
  • 2 Hexagon Nuts M8
  • 4 Hex Cap Screws 7/16-20UNF x 1″
Datasheet
Add to your Quote List






Montagewinkel Typ AKM T 1

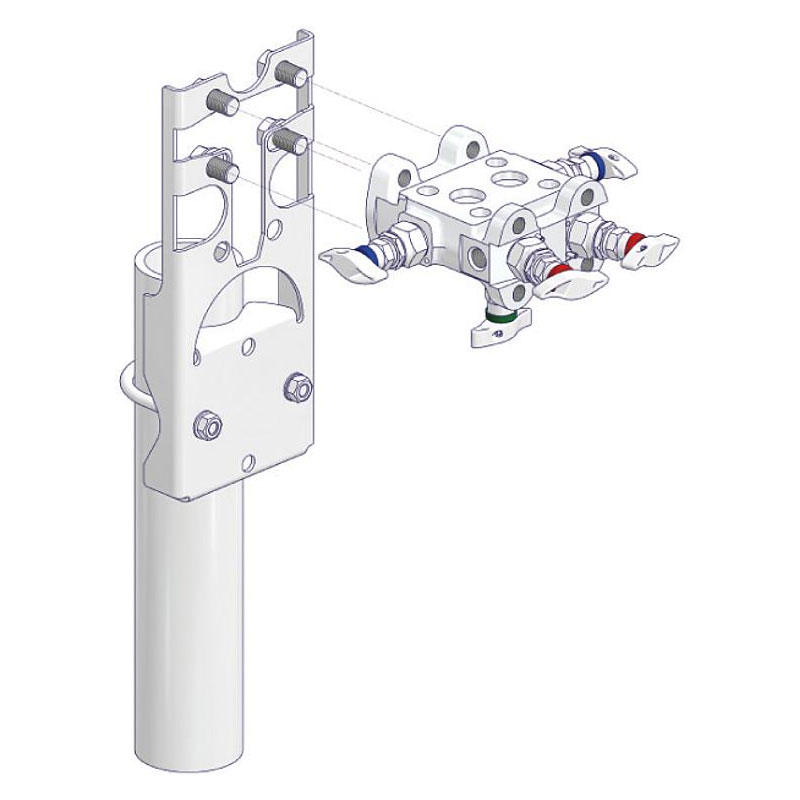

Montagewinkel Typ AKM T 2

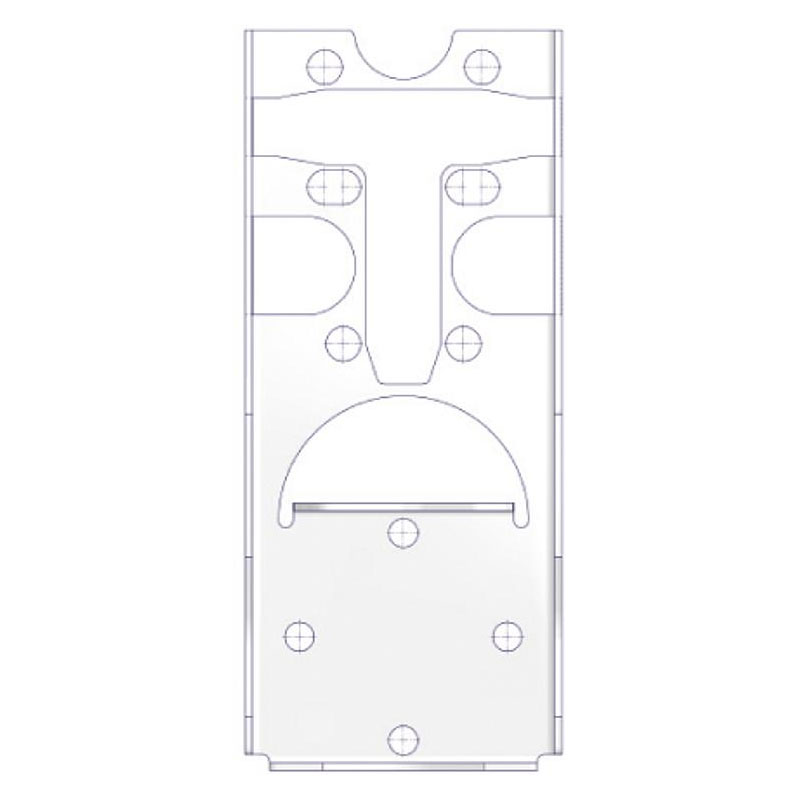

Montagewinkel Typ AKM T 3
Montagewinkel Typ AKM T 4
Montagewinkel Typ AKM T 5
Montagewinkel Typ AKM T 6
Technical advice: 03303 / 50 40 66

Technical advice for this product
