Mounting Bracket Kit AKM-B Type


The Bracket fits to AS-Schneider Wafer Style Manifolds with Bottom Inlet Design. The bracket is designed for 2″ pipe mounting and gives full clearance for ease of handle operation.

The Mounting Bracket contains:

  • 1 Mounting Bracket
  • 2 ‘U’ Bolts
  • 4 Washers – 8.4
  • 4 Hexagon Nuts M8
  • 3 Socket Head Cap Screws M8x12
Datasheet
Add to your Quote List

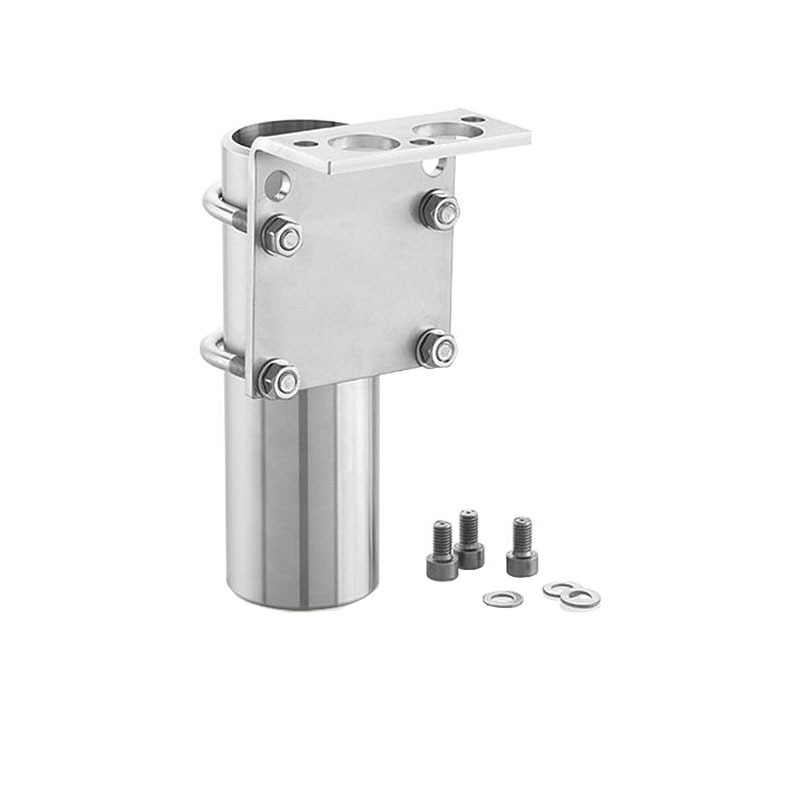

Montagewinkel Typ AKM B 1

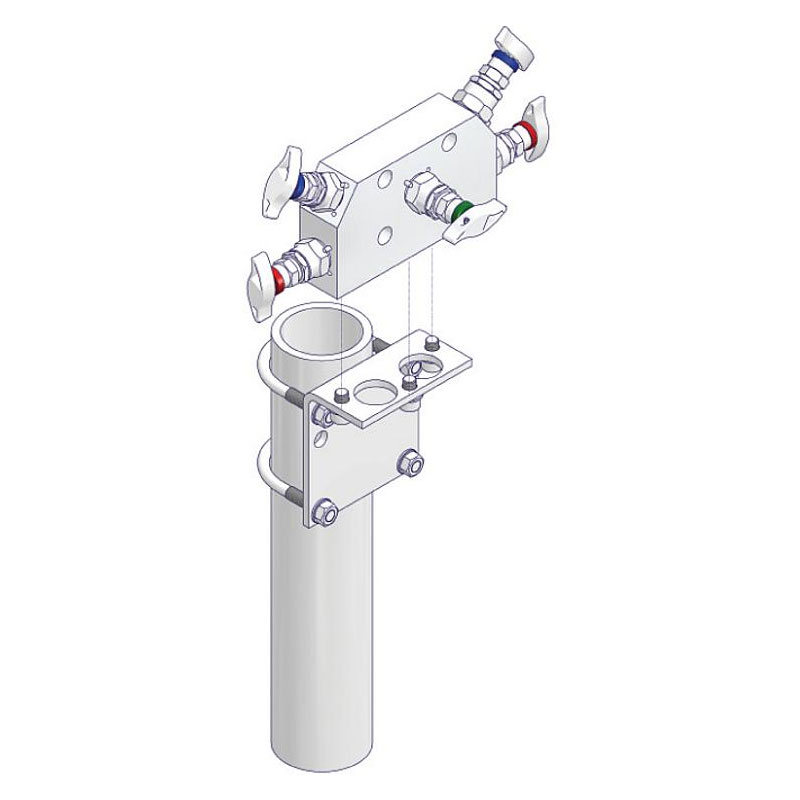

Montagewinkel Typ AKM B 2
Montagewinkel Typ AKM B 3

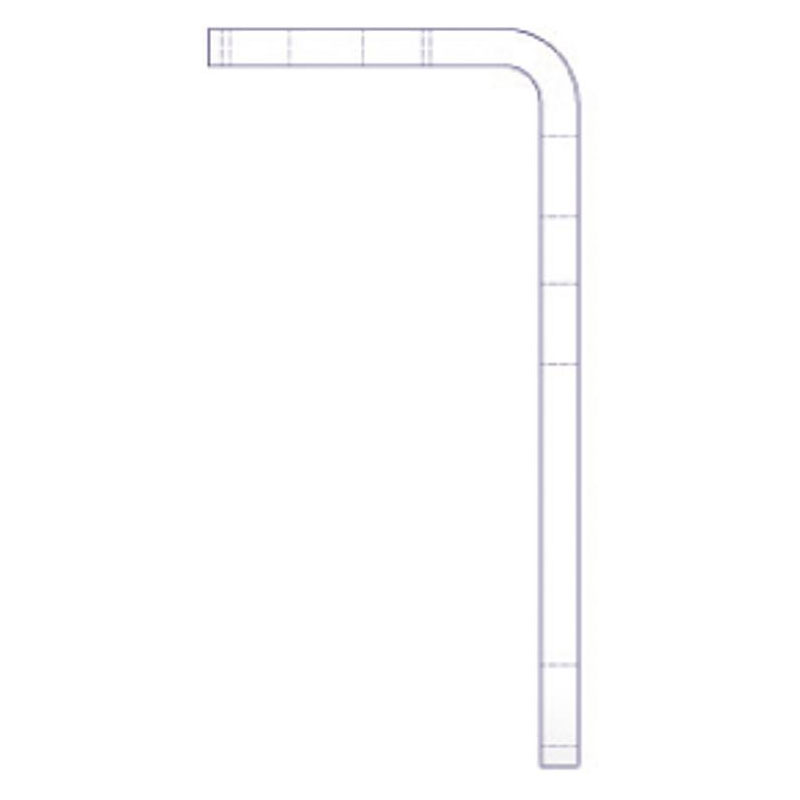

Montagewinkel Typ AKM B 4

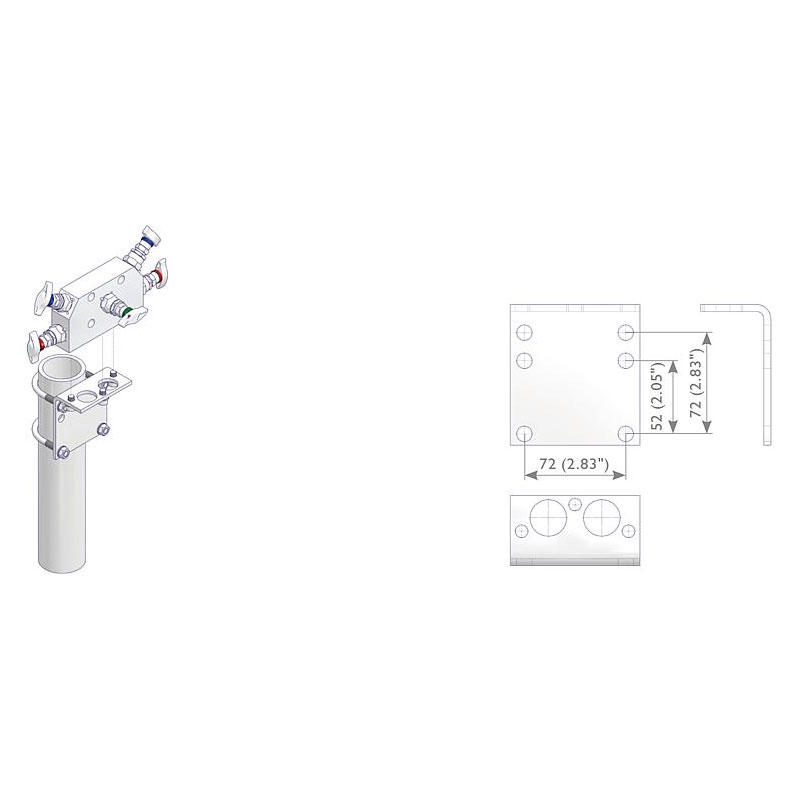

Montagewinkel Typ AKM B 5

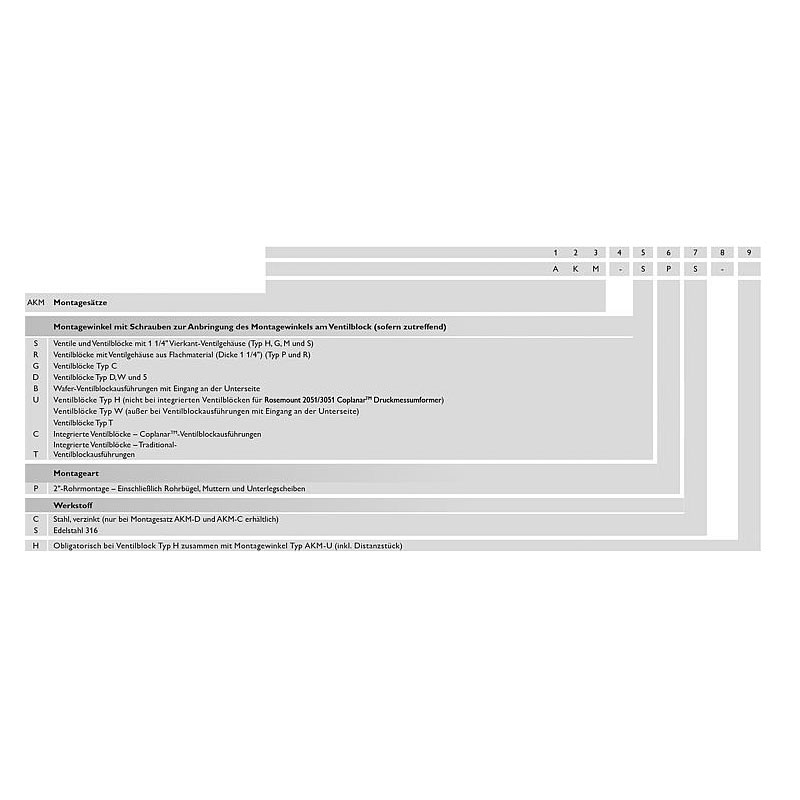

Montagewinkel Typ AKM B 6
Technical advice: 03303 / 50 40 66

Technical advice for this product
