It’s Geniius

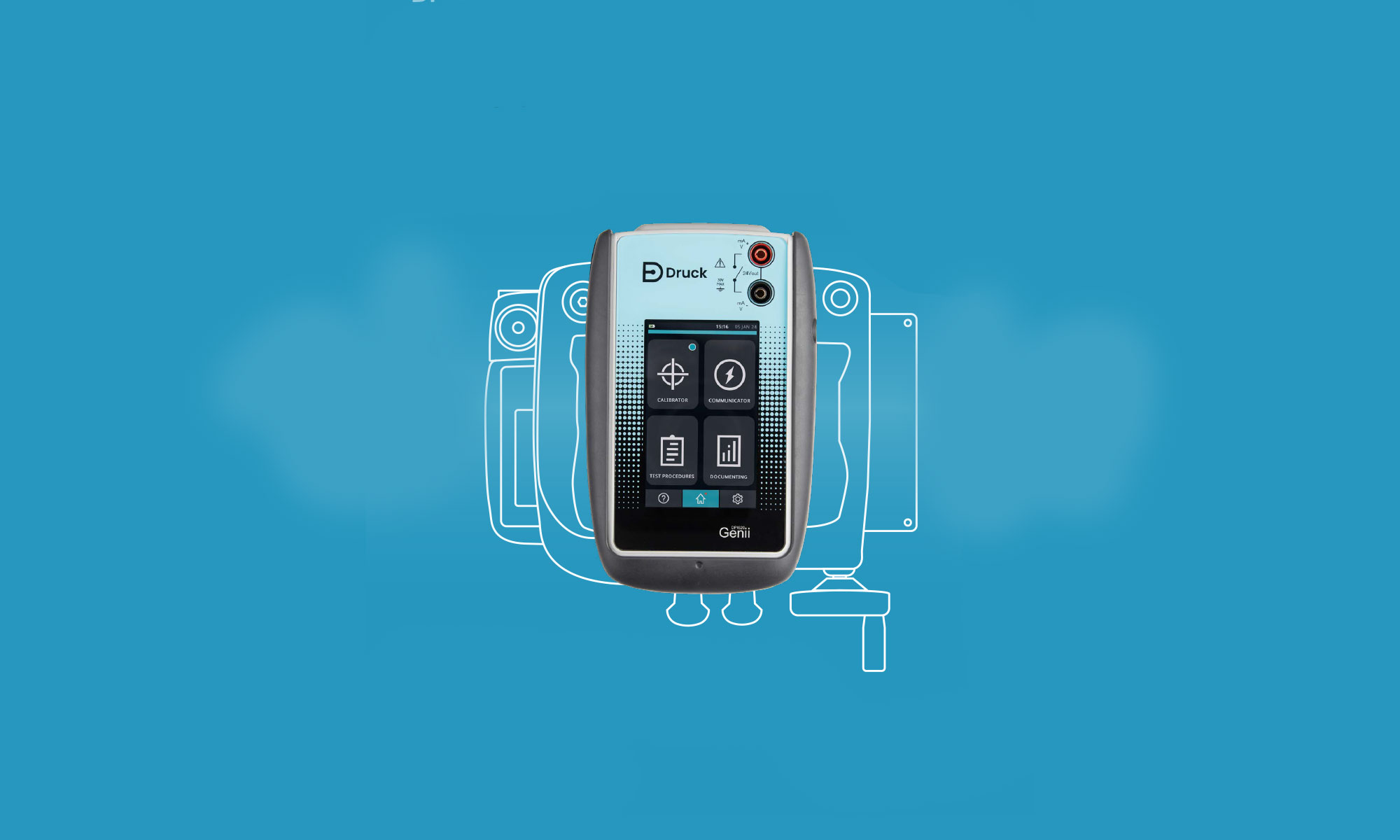

The DPI620G series from Druck is an advanced, modular multifunction calibrator and optional HART/Foundation Fieldbus communicator with state-of-the-art pressure measurement and generation. Building on over half a century of market-leading pressure expertise, the DPI620G is at the forefront of modular, portable calibrator offerings and forms the core of the Genii Advanced Modular Calibration System.
With ATEX, IECEx, and ETL certified intrinsically safe versions for use in hazardous areas, the DPI620G platform is the preferred choice for numerous operators worldwide.
The DPI620G provides simultaneous measurement and source functions for the setup, testing, and calibration of most types of process instruments, including transmitters, transducers, gauges/indicators, switches, proximity sensors, counters, RTDs, thermocouples, and valve positioners.
Features
- 14 models for safe areas and 5 models for hazardous areas to meet budget and application requirements, ranging from a simple electrical calibrator to a multifunction calibrator with HART, ProfiBus, and Fieldbus.
- Can be used with pressure modules and a module carrier or a pressure base station.
- High-resolution touchscreen and user interface supporting gestures and swipes for a flatter menu structure and easier operation.
- HART and Foundation Fieldbus digital communication with full device description libraries, internal modems, and free upgrades.
- Autonomous calibration assistant for storing procedures and calibration data.
- Data acquisition from up to six channels simultaneously.
- Comes with a freemium license for the 4Sight2 calibration software.
New | DPI620G-H Modular HART Communicator
We are pleased to announce the introduction of the modular HART Communicator DPI620G-H into the Genii Advanced Modular Calibration System.
The introduction of the DPI620G-H into the Genii Advanced Modular Calibration System offers a cost-effective HART communicator with free access to the latest DD library.
New | DPI620G-B Modular Electrical Calibrator
We are pleased to announce the release of the modular electrical calibrator DPI620G-B in the Genii Advanced Modular Calibration System.
The introduction of the DPI620G-B into the Genii Advanced Modular Calibration System offers cost-effective electrical measurement for pressure calibrations when used with Druck’s pressure generation stations, module carriers, and pressure modules.
- A dedicated portable hybrid pressure calibrator (DPI620G-B + PV624 + PM620)
- A dedicated portable pressure calibrator capable of generating pressures up to 100 bar pneumatically (DPI620G-B + PV622 + PM620)
- A dedicated portable pressure calibrator capable of generating pressures up to 1,000 bar (DPI620G-B + PV623 + PM620)
- A fully automated workshop calibration system (DPI620G-B + Rack Mount Kit + PACE Controller + 4Sight2)
DPI 620 GENII Overview
DPI 620 GENII Model Overview
| Model | Description | Bluetooth Connectivity | Pressure Measurement via PM620 & MC620 PV62X | USB Sensors: Pressure & RTD | IDOS Pressure Sensors | Measurement mA, mV, V | Source mA | 24/28V Loop Power | Source mV, V | Measurement/Source Frequency | Measurement/Source Resistance | Measurement/Source Temp (RTD/TC) | Multi-channel for Simultaneous Measurement/Source | External AC Voltage Probe | HART | Profibus | Fieldbus |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DPI620G-B | Electrical Calibrator | • | • | • | • | ||||||||||||
| DPI620G-BI | Electrical Calibrator with Bluetooth | • | • | • | • | ||||||||||||
| DPI620G-H | Electrical Calibrator & HART Communicator | • | • | • | • | ||||||||||||
| DPI620G-H-BI | Electrical Calibrator & HART Communicator with Bluetooth | • | • | • | • | • | |||||||||||
| DPI620G-L | Multifunction Calibrator | • | • | • | • | • | • | • | • | • | • | ||||||
| DPI620G-L-BI | Multifunction Calibrator with Bluetooth | • | • | • | • | • | • | • | • | • | • | • | |||||
| DPI620G | Multifunction Calibrator & HART Communicator | • | • | • | • | • | • | • | • | • | • | • | |||||
| DPI620G-BI | Multifunction Calibrator & HART Communicator with Bluetooth | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| DPI620G-PB | Multifunction Calibrator & HART Communicator with Profibus | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| DPI620G-PB-BI | Multifunction Calibrator & HART Communicator with Profibus & Bluetooth | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| DPI620G-FF | Multifunction Calibrator & HART Communicator with Fieldbus | • | • | • | • | • | • | • | • | • | • | • | • | ||||
| DPI620G-FF-BI | Multifunction Calibrator & HART Communicator with Fieldbus & Bluetooth | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| DPI620G-FFPB | Multifunction Calibrator & HART Communicator with Profibus & Fieldbus | • | • | • | • | • | • | • | • | • | • | • | • | • | |||
| DPI620G-FF-PB-BI | Multifunction Calibrator & HART Communicator with Profibus, Fieldbus & Bluetooth | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
The DPI620G units are supplied with a rechargeable lithium-polymer battery P/N IO620-BATTERY, a universal power adapter/charger P/N IO620-PSU, a P/N IO620-AC 300 VAC true RMS measurement probe (the IO620-AC is not supplied with the DPI620G-B or DPI620G-H models), test leads, a calibration certificate, and a quick reference guide.
The DPI620G-B/H models only have multifunction capability when they are measuring/generating pressure or working with the USB-RTD.
New | PV624 Portable Hybrid Pressure Controller
for DPI620 Genii
The PV624 is a portable hybrid pressure control station that combines the advantages of manual pressure generation and fully automatic pressure control.
Using the PV624 with a DPI620G electrical calibrator and interchangeable PM620/PM620T pressure modules creates a uniquely powerful, flexible, standalone portable pressure calibrator.
The PV624 Hybrid Pressure Controller offers a simple and quick method for accurately maintaining pressure setpoints. The hybrid pressure control also supports large test volumes and long battery life.
Features
- On-site selection of the pressure range from the GENii PM620/PM620T pressure module family.
- Built-in barometer for accurate pseudo-pressure measurement.
- Hybrid pressure generation and control from -0.9 barg (-13 psi) to 20 barg (300 psi).
- Automatic selection between manual pressure generation, automatic pressure generation, or pressure venting with large test volume capacity.
- Fully automatic pressure generation and control for precise setpoint maintenance.
- Minimization of on-site leakage with quick-connect pressure adapters.
- Physical or *Bluetooth® wireless connection to a DPI620G electrical calibrator.
- On-site replacement of the rechargeable battery pack.
- Autonomous calibration assistant for storing procedures and calibration data.
Part of the only truly modular calibration system
more text
Fast and efficient printing with exceptional stability under high pressure
Combination of manual printing and automatic control technology
Product Features
Range and Performance
| Parameter | Value |
|---|---|
| Hybrid Pressure Control Range | -0.9 barg (-13 psig) to 20 barg (300 psig) |
| Compatible PM620 & PM620T (FS) Pressure Ranges |
Gauge Ranges: 0.7 bar (10 psi), 1 bar (15 psi), 2 bar (30 psi), 3.5 bar (50 psi), 7 bar (100 psi), 10 bar (150 psi), 20 bar (300 psi). Absolute Ranges: 2 bar (30 psi), 3.5 bar (50 psi), 7 bar (100 psi), 10 bar (150 psi), 20 bar (300 psi). |
| Maximum Overload (without damage) | 120% FS |
| Barometric Pressure Measurement Range | 800-1100 mbar abs |
| Total Barometric Uncertainty (24h) | <0.5 mbar |
| Barometer Drift/Year | <0.33 mbar/year typical |
| Pressure Control Stability | 50 ppm of PM620 full scale |
| Speed to Stable Setpoint |
0 barg to 20 barg (30 psig) +/- 50 ppm in 15 ml volume < 15 s 0 barg to 20 barg (300 psig) +/- 50 ppm in 50 ml volume < 90 s |
| Maximum Compensated Leak Rate at 20 barg (300 psig) with 50 ml volume | 60 mbar/min |
General Specification
| Parameter | Value |
|---|---|
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | -20 to +70 °C |
| Protection Class | IP54 |
| Humidity | Up to 95% non-condensing |
| Shock/Vibration | According to MIL-PRF-28800F (Class II equipment) |
| Altitude | Up to 3000 m |
| EMC | CE and UKCA approved IEC61326-1 |
| Electrical Safety | CE and UKCA approved IEC61010 |
| Pressure Safety | CE and UKCA approved technical safety practice |
| Test Volume Materials | Suitable for air |
| Approvals | CE marked, UKCA marked |
| Size (excluding DPI620) | (L) 343 mm / 13.5″ x (W) 192 mm / 7.6″ x (H) 136 mm / 5.4″ |
| Weight (excluding DPI620) | 3.4 kg / 7.5 lb |
| Power Supply | 15V, 2A (30W) |
| Battery Life (at 100% charge) | Min. 8 hours continuous use (typical) |
| Battery Charging Time | 8 hours |
| Maintenance | >5000 pressure cycles |
| Power Failure Protection | System lock and manual vent function |
| Connectivity | USB client micro-USB (+ Bluetooth® Low Energy for BI option) |
| Pressure Connection | Quick-connect with G1/8 female + 1/8 NPT female adapter |
The PV621, 622, and 623 Manual Pressure Generation Base Stations
Features
- A uniquely capable, reconfigurable, and standalone pressure testing system
- Advanced pressure generation
- 95% vacuum to 20 bar (300 psi) pneumatically
- 95% vacuum to 100 bar (1,500 psi) pneumatically
- 0 to 1,000 bar (15,000 psi) hydraulically
- Standalone replacement for hand pumps
- Bench-mounted use as comparator devices
- Safe and available in versions for hazardous areas
There are three pressure generation stations: the PV621, a pneumatic pressure generator for pressures from 95% vacuum to 20 bar (300 psi); the PV622, a pneumatic pressure generator for pressures from 95% vacuum to 100 bar (1,500 psi); and the PV623, a hydraulic pressure generator for pressures up to 1,000 bar (15,000 psi). Each pressure station is designed for standalone operation as a pressure generator and can replace conventional hand pumps to offer greater efficiency and ease of use. They can also be used on the bench as comparator devices.
PV621G, PV622G and PV623G Specification
| Specification | Value |
|---|---|
| Maximum Pressure | PV621G 20 bar (300 psi) pneumatic PV622G 100 bar (1,500 psi) pneumatic PV623G 1,000 bar (15,000 psi) hydraulic |
| Pressure Media | PV621G and PV622G non-corrosive gases, PV623G demineralized water or mineral oil (ISO viscosity grade < 22) |
| Operating Temperature | -10 to 50°C (14 to 122°F) For water +4 to +50°C (39 to 122°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) (must be free of water) |
| Shock and Vibration | BS EN 61010-1:2010; MIL-PRF-28800F for Class II equipment, 1 m drop tested |
| Pressure Safety | Pressure Equipment Directive Class SEP |
| Approval | CE and UKCA marked |
| Size and Weight | PV621G 450 mm x 280 mm x 235 mm, 2.65 kg PV622G 3.30 kg PV623G 3.75 kg |
PV621-IS, PV622-IS and PV623-IS Specification (where different from the above table)
| Specification | Value |
|---|---|
| Maximum Pressure | PV621-IS 20 bar (300 psi) pneumatic PV622-IS 100 bar (1,500 psi) pneumatic PV623-IS 1,000 bar (15,000 psi) hydraulic |
| Operating Temperature | -10 to 40°C (14 to 104°F) |
| Approval | CE and UKCA marked ATEX and IECEx intrinsically safe: IIC T4 ETL intrinsically safe (USA and Canada): Class I, Zone 1, AEx/Ex ia IIC T4 |
PM620 TERPS High-Accuracy Pressure Modules
PM620 now integrates our unique range of TERPS resonant silicon pressure sensors. These offer up to four times greater stability and higher accuracy than current pressure measurement technologies.
- Total uncertainty of 0.0125% FS
- Temperature-compensated accuracy from -10°C to 50°C (14°F to 122°F)
- Simple screw connection – hand-tight, no tools required
- Ranges from 1.2 bar to 100 bar (17.5 psi to 1500 psi)
- Compatibility with pressure calibrators such as the DPI612 and DPI620G/DPI620G-IS series
- Safe and hazardous area versions available
- Fully interchangeable without setup or calibration
MC620G Module Carrier
Features
- 2 independent pressure channels
- Easy to recalibrate
- Pressure protection
- Safe and available in versions for hazardous areas
The MC620 module carrier is attached to the head of the DPI620 to provide two independent pressure measurement channels. These can be equipped with any PM620/PM620T pressure module from 25 mbar to 1,000 bar (10 inH2O to 15,000 psi). A simple screw connection means that no tools are required and ensures both a highly integrated pressure seal and a reliable digital interface. Even the pressure adapters are interchangeable and require only a finger press.
The carrier is designed for pressure safety and will automatically seal when a module is not installed or the user attempts to remove it.
MC620G Specification
| Specification | Value |
|---|---|
| Maximum Pressure | 400 bar (5,800 psi) pneumatic, 1,000 bar (15,000 psi) hydraulic |
| Pressure Media | Compatible with stainless steel and nitrile seals |
| Pressure Safety | Pressure Equipment Directive Class SEP |
| Size and Weight | 80 mm x 100 mm x 110 mm, 640 g |
MC620-IS Specification (where different from MC620G)
| Specification | Value |
|---|---|
| Size and Weight | 78 mm x 100 mm x 110 mm, 820 g |
The Advanced Modular Calibration System Genii
The advanced modular calibration system Genii from Druck consists of four possible system components that offer multifunctionality to perform tasks that previously required a variety of different instruments. These system components are:
- DPI620G – Electrical/Multifunction Calibrator, HART/Fieldbus Communicator
- PM620/PM620T – Interchangeable Pressure Modules (all ranges from 0.7 bar/10 psi to 20 bar/300 psi compatible with the PV624)
- MC620G – Pressure Module Carrier
- PV62XG (including PV624) – Pressure Generating Base Stations
This user-selectable flexible system allows the selection of multiple DPI620G models, which can be used as a standalone electrical/multifunction calibrator, as a pressure reference with the addition of a pressure module carrier and pressure modules, or as a self-contained pressure calibrator with a pressure base station and a pressure module.
DPI620G
PM620/PM620T
MC620G
PV624
