DatenblattSpecifications
| Size | 110 x 250 x 320mm (4.3 x 9.8 x 12.6 ins) |
| Weight | 2kg (70.5oz) |
| Alarms | 9-12V @ 3A |
| I-Test backup battery | 200 speedy bump tests with 15 second intervals bewteen tests 5 hours in standby with no bump test Battery life approximately 500 cycles Charge time 7 hours |
| RTC backup battery | 3 year life |
| USB interface | One standard USB type A socket for USB Flash Memory stick One standard USB type B socket for connections to PC |
| Inlets/Outlets | Single gas inlet (requires demand flow regulator) Purge inlet (air) Exhaust |

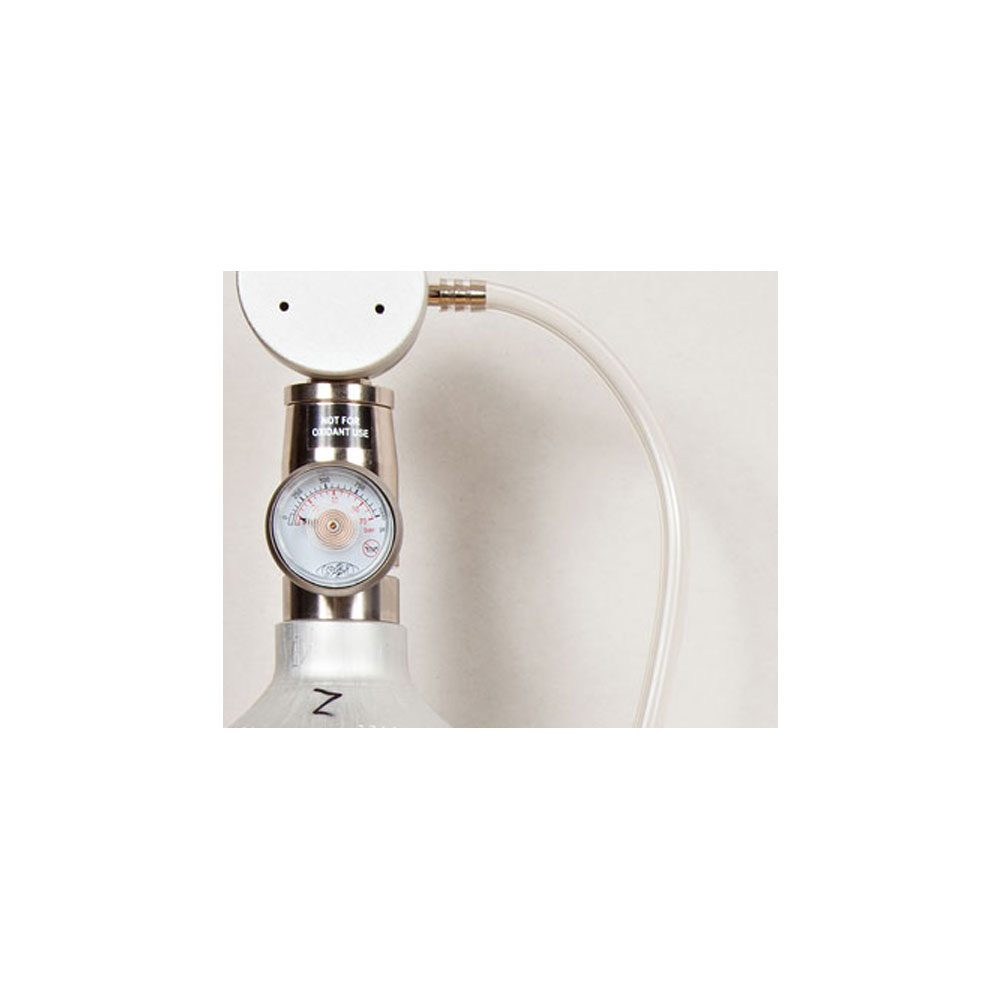

| Regulators | Demand flow regulator required |
| Storage capacity | Internal 2GB MicroSD card |
| Temperature specifications | Operating temperature: -10°C to +50°C Storage temperature: -25°C to +60°C Charging temperature: 0°C to +40°C |
| Humidity | 0% and 95% relative humidity (non-condensing) at +40°C |
| Ingress protection | IP20 |
