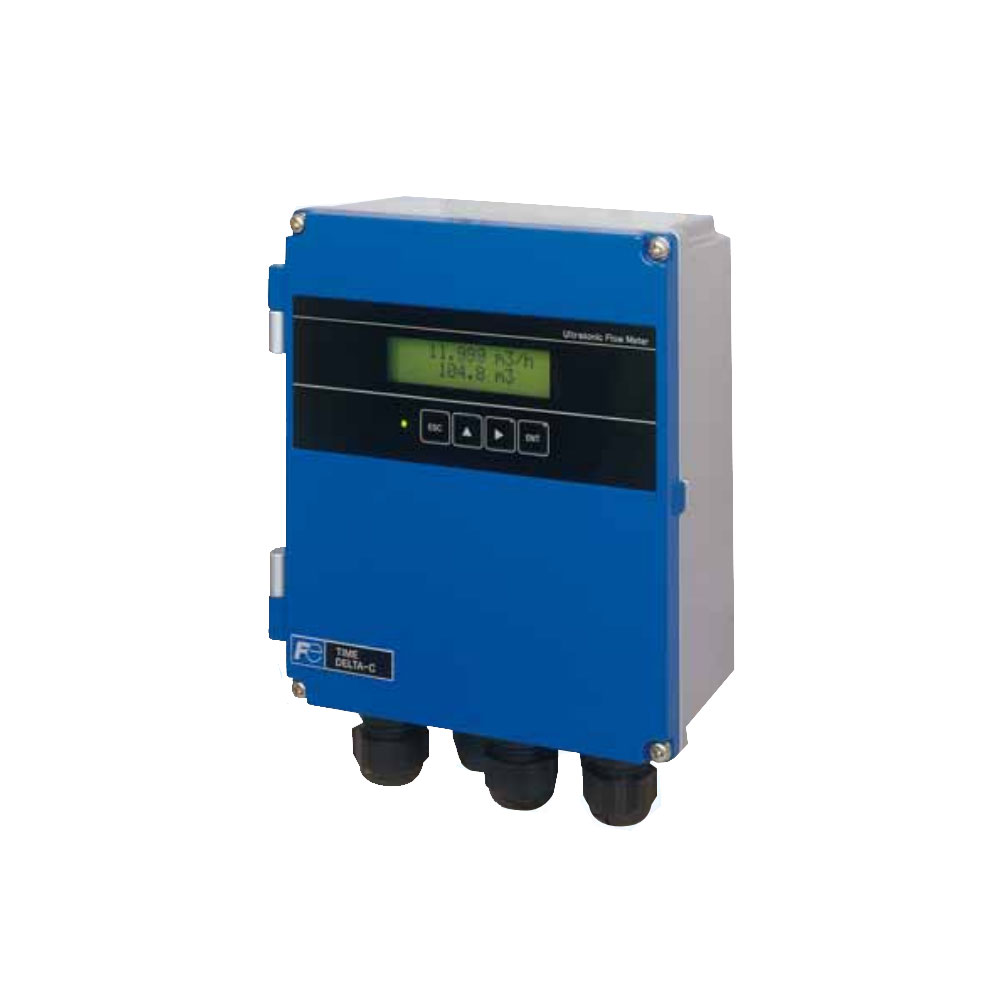

Time Delta C – Ultraschall Durchflussmesser


  • High accuracy measurement : 1% of rate
  • Superior anti-bubble performance: Our Advanced ABM method * is adopted
  • Maintenance free operation: non-invasive setup with no moving parts
  • Compact and lightweight : Size and mass reduced by 2/3 (compared with model FLV)
  • Flexible communication functions: RS-485 (MODBUS) (option)
  • Wide application range fi13 to fi6000mm applicable pipe diameters Extendable rail type detector up to fi 50 to fi 1200mm
  • Simple menu guided setup from front panel or PC interface
Datenblatt
Zur Anfrageliste hinzufügen



Fluid Uniform liquid through which ultrasonic wave can propagate (deionized water, cooling water, chemical solution, tap water, etc.)
Fluid temperature -40°C to 200℃ (depends on detector)
Applicable pipes
Detector Inner diameter Materials
FSSA (V method) 25–225 mm Plastic (PVC, etc.)*1
Metal (SS, steel, copper, aluminum, etc.)
FSSC (V method) 50–600 mm
FSSC (Z method) 600–1200 mm
FSSD (V method) 13–100 mm
FSSE (V or Z method) 200–6000 mm
FSSH (V or Z method) 50–400 mm

Select FSSC for the following pipes:

  • PP pipe with a thickness of 15 mm or more
    PVDF pipe with a thickness of 9 mm or more
  • Metal pipes with coating, pipes rusting inside, pipes lined with coal tar epoxy, Teflon, mortar, or rubber, or other pipes through which the ultrasonic wave is hard to pass
Range 0 to ±0.3…..±32 m/s
Accuracy ±1% of rate (when flow velocity is ≥2 m/s)
Response 0.2 seconds (in high-speed response mode)
Ambient temperature -20°C to +55°C (transmitter)
-20°C to +60°C…80°C (depends on detector)
Analog output 4–20 mA DC, 1 point (maximum resistance load: 600Ω)
Contact output Open collector: 2 points
Total, alarm, etc.
Total pulse output: 1 P/day to 100 P/s (open collector)
Serial communication RS-485 (MODBUS) (option)
Display LCD with back light, 2-line 16-digit
Key pad 4 keys (ESC, up, shift, enter), Operation on panel (IP66 enclosure version)
Power supply voltage 100–240 V AC, 50/60 Hz, or 20–30 V DC
Transmitter enclosure Aluminum alloy, IP66 or IP67
Transmitter mounting Wall mount or pipe mount
Transmitter dimensions (in mm) H170 x W142 x D70 (IP66)
H220 x W230 x D95 (IP67)
