| AUX | 230…240 Vac |
|---|---|
| OUTPUT | 0…5 mA/+-5 mA/0…10 mA/+-10 mA/0…20 mA/+-20 mA/4…20 mA/0…10 V/+-10 V/1…5 V (selectable) response time 100 ms |
| FORMAT | 8 DIN module |
| CURRENT | 5 A (direct or from CT with programmable ratio) |
| VOLTAGE | 80…500 V phase-phase (direct or from VT with programmable ratio) |
| TYPE | Programmable transducer for apparet-reactive-active power or power factor or phase angle or average power or frequency |
| MAIN | single or three-phase 3/4 wire balanced or unbalanced load |
| MEASUREMENT FIELD | programmable |

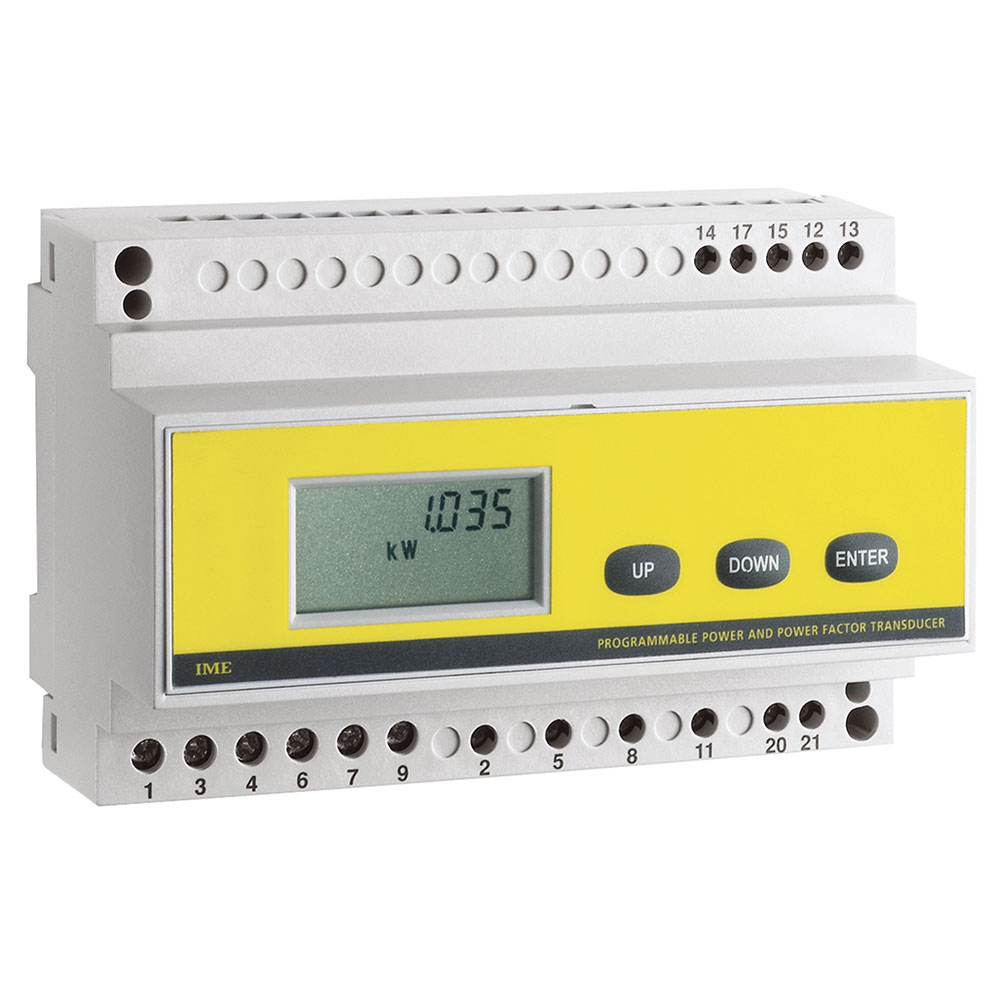

Tema fP Programmable transducer
Programmable transducer for apparet-reactive-active power or power factor or phase angle or average power or frequency
 Datenblatt |
| Bedienungsanleitung |
| AUX | 230…240 Vac |
|---|---|
| OUTPUT | 0…5 mA/+-5 mA/0…10 mA/+-10 mA/0…20 mA/+-20 mA/4…20 mA/0…10 V/+-10 V/1…5 V (selectable) response time 100 ms |
| FORMAT | 8 DIN module |
| CURRENT | 5 A (direct or from CT with programmable ratio) |
| VOLTAGE | 80…500 V phase-phase (direct or from VT with programmable ratio) |
| TYPE | Programmable transducer for apparet-reactive-active power or power factor or phase angle or average power or frequency |
| MAIN | single or three-phase 3/4 wire balanced or unbalanced load |
| MEASUREMENT FIELD | programmable |
