Robust
- Robustes Polycarbonat-Gehäuse, Schutz für Sie in schwierigsten Einsatzbereichen – Wasser- und staubdicht nach IP65
- Komplette Umspritzung – Hohe Schlagfestigkeit
Effektive Warnungen
- 2 Alarmstufen für Sofortalarm und TWA-Alarm bei Versionen für toxische Gase – Gewährleistet eine sofortige Evakuierung aus der Gefahrenzone
- 95dB akustischer Alarm
- Intensiver zweifacher rot/blauer optischer Alarm – Wenn die Umgebungsgeräusche zu laut sind, alarmiert
Gasman Sie dennoch durch Vibrationen und mit denleistungsstarken blau/roten LED-Alarmen Interner Vibrationsalarm
Flexibel
- Versionen für Sauerstoff, brennbare und toxische Gase erhältlich
- Auf Ihre Anforderungen zugeschnittener Gasdetektor
- Wiederaufladbare Versionen für alle Gasarten
- Nicht wiederaufladbare Versionen für Sauerstoff und toxische Gase
- Anzeigeoptionen für TWA und Spitzenwerte in Echtzeit
- Komplett austauschbare intelligente Sensormodule
Benutzerfreundlich
- Ein-Tasten-Bedienung – Schnelle und einfache Bedienung
- Beleuchtetes Display für Gasdiagnose und Betriebszustand – Einfaches Ablesen
- Extrem leicht – nur 85 g in der Version für toxische Gase – Hoher Tragekomfort
Specifications
Size | 90 x 48 x 24 mm (3.5 x 1.9 x 0.95 ins) |
Weight | Flammable: 138g (4.9oz) Toxic: 118g (4.1oz) Oxygen: 129g (4.6oz) Carbon monoxide: 139g (4.9oz) |
Typical response times (T90) | Flammable: 20s Toxic gas: 20s Oxygen: 10s |
Alarms | Audible: 95dB; Multiple alarm options let you select distinctive tones for different alarm levels Visible: Dual colours red/ blue flashing LEDs in a gas hazard Internal vibrating alarm |
Display | Custom LCD with backlight, with display of gas concentration. Graphic symbols for battery (with proportional indication of remaining operation time), and display mode. Start up indication when calibration is due within 30 days, calibration overdue or service required. Normal display: Real time gas concentration levels Display recall: Peak readings and TWA |
Data logging | Full timed datalogging with adjustable sample rate, set to 1 min. data rate as default. 900 hours storage at 1 min. interval (54,000 logs), >4800 events |
Battery | Rechargeable lithium battery for all gas types Non-rechargeable lithium battery for toxics and oxygen (excluding CO2) |
Operating time* | Rechargeable: 12 hours minimum for flammable unit Non-rechargeable: Up to 2 years |
Sampling | Optional manual aspirator |
Operating temperature** | -20°C to +65°C (-4°F to +149°F) |
Humidity | 20 to 90% RH |
Ingress protection | IP65 |

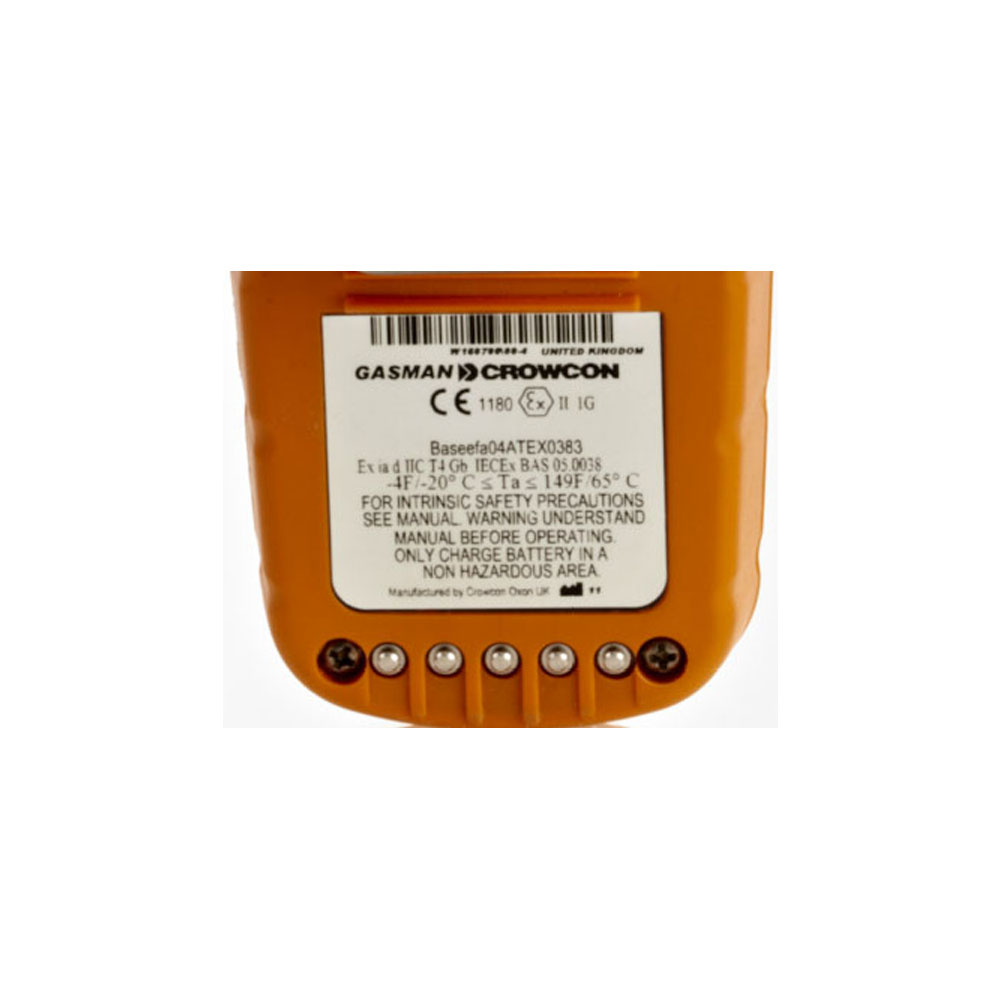

Approvals | Europe: Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0384 Flammable: ATEX II 2G Ex ia db IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BASEEFA04ATEX0383 International: Toxic or O2: IECEx Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65°C) BAS05.0039 Flammable: IECEx Ex db ia IIC T4 Gb (-20°C ≤ Ta ≤ +65°C) BAS05.0038 North America: CSA Class 1 Groups A,B,C,D Division 1 |
Standards | Europe: EN60079-0, EN60079-11, EN60079-1, ATEX 2014/34/EU North America: CSA22.2, 152EN50270, EN50271, EN61779, EN45544 |
PC Interface | RS232 connection from interface module in charger RS232/USB converter available |
Calibration | Gasman can be routinely calibrated using Portables PC software or by using Checkbox IMH |
Crowcon Connect Compatible? | Yes |
