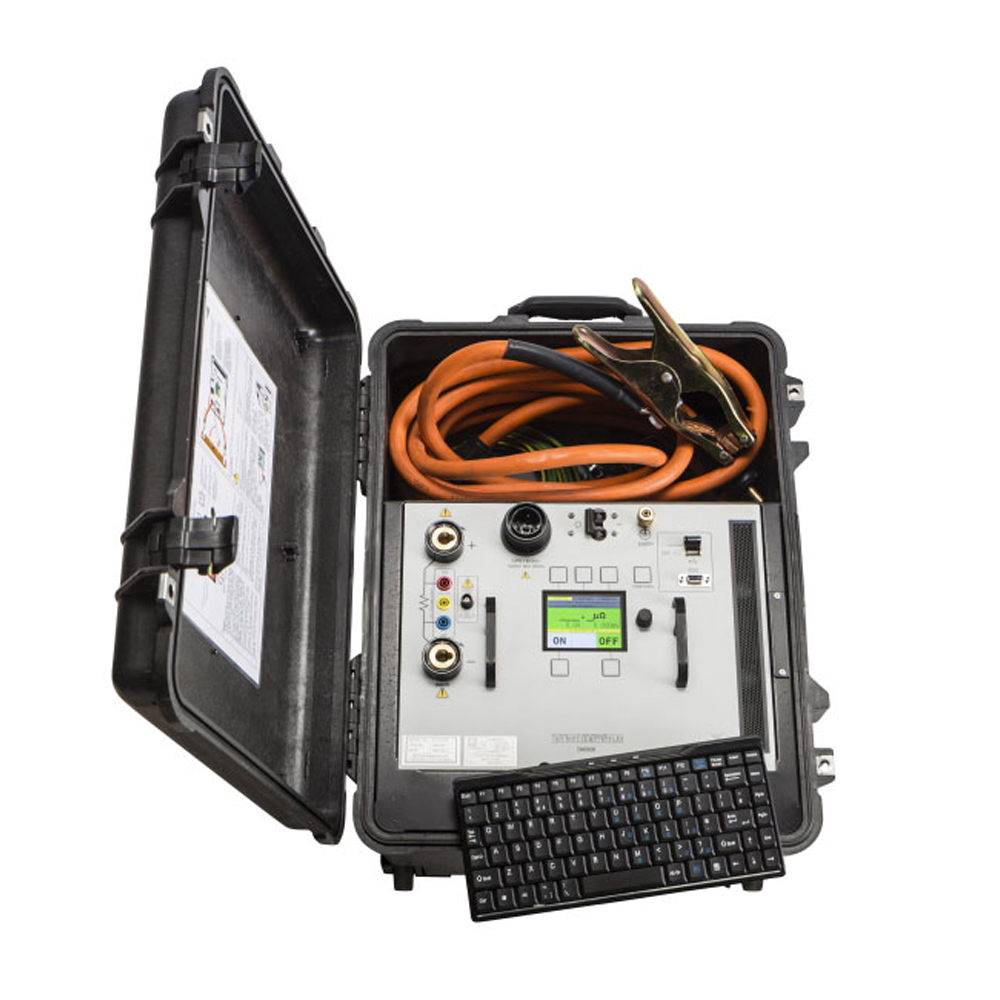

DatenblattThe DMO600 is a high current digital micro-ohmmeter suitable for measuring very low resistances in a wide range of applications. The unit is equally suited to commissioning, maintenance, and production line environments. Contact resistances in circuit breakers, switch panels, isolators, and busbar joints are all easily and safely measured.
The DMO600 is simple to operate, only requiring the user to select the test current and switch the output on. The unit has presettable test current with three buttons to store commonly used test currents. Selection of all ranges is fully automatic, and current, voltage and resistance are displayed simultaneously. The resistance is calculated from the test current and sense voltage. To assist the user, all readings are held on the display when the output is switched off. The unit features results storage using a USB memory key, and is supplied with a USB keyboard to enter comments to be stored with readings. All results are time and date-stamped and saved in a CSV file. The CSV file can be opened with any spreadsheet program such as Microsoft Excel™ or LibreOffice Calc.
| Weight | 19.7 kg |
|---|---|
| Dimensions | 560 × 456 × 265 mm |
| Supplied Accessories | Operating manual Output lead set Mains lead Earth lead USB memory key USB keyboard |
| Optional Accessories | DMO600 Standard Leads, Part no. A231-0002 Output & sensing extension 3m in plastic case, Part no. A231-0004 Output & sensing extension 5m in plastic case, Part no. A231-0005 Output & sensing extension 10m in plastic case, Part no. A231-0006 |
