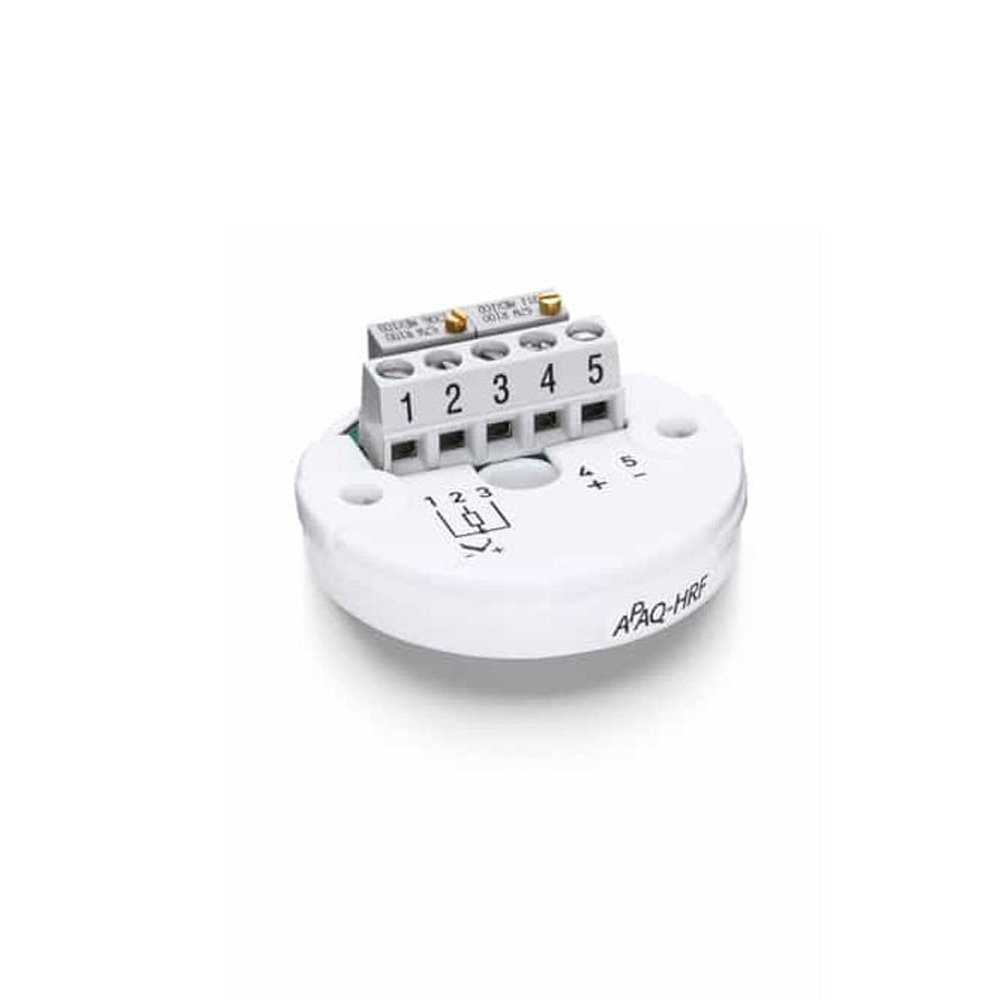

APAQ-H – Cost-optimized Adjustable 2-wire Transmitter for Thermocouple Input


Analog Adjustable 2-wire Transmitters

  • Type: Analog
  • Input: RTD, thermocouple
  • Output: 4-20 mA
  • Isolation: Unisolated
  • Measuring channels: 1 channel

Datasheet
Add to your Quote List

APAQ-H is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input. Designed for highest reliability and excellent industrial performance. The ”low profile” housing is extremely durable and facilitates easy connections and adjustments.

  • Rangeable with solderpads and potentiometers
  • Temperature linear output for Pt100 (APAQ-HRF/-HRFX)
  • mV linear output for T/C (APAQ-HCF/-HCFX)
  • Consistent sensor break function
  • Easy wiring, large center hole
  • Moulded electronics for high protection
Type Head-mounted
Input RTD; Thermocouple
Input RTD Pt100
Input Thermocouple Type J, L, T, K, N
Type Of Transmitter Analog
Output 4-20 mA
Isolation Unisolated
Measuring channels 1 channel
Input connections 3-wire connection
Power supply APAQ-HRF/-HCF: 6.5 to 32 VDC; APAQ-HRFX/-HCFX: 8.5 to 30 VDC
Approvals ATEX
Typical accuracy RTD: ±0.15% of span;
T/C: ±0.5% to ± 1.0% of span
Quick delivery Yes






APAQ-H - Cost-optimized Adjustable 2-wire Transmitter for Thermocouple Input
Technical advice: 03303 / 50 40 66

Technical advice for this product
