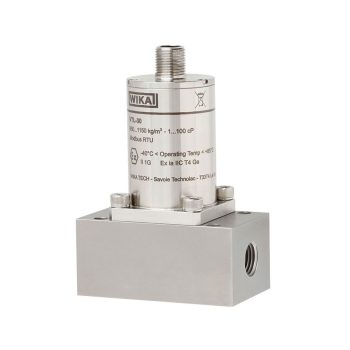

- Compact design for easy integration
- Wetted parts made of 316L stainless steel
- Suitable for hazardous areas, ATEX/IECEx-certified (zone 0) and FM-certified Class I Div I
- Patented MesoScale® design allowing fast response time and high repeatability
 Datenblatt |
- Impedance measurement possible at different frequencies and signal shapes.
- DC voltage measurement:
- ±2.45 VDC (Res. 0,00001V)
- ±24.5 VDC (Res. 0,0001V)
- ±100 VDC (Res. 0,001V)
- Storage of 300000 readings
- Up to 1000 battery definitions can be transferred from a database to the device.
- RF-ID Battery identification with transponders.
- USB – Interface.
- 10 hours of continuous operation.
| Datasheet |
block voltages: +24VDC (0,0001V res.) battery voltage (DC): up to 600VDC (0,001V res) univeral sensor interface: +2,4VDC (0,00001V res.)
| Datasheet |
- Easy to operate
- Expandable up to 120 voltage inputs
- Block voltage +/- 16,6 VDC
- 600VDC CAT III (5000 VDC est voltage)
- Parallel testing of battery systems possible
|
Datasheet
|
- the perfect mobile test system for recurring battery tests. In interaction with an electronic load, the condition of a battery system (SOH) can be precisely determined during a capacity test.
- Battery systems of up to 127 blocks can be tested. If desired, two batteries (with a reduced number of blocks) can be tested. The maximum block voltage is 15V.
- The test system uses relays with an increased dielectric strength of 3000VDC. In addition, 4 parallel working measuring circuits for block voltage measurement are integrated, which are galvanically separated from each other (5000VDC)
- test a single battery of up to 127 x 2V blocks
- two batteries in parallel
- max block voltage 15V.
|
Datasheet
|
|
User Manual
|
- High power battery capacity test system
- Discharging current up to 1300A with external loads (up to 9)
- Graphical display showing test parameters, curves and results
- Internal memory
- Light and easy to carry, with handles and wheels
- Shunt or clamp metering of an additional current
- Suitable for all battery types
| Datasheet |
- Quality checks in the field, e. g. on wine and wine must (°Brix, °KMW, Oechsle, Baumé)
- Checks for wort and apparent extract in beer (°Plato)
- Fermentation graph for each tank directly on the screen
- One device replaces all glass hydrometers in the workplace
| Datasheet |
| User Manual |
- Quality checks in the field, e. g. on wine and wine must (°Brix, °KMW, Oechsle, Baumé)
- Checks for wort and apparent extract in beer (°Plato)
- Fermentation graph for each tank directly on the screen
- One device replaces all glass hydrometers in the workplace
| Datasheet |
| User Manual |
- For measuring flammable chemicals in hazardous environments
- The only intrinsically safe portable density meter on the market (Ex marking [Ex] II 2 G Ex ib IIB T4)
- Leak-proof sealed housing to withstand rough conditions
- Protection class IP54
| Datasheet |
| User Manual |
- For measuring petroleum samples in hazardous environments
- The only intrinsically safe portable density meter on the market (Ex marking [Ex] II 2 G Ex ib IIB T4)
- Fully complies with the ASTM D7777 and IP 559 standards
- Protection class IP54
| Datasheet |
| User Manual |
- For measuring the specific gravity of sulfuric acid in lead-acid batteries in one second
- Ideal for use in lead-acid battery production and the maintenance of uninterruptible power supply systems (UPS)
- Protection class IP54
- High chemical resistance for use in harsh environments
| Datasheet |
| User Manual |
- 4-digit measurements in 20 seconds
- Ultra-fast measurement mode maximizes throughput
- Best-in-class filling control provides reliable results
- 200+ conversion tables for quicker results
| Datasheet |
| User Manual |
- 5-digit accuracy in 30 seconds
- The industry-proven device for QC for a wide range of samples
- Eight additional parameters and seven sample changers available
- Five industry-specific user profiles
- 30+ guided workflows support your measurements
| Datasheet |
| User Manual |
- Up to 6-digit accuracy without drifts
- Perfect for highly dense samples
- Auto-correction for highly viscous samples
- Ideal for high-end R&D applications, authorities, and standards organizations
| Datasheet |
| User Manual |
The new DMA 4200 M is a density meter for exceptional conditions. It measures the density at temperatures between -10 °C and 200 °C and elevated pressures up to 500 bar. The Pulsed Excitation Method used by DMA 4200 M delivers the most stable density results based on comprehensive knowledge of the oscillation characteristics. The new automatic bubble detection, FillingCheck™, makes the DMA 4200 M compliant with ASTM D4052 and ASTM D5002. Viscosity influence is eliminated by a fast new viscosity correction, ensuring density results with an accuracy of up to 0.0002 g/cm3. The new Temperfect™ feature of DMA 4200 M allows immediate density measurements at any temperature between 0 °C and 150 °C at ambient pressure. DMA 4200 M improves, accelerates, and simplifies density measurement of heavy petroleum samples.
| Datasheet |
| User Manual |
- Measures the whole concentration range of sulfuric acid and oleum
- Determines the concentration of two- and three-component solutions
- Also ideal for phosphoric acid, formaldehyde, methanol, inks, and paints
- Minimum sample volume increases safety for lab personnel
| Datasheet |
| User Manual |
Determines the alcohol and extract content in beer, wine, cider, spirits, liqueurs, and sake.
| Brochure |
| User Manual |
- Intelligent modular battery monitoring
- Flexible configurable for different applications
- Continuous online measurement
- Semiconductor switches (no relays)
- Best performance /price ratio
- No manual temperature correction required
- You will receive the finished result: Values are displayed in% v / v (corrected to 20 ° C and 15 ° C for the Japanese market) or ° Proof (corrected to 60 ° F)
- Accuracy of 0.2% v / v
- The influence of viscosity on the density result is corrected automatically
- Predefined calibration process with deionized water
- New adjustment routine ensures alcohol measurements with an accuracy of up to 0.2% v / v, even at low measuring temperatures and low alcohol concentrations
| Datasheet |
| User Manual |
- Accuracy of 0.1 %v/v
- For on-site measurement at distilleries and craft distilleries
- Sample identification via RFID tag
- Store results and print or export them to a PC via Bluetooth® later on
| Datasheet |
| User Manual |
- 3-digit digital density measurement from the market leader
- Small is big: only 1 mL sample volume avoids wasting product
- Big is bigger: 7” glove-friendly touchscreen for great usability
- No manual calculations due to 60+ conversion tables
- Ready for pasty, inhomogeneous, particle-containing samples
| Datasheet |
| User Manual |
- The most advanced 4-digit density meter in this price segment
- 100 % consistent results due to repeatability of 0.00005 g/cm3
- Covers ASTM D4052, ASTM D5002, ISO 12185, USP <841>, Ph. Eur. 2.25, JP 17 2.56, ChP(Vol IV) 0601, and FDA CFR 21 Part 11
- Splash-proof, instrument self-diagnosis, no ventilation-related corrosion
| Datasheet |
| User Manual |
