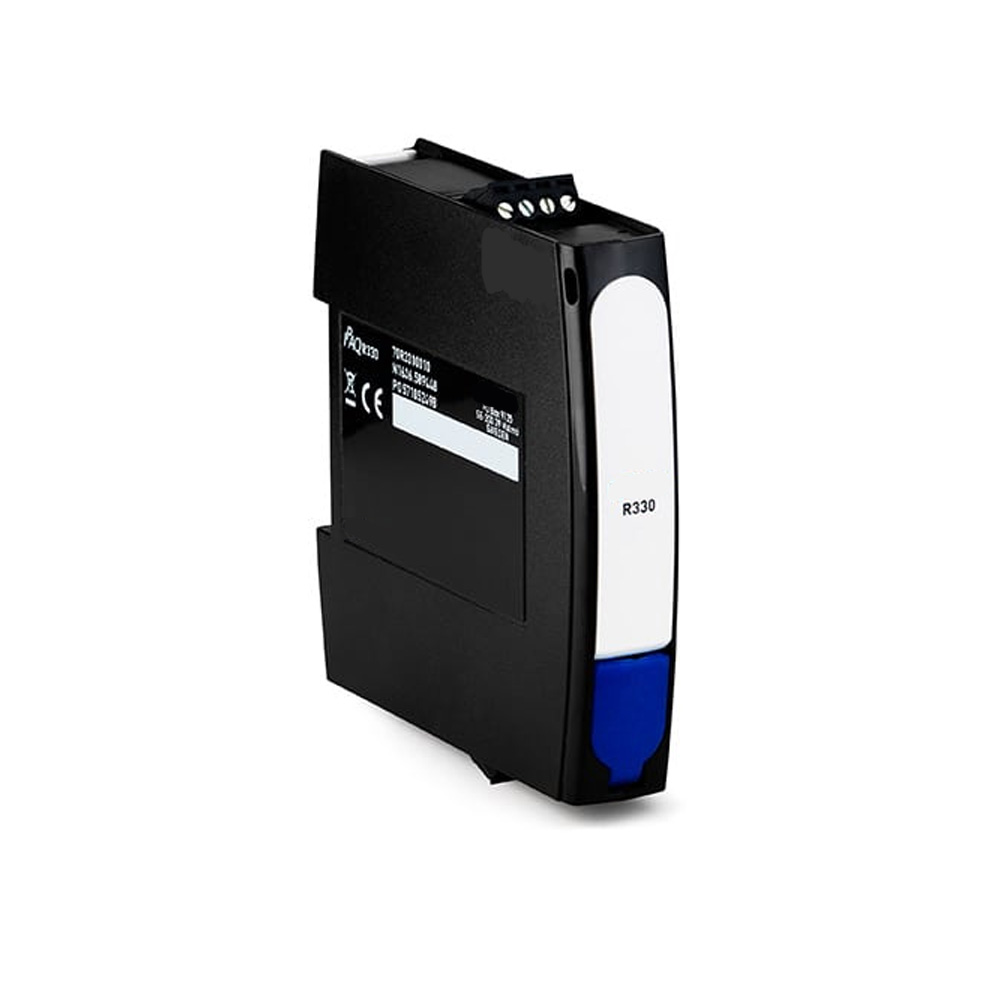

DatasheetIPAQ R330 is a modern temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors to offer high flexibility and reduce the number of installed product variants. IPAQ R330 is available with ATEX, IECEx and cFMus certifications, making it a safe choice for a wide range of applications.
IPAQ R330 supports wireless communication via NFC® (Near- field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter through a smartphone or a tablet.
Overview
High reliability and accuracy over time
IPAQ 330 is a highly reliable and robust temperature transmitter. External influences such as ambient temperature, vibrations up to 10 g, moisture and EMC interference have minimal influence on the measurement result.
Minimal drift of ±0.1°C or ±0.1% of span over 5 years reduces calibration requirements.
Smart features to facilitate your daily work
Packed with our most advanced technology, IPAQ 330 gives you better control over your process. Smart features such as password protection, simulated output, data logging, runtime counter and customized linearization, facilitates your daily work.
Wireless configuration och monitoring
Configure your IPAQ 330 wirelessly via NFC® by using the new app INOR Connect. The fast communication between the transmitter and the smartphone makes it possible to copy and paste a configuration to as many transmitters as you like and it only takes seconds.
Add the ICON-BT modem and you can configure and monitor your IPAQ 330 also via Bluetooth. Thanks to the extended range that Bluetooth offers you can monitor the transmitter remotely.
Technical Specification
| Type | Rail-mounted |
| Input | RTD, TC, mV, ohm |
| Input RTD | Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10 |
| Input thermocouple | Type B, C, D, E, J, K, N, R, S, T |
| Type of transmitter | Digital |
| Output | 4-20 mA |
| Galvanic isolation | 1500 VAC |
| Measuring channels | 1 channel |
| Sensor connection | 2-, 3-, 4-wire connection |
| Power supply | IPAQ-R330: 8 to 36 VDC IPAQ-R330X: 8 to 30 VDC |
| Approvals | ATEX, IECEx, FM |
| Typical accuracy | 0,08% of span |
| Accuracy over time | Max. drift ±0,02% of span/year |
| Vibration | IEC 60068-2-6, 5 g |
| Runtime counter | Hour counter for elapsed operational time |
| Simulated output | Fixed current ouput during a maximum time of 15 min |
| Configuration | ConSoft or INOR Connect |
| Wireless communication | NFC® and Bluetooth® * |
* Bluetooth® communication is only supported together with ICON-BT
