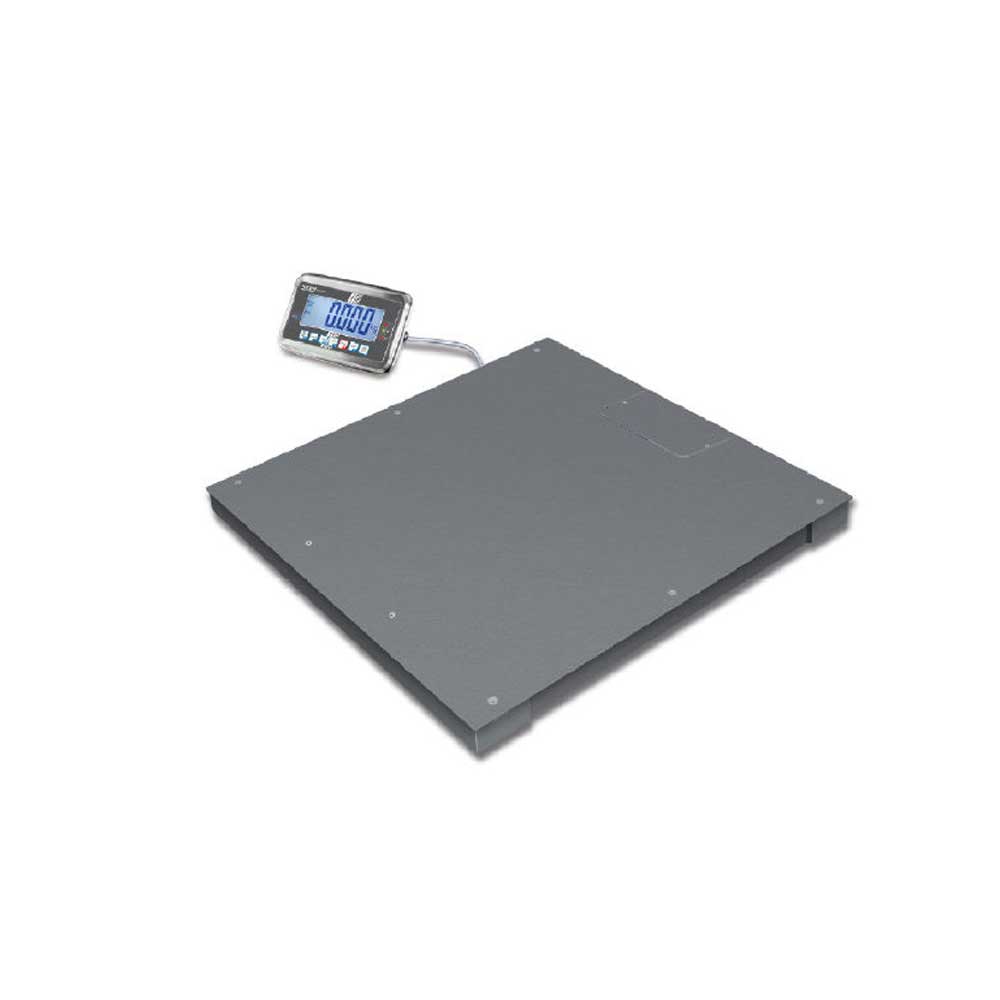

Floor scales BFA/BFA-N – Weighing bridge with screw-on weighing plate (IP67) and stainless steel display device (IP65), with EC type approval [M]


  • Tough industry standard suitable for use in harsh industrial applications

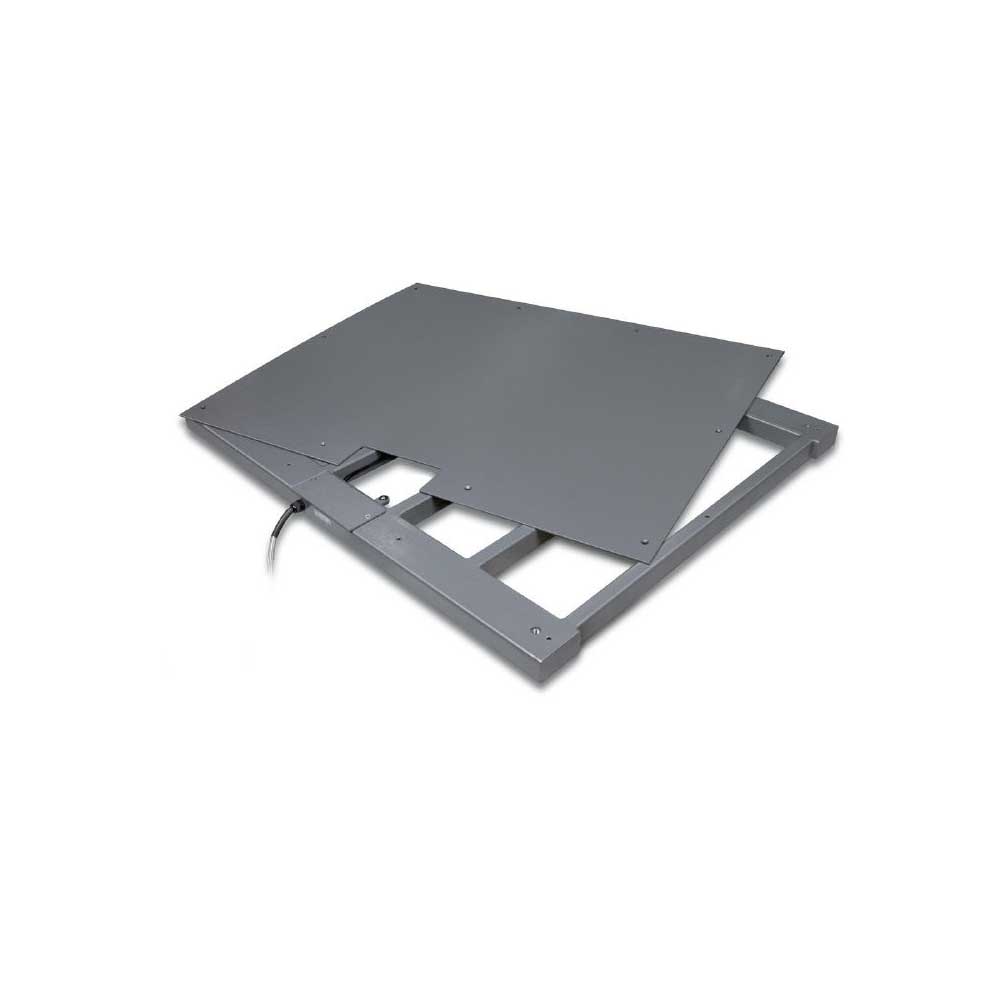

  • KERN BFA: Weighing plate screwed on from the top, so it easy to remove, hygienic and easy to clean
  • KERN BFA: Weighing bridge corrugated steel plate welded, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • KERN BFA-N: Weighing bridge steel, lacquered, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • Weighing bridge can also be delivered as components without the display device: KERN KFP-V20 IP67
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Display device: Stainless steel, protection against dust and water splashes IP65
  • Benchtop stand incl. wall mount for display device as standard
Datasheet
Installation instructions floor scale
Operating and Installation Instructions Display devices
Add to your Quote List
  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs
  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment



Model

Weighing
capacity
[Max] kg

Read-
ability
[d] kg

Minimum
load
[Min] kg

Weighing
plate
W×D×H
mm


Option
Verification


Option
DAkkS
Calibration
Certificate

BFA 600K-1SNM
600
0,2
4
1000×1000×85
1
1
BFA 600K-1NM-2017e
600
0,2
4
1500×1250×85
1
1
600
0,2
4
1500×1250×85
0
1
BFA 1T-4SNM
1500
0,5
10
1000×1000×95
1
1

BFA 6T-3M
6000
2
40
1500×1500×130
1
1








Bodenwaagen BFA/BFA-N
Floor scales BFA/BFA-N - Weighing bridge with screw-on weighing plate (IP67) and stainless steel display device (IP65), with EC type approval [M] - Image 2
Floor scales BFA/BFA-N - Weighing bridge with screw-on weighing plate (IP67) and stainless steel display device (IP65), with EC type approval [M] - Image 3
Technical advice: 03303 / 50 40 66

Technical advice for this product
