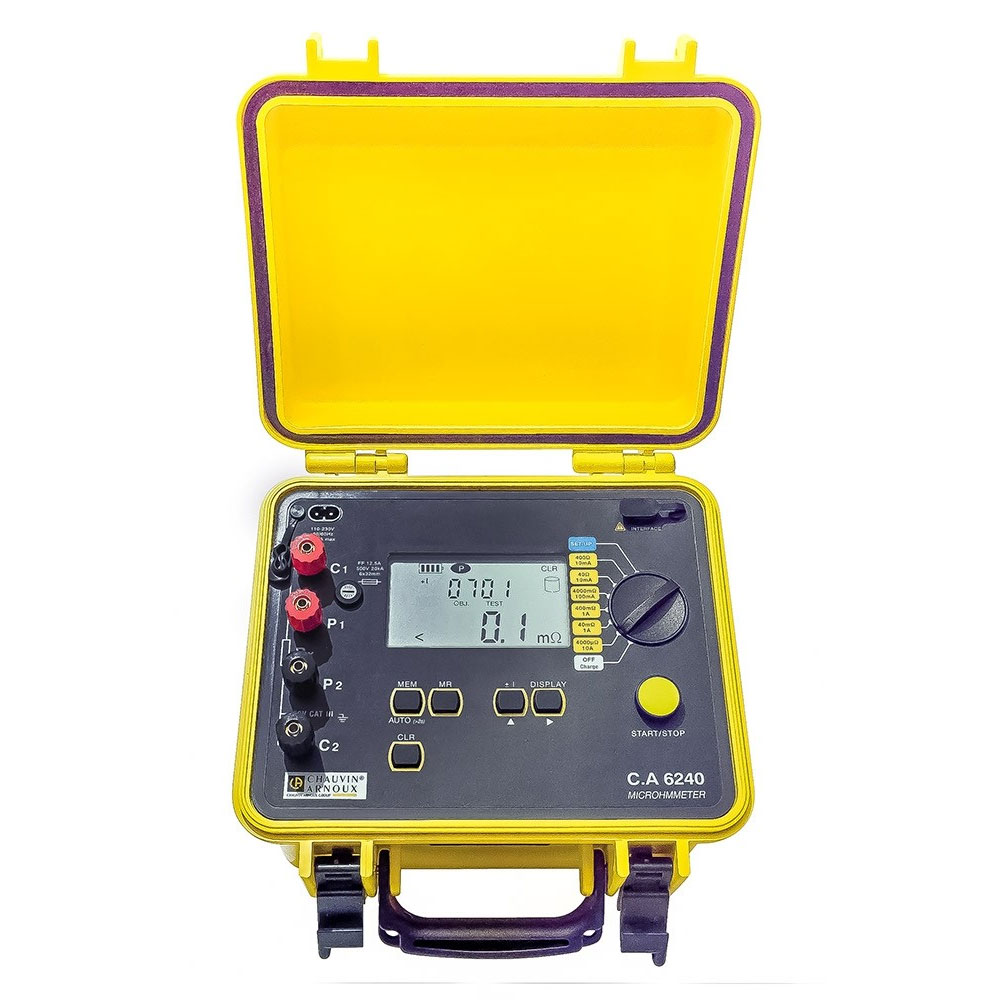

DatasheetRugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.
It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.
To make them easier to use and to permit new applications, new retractable 10 A KELVIN test probes are now available as accessories.
“Pistol” test probes
- Handle dimensions 108 x 40 mm, test probe 154 x 30 mm, thickness 28 mm
- Test probe diameter 2 mm
- Test-probe spacing 3.5 mm
- Cable length 3.15 metres
- Spade lugs for Ø 4 to 6 mm
- Safety connectors Ø 4 mm
- Weight approx. 2 x 420 g
Kelvin test probe with rotation
- Dimensions (L x W x H) 207 x 34 x 30 mm
- Test-probe diameter 3 mm
- Test-probe spacing 8 mm
- Test-probe extension/retraction 10 mm
- Cable length 3.15 metres
- Spade lugs for Ø 4 to 6 mm
- Safety connectors Ø 4 mm
- Weight approx. 2 x 400 g
- Resistance 2 x 50 mΩ max.
