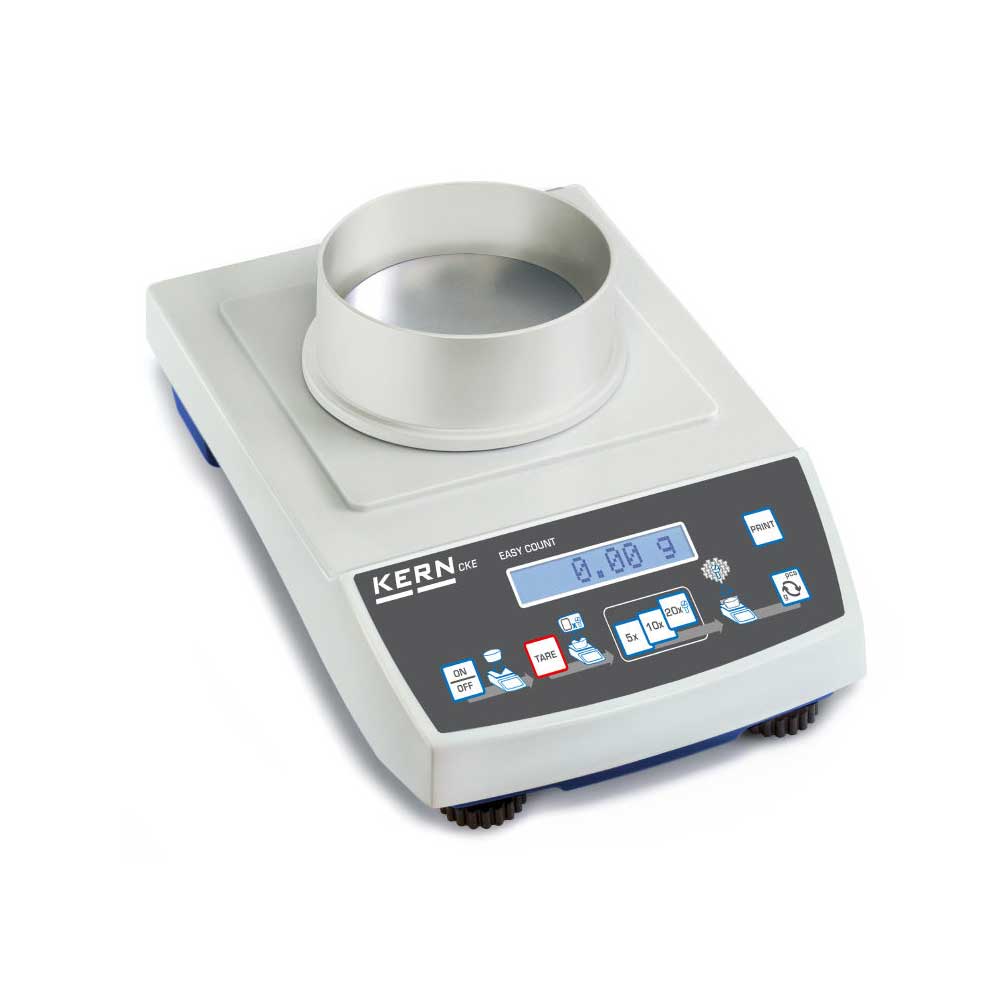

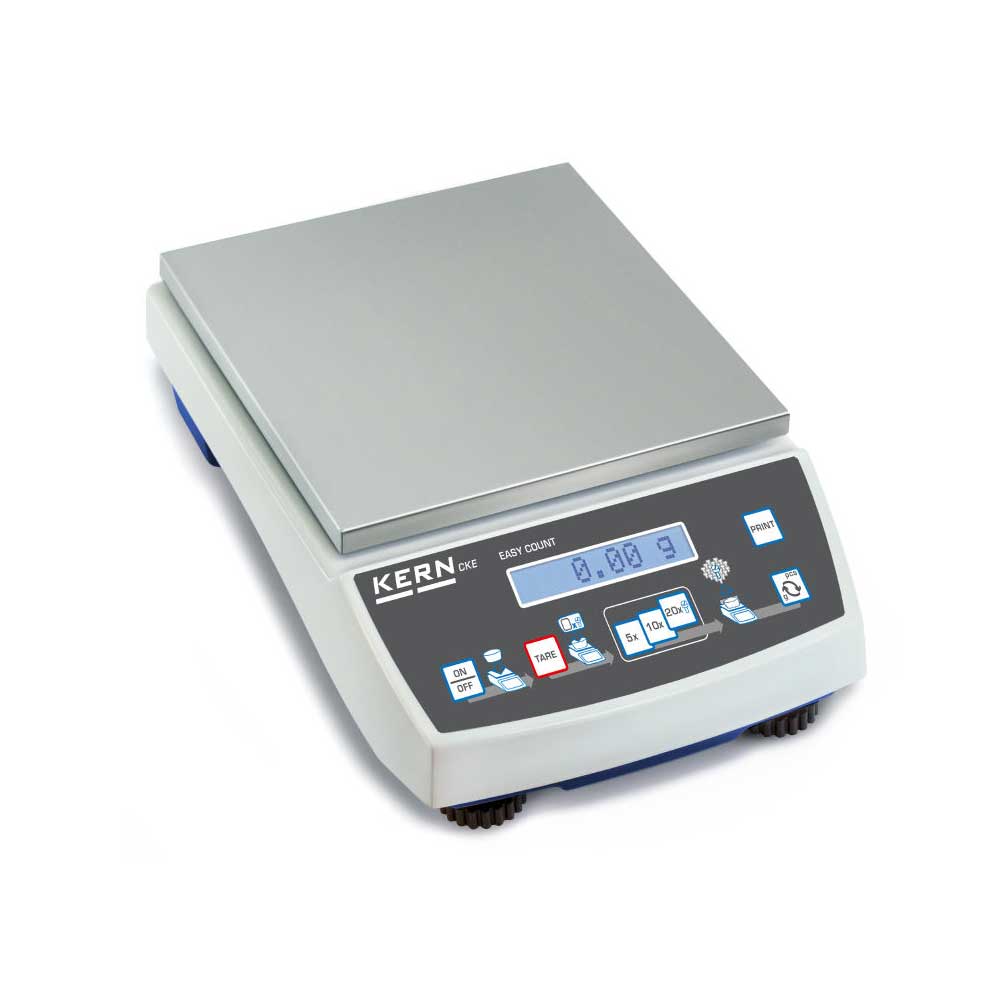

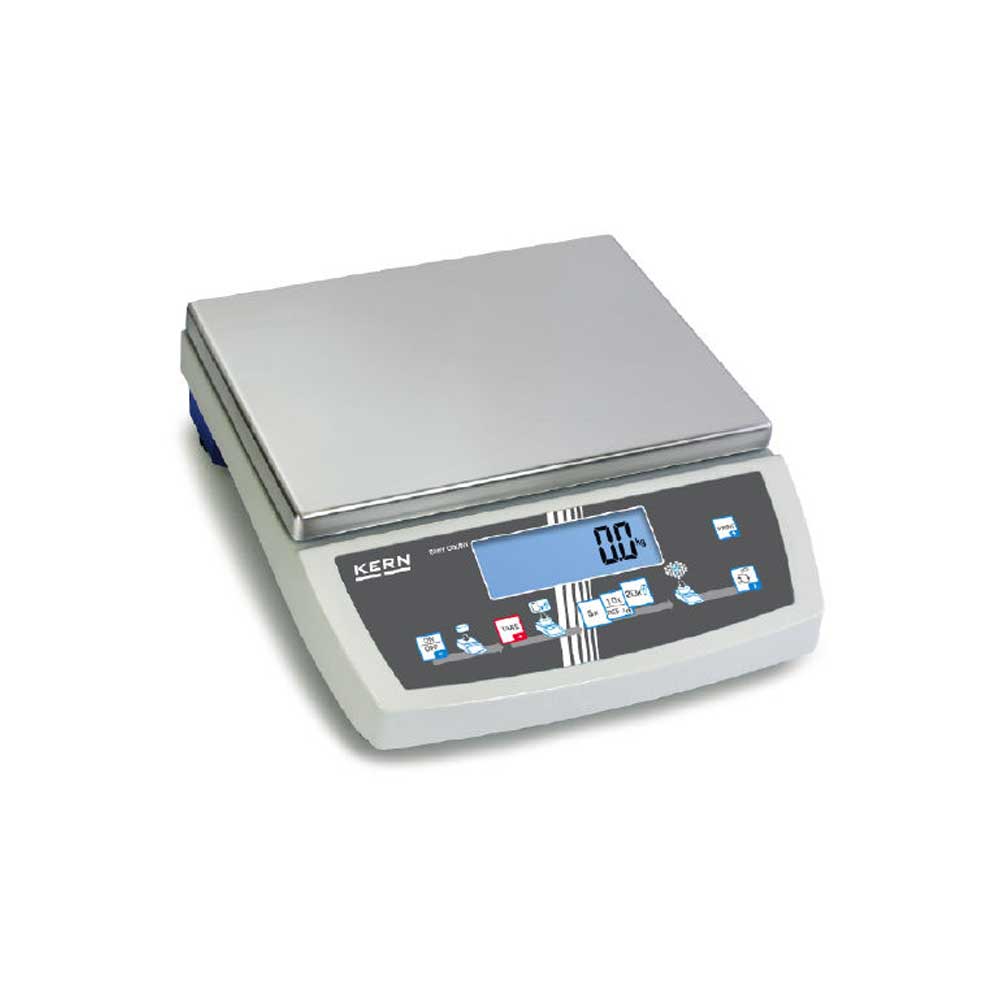

Counting scale CKE-2019a – Easy to use, self-explanatory counting scale with laboratory accuracy, counting resolution up to 360,000 points

Precise counting: The automatic reference weight optimisation of reference weight gradually improves the averag piece weight value
Two scales in one: Switching from counting mode to weighing mode at the touch of a key
Draught shield standard for models with weighing plate size Ø 81, weighing space Ø 90 × 40 mm Optional battery operation, only for models with weighing plate size W×D 340×240 mm, batteries 6×1.5 V Size C not standard, operating time up to 40 h
Protective working cover included with delivery

Datasheet
User Manual

Self-explanatory graphic control panel, counting process can be understood immediately, even without operating instructions.
- – no learning time = reduces costs
- – ideal for untrained users
- – visualised process avoids operating errors avoids
The 4 steps are carried out from left to right:
- Place the empty container onto the weighing plate and tare by pressing the TARE key
- Place the reference quantity for the goods to be counted into the container (5, 10 or 20 pieces)
- Confirm the selected reference quantity by pressing the key (5, 10 or 20)
- Pour in the goods to be counted. The number of pieces will immediately be shown in the display

Model	Weighing capacity [Max] kg	Read- ability [d] g	Min. piece weight (Normal) g/piece	Weighing plate mm	Option DAkkS Calibration Certificate
CKE 360-3	0,36	0,001	0,01	81	1
CKE 2000-2	2	0,01	0,1	150×170	1
CKE 3600-2	3,6	0,01	0,1	150×170	1
CKE 8K0.05-2019a	8	0,05	0,5	340×240	1
CKE 16K0.1-2019a	16	0,1	1	340×240	1
