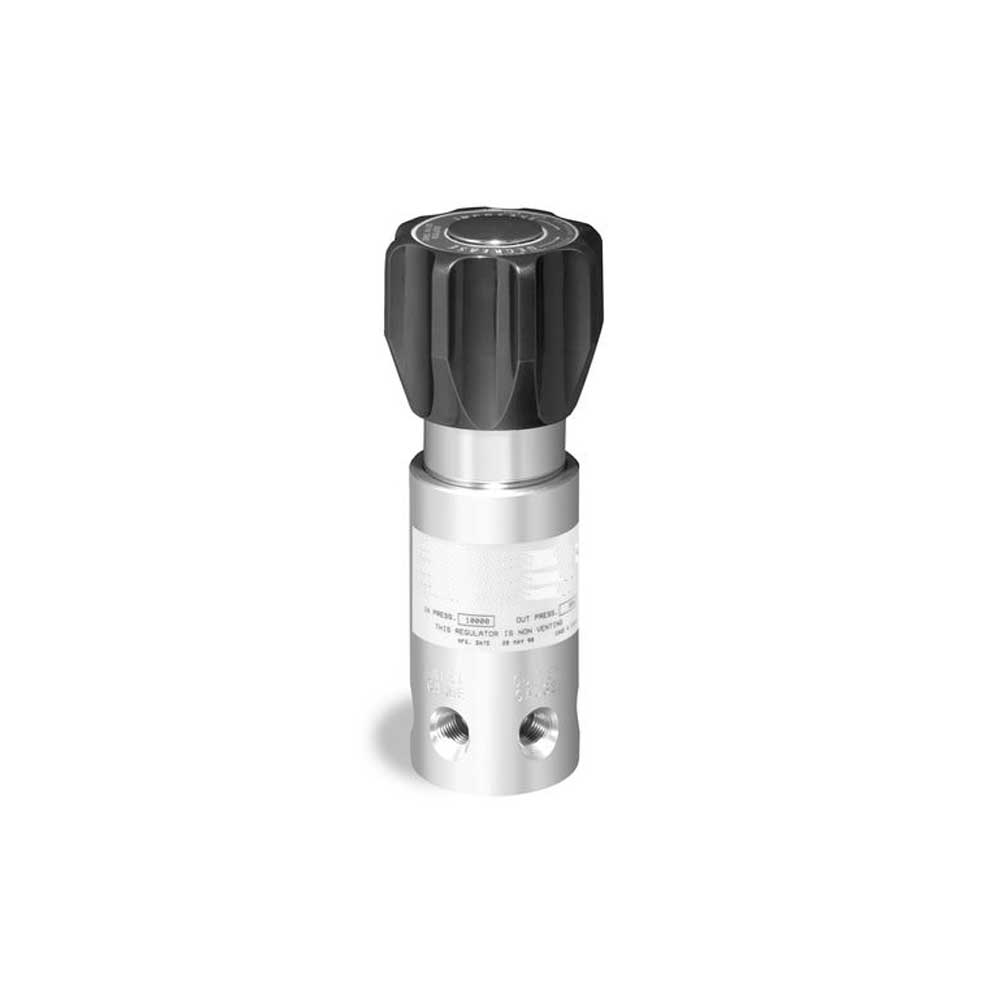

The 44-1100 Series regulators are piston-sensed pressure regulators designed for high outlet pressures and low flow rates with venting capability. With control pressure ranges from 414 to 690 bar (6,000–10,000 psig), low torque adjustment, and a large handwheel, they are available with several pressure range options. Ideal for use in Ground Support Equipment (GSE), back pressure panels, aircraft refueling carts, research and development laboratories, and calibration systems.

Maximum Inlet Pressure

Stainless steel: 690 bar / 10,000 psig
Brass: 414 bar / 6,000 psig

Outlet Pressure Ranges

0–34.5; 0–55.2; 0.69–103; 1.0–172; 1.7–276; 3.4–414 bar
0–500; 0–800; 10–1,500; 15–2,500; 25–4,000; 50–6,000 psig

Materials of Construction

• Body: Brass, Stainless Steel 303 or 316
• Main valve seat: Vespel®
• Vent valve seat: CTFE
• O-rings: Buna-N
• Back-up rings: Teflon®
• Other parts: Stainless Steel Series 300

Filter Element

• Brass body: 40 micron (nominal) – Bronze
• Stainless steel body: 15 micron (nominal) – Stainless Steel 316

Operating Temperature

−40 °C to +75 °C / −40 °F to +165 °F

Port Size and Type

1/4 inch NPTF

Flow Coefficient

Kv = 0.06

Control Mechanism

Spring-loaded

Weight

2.2 kg / 4.8 lbs
