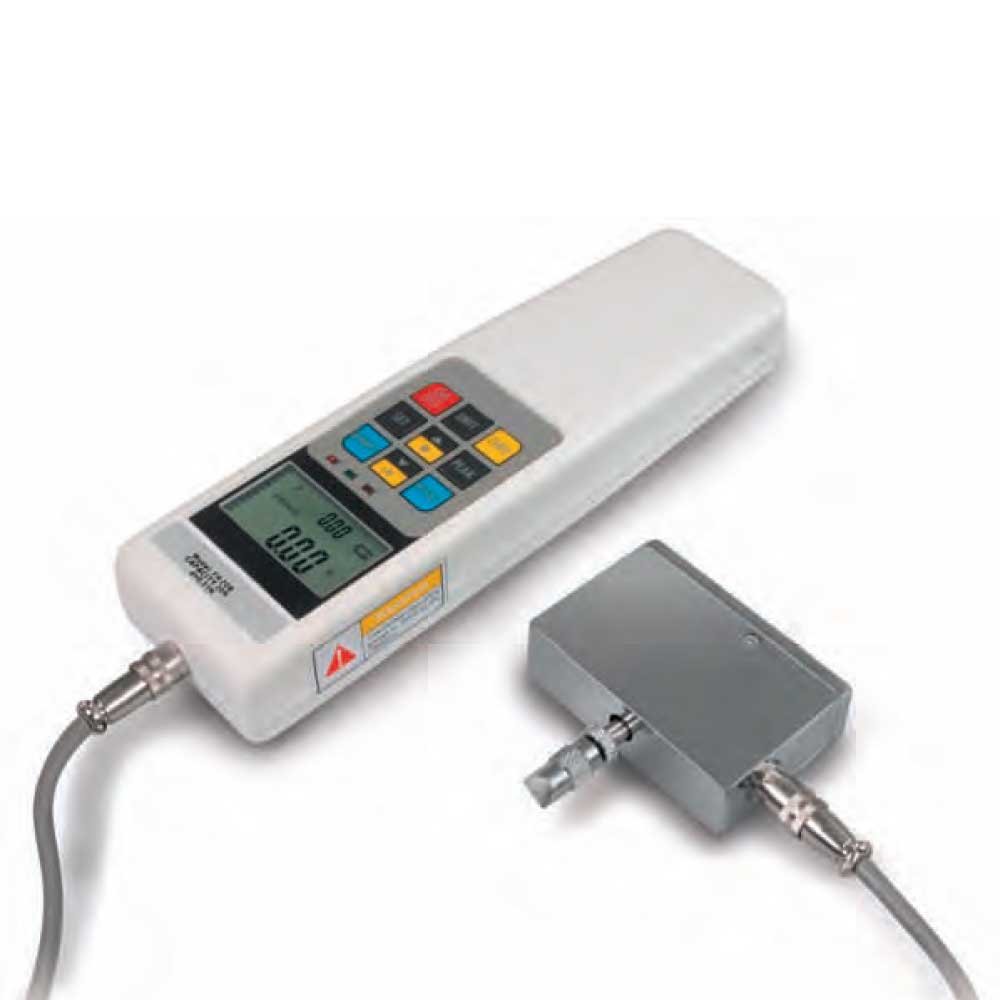

FH-EXT – Force-measurement device with external, high-resolution measuring cell for small loads


  • External sensor: Dimensions LxWxH 76x65x22 mm, net weight approx. 0.3 kg (each without load cell)
  • Cable length of display unit approx. 2 m
  • Tolerance 1 % of [Max]
  • Selectable units: N, kg, lb
  • Overload protection: 150 % of [Max]
Data sheet
Add to your Quote List
  • Force measuring device combination consisting of an external measuring sensor and a high-resolution display unit
  • Ideal for measuring very small forces or loads in machines and systems
  • Peak hold function for capturing the maximum value and track function for continuous measurement display
  • Push & pull function for measuring tensile and compressive forces
  • Mini statistics package: Average calculation of up to 10 stored measured values, as well as Min, Max, n
  • Limit value function: Input of an upper/lower limit value. An optical and acoustic signal supports the measurement process
  • Internal rechargeable battery operation, charger included
  • Only one load cell can be connected per display unit
  • Suitable for all SAUTER test stands (please specify the test stand when ordering)
  • External sensor: Dimensions L×W×H 76x65x22 mm, net weight approx. 0.3 kg (each without load cell)
  • Cable length of display unit approx. 2 m
  • Tolerance 1 % of [Max]
  • Selectable units: N, kg, lb
  • Overload protection: 150 % of [Max]

Datasheets








FH-EXT - Kraftmessgeräte mit externen, hochauflösenden Messzellen für kleine Lasten
Technical advice: 03303 / 50 40 66

Technical advice for this product
