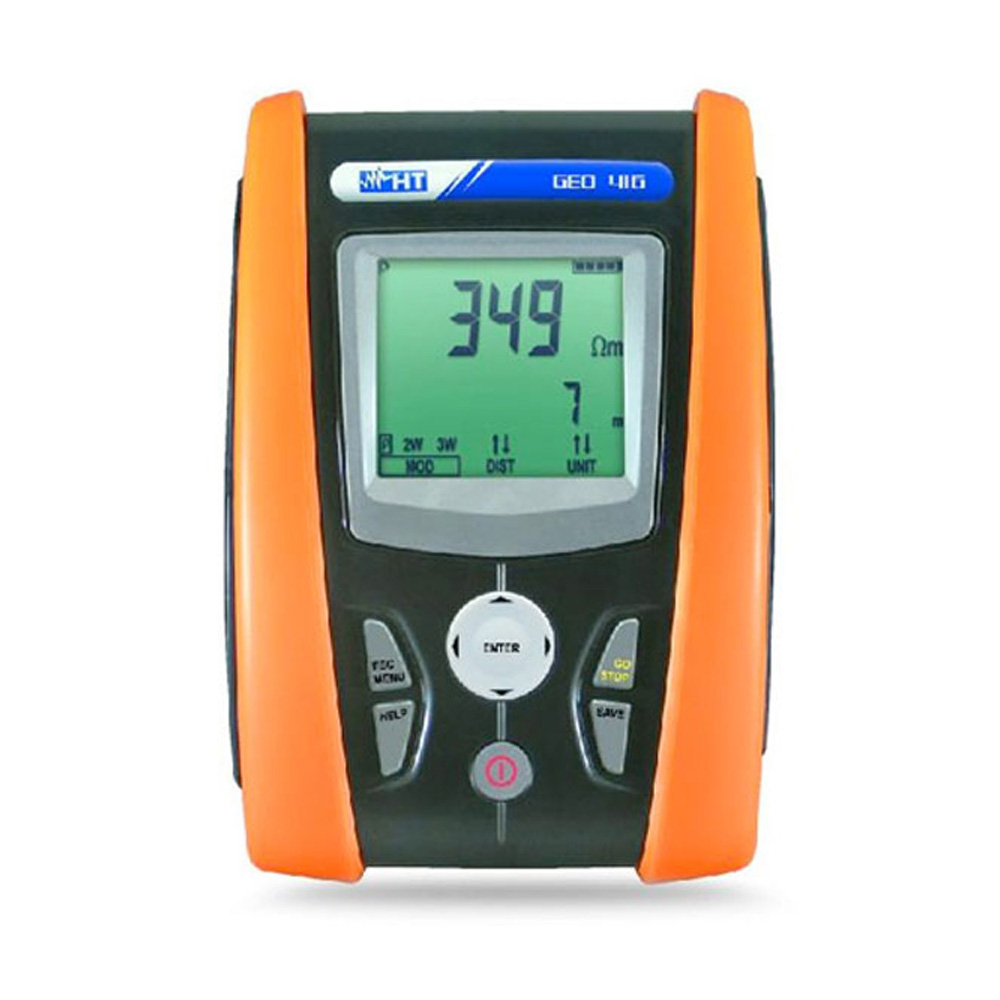

GEO416 Earth Ground Tester with Storage and Downloand capabilities


GEO416 measures earth resistance with 2 wires, 3 wires and 4 wires by voltammetric method and ground resistivity with storage and download capabilities.

Datasheet

The 2-wire method, by taking advantage of appropriate external masses as a reference (metal surfaces, tubes, neutral conductor, etc.), is particularly useful in private environments where, because of logistic problems, it is not possible to use the 3-wire method. The device allows carrying out measurements with a wide measuring range (up to 50kOhm) with an efficient internal compensation of the disturbance effects found on the installations. GEO416 is provided with an internal memory for saving measurements and with an optical/USB interface for transferring measured data onto the PC



Functions
TRMS
Measuring range 50KΩ
Earth resistance by 2- and 3-wire method
Ground resistivity by 4-wire method
Compensation of disturbance voltages
Compensation of test cables
Protection category CAT III 240V
Detection of disturbance currents on measurement
LCD display
Backlight
Auto Power OFF
Help on line on the display
Internal memory for measured data saving
Optical/USB serial port for PC connection
Size (LxWx H) (mm) 225x165x75
Weight in grams (batteries included) 1000
Guidelines
  •  CEI 64-8
  •  CEI 64-8 612.6.2
  •  CE MARK
  •  DPR 462 del 22/10/2001
  •  EMC 2014/30/EU
  •  EMC: IEC/EN61326
  •  IEC/EN61010-1
  •  IEC/EN61557-1
  •  IEC/EN61557-5
  •  LVD 2014/35/EU








Technical advice: 03303 / 50 40 66

Technical advice for this product
