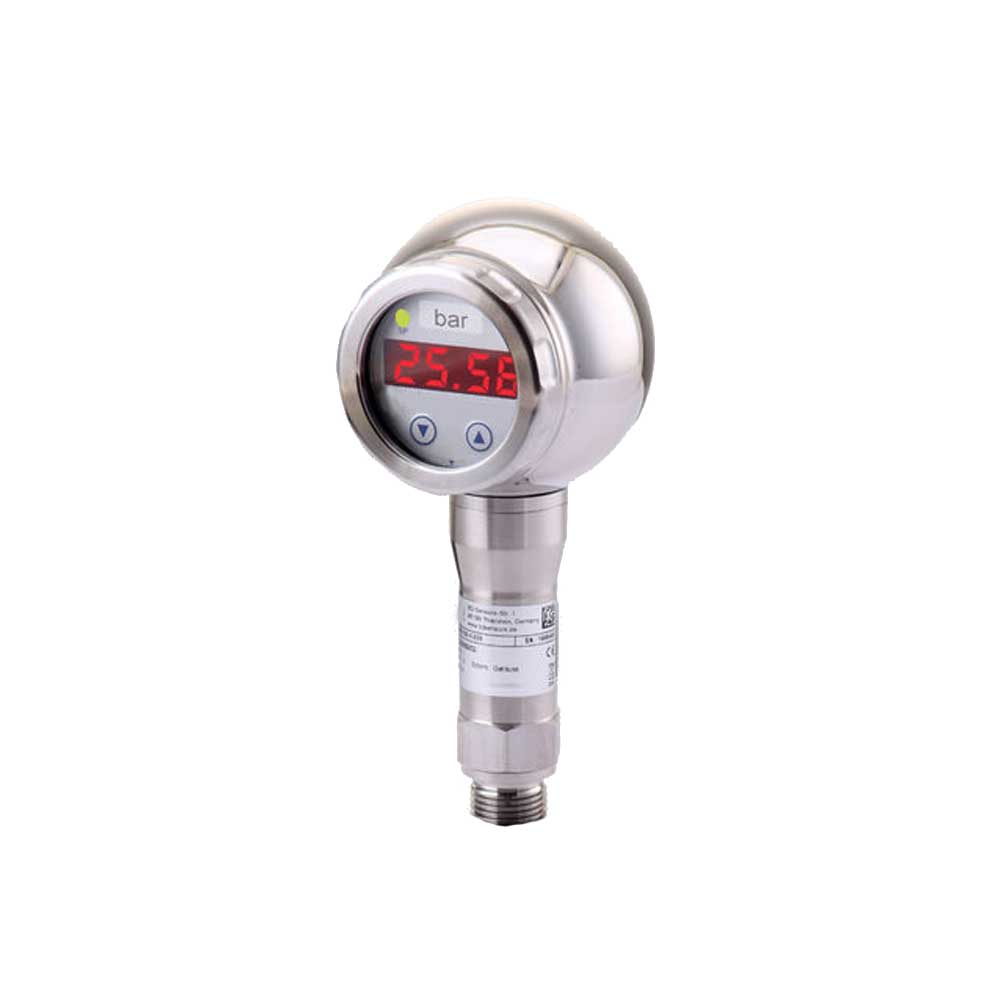

The electronic pressure switch IDS 400 is the successful combination of

– intelligent pressure switch
– digital display

and has been specially designed for numerous applications in various industrial sectors.

As standard the IDS 400 offers a PNP contact and a display module, which is mounted rotable in the ball housing. Additional optional versions like e.g. an intrinsically safe version, a second contact and an analogue output complete the profile.

Features

• nominal pressure: 0 … 100 mbar up to 0 … 600 bar
• accuracy: 0.25 % / 0.35 % FSO
• indication of measured values on a 4-digit LED display
• rotatable and configurable display module
• 1 or 2 independent PNP contacts, freely configurable

Optional Features

• IS-version
  Ex ia = intrinsically safe for gases and dust
• pressure sensor welded
• customer specific versions
