MiniTest 70FN – Coating thickness measurement

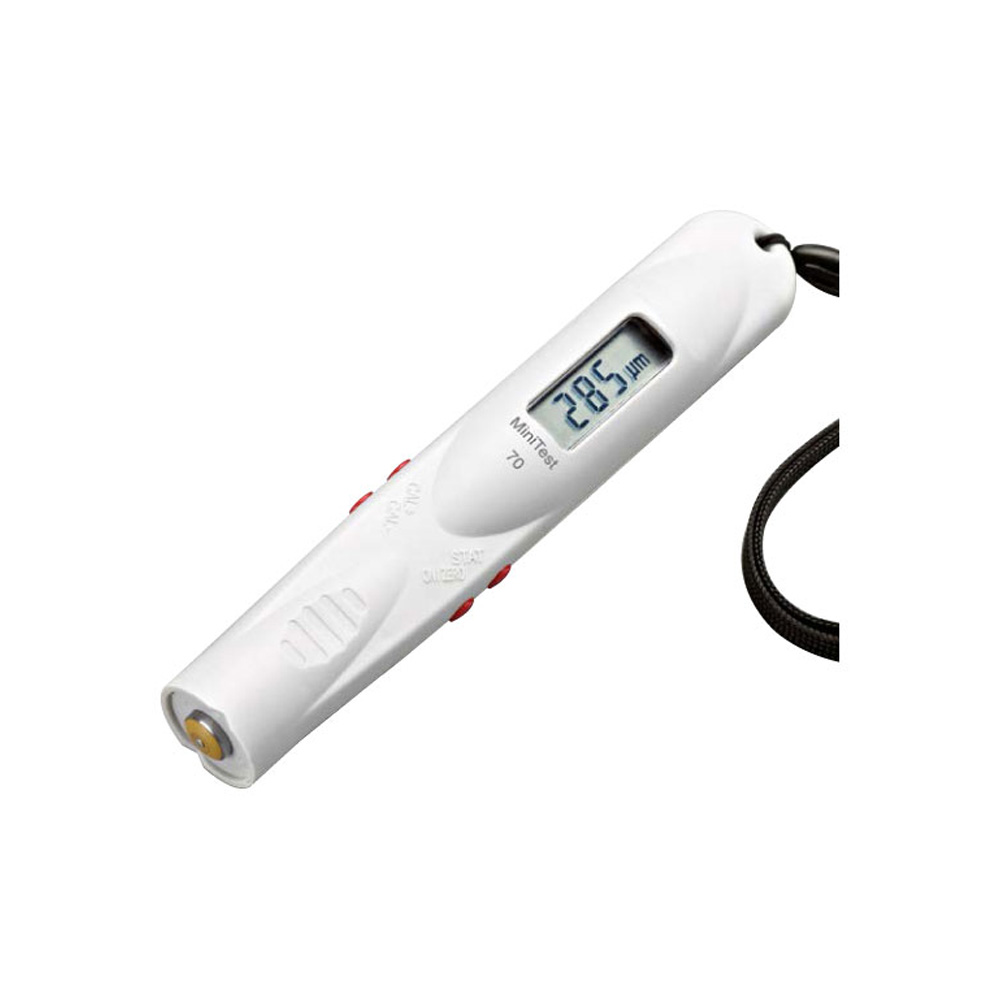

MiniTest 70: Coating thickness measurement in a practical pen format

MiniTest 70 is a lightweight and practical coating thickness measurement gauge in pen format with inbuilt sensors. It comes with several benefits:

• Precise measurement of coating thickness up to 3mm (F) or 2.5mm (N)
• A dual sensor automatically identifies the substrate and sets the appropriate measuring procedure: eddy currents or magnet-inductive (excluding model E)
• Wear-resistant probes for long service
• Weighs only 80 grams

MiniTest 70 F

With statistics display (number of readings taken, mean values, standard deviation, maximum, minimum).
Suited only for ferromagnetic substrates (e.g. steel).
Measuring range 0 to 3 mm / 118 mils.
Enables 1-point and 2-point calibrations.

MiniTest 70 FN

With statistics display (number of readings taken, mean values, standard deviation, maximum, minimum).
Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.).
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
Enables 1-point and 2-point calibrations.

MiniTest 70 B-FN

Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.)
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
Enables 1-point calibrations.

MiniTest 70 E-FN

Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.).
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
