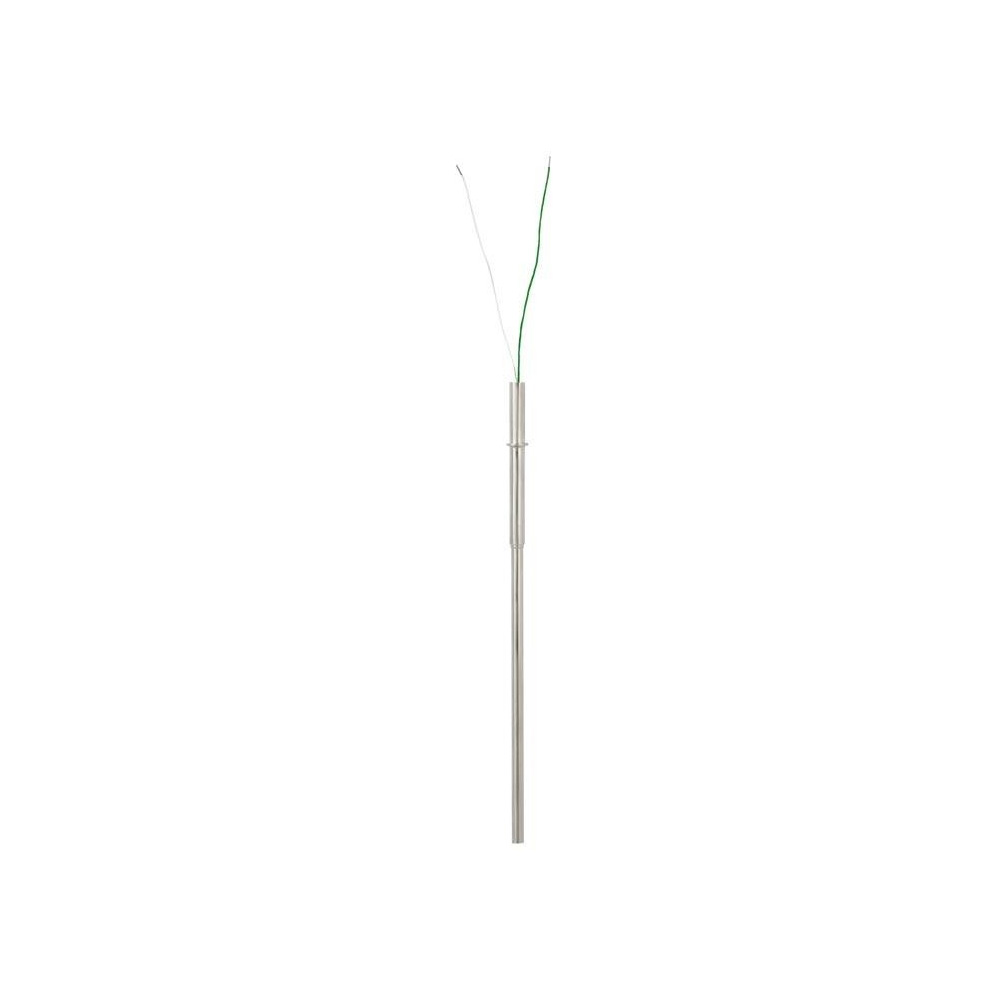

WIKA Model TC12-A – Measuring insert for process thermocouple

The measuring inserts described here are intended for installation in model TC12-B or TC12-M process resistance thermometers (see figures at right). Operation without thermowell is appropriate only in special cases.

The measuring insert is made of flexible, mineral-insulated sheathed cable. The sensor is located in the tip of the measuring insert. Type of sensor, number of sensors and accuracy can each be selected to suit the respective application.
