DatasheetThe GRAETZ probe program consists of calibratable gamma probes for the equivalent dose rate Ḣ*(10) and pulse probes for extending the measuring range of the dose rate meters from the GRAETZ-X5C series as well as the GammTwin S. Measuring probes are particularly suitable for use in poorly accessible measuring locations or for measurements from a safe distance. Here you get an overview of the different measuring probes from the GRAETZ probe program.
- Can be connected directly or via a probe cable up to 100 m long to the basic instrument; in calibratable use up to 30 m
- Automatic display of the types of radiation that can be detected with the probe on the basic unit
- Automatic probe detection by the basic unit
- For measurements in poorly accessible measuring locations

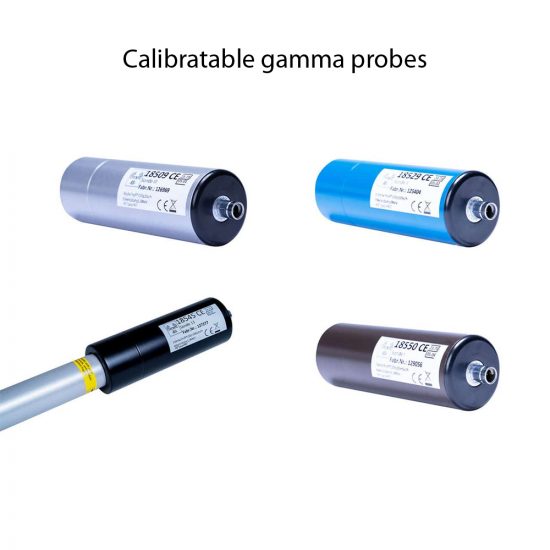

Calibratable gamma probes
for dose rate meters from the GRAETZ-X5C series
- Automatic adoption of the probe-specific calibration factor by the basic unit
- Calibratable gamma probes can be individually calibrated independently of the basic instrument
- Underwater measurements up to 30 m depth with optional pressurized water protection housing
- Temperature range: -30 °C to +60 °C
- Measured variable: H*(10)
Technical Data
Overview GRAETZ gamma probes, calibratable
| Type | Energy sector | Measuring range |
| 18509 CE | 55 keV – 1.3 MeV |
50 μSv/h – 1 Sv/h |
|
18529 CE |
70 keV – 3 MeV |
0.5 mSv/h – 10 Sv/h |
|
18545 CE |
40 keV – 1.3 MeV |
150 nSv/h – 200 μSv/h |
|
18550 CE |
40 keV – 1.3 MeV |
10 μSv/h – 20 mSv/h |
For detailed technical data, please refer to our product data sheet for this article.

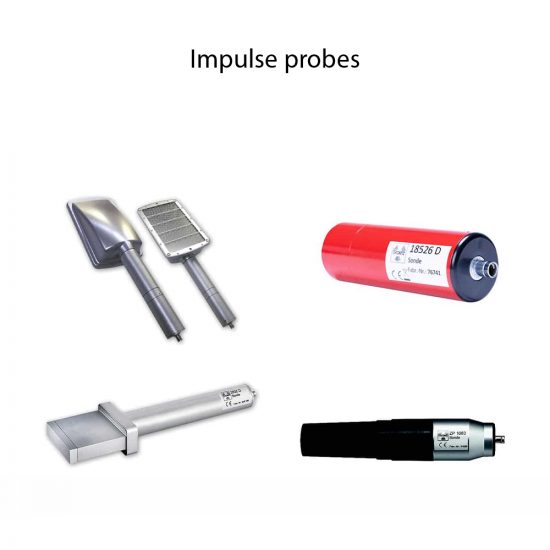

Impulse probes
for dose rate meters from the GRAETZ X5C series and GammaTwin S
- Probes for α-, β- and γ-contaminations
- High sensitivity scintillation probe for β-/γ-detection
- Immersion probe for measurements in liquids
- Display range on basic unit 0 – 20 kImp/s
- Corresponding to the dose rate measurement with the gamma probes, a pulse rate measurement is carried out here with the basic unit, instead of dose measurement a summation of the pulses is carried out
- Instead of the four dose and dose rate warning thresholds, one pulse or pulse rate warning can be set for the basic unit in each case
Technical Data
Overview GRAETZ gamma probes, calibratable
| Type | Radiation type | Detector |
|
18526 D |
α, β, γ |
GM counter tube; effective area 6.1 cm2 |
|
Immersion probe |
β, γ |
GM counter tube; effective length 150 mm |
|
Contamination probe ABG170 |
α, β, γ |
Plastic scintillator; effective area 170 cm2 |
|
NaI scintillation probe 2002 |
β, γ |
NaI(Tl) scintillator; effective volume 70x70x13 mm |
For detailed technical data, please refer to our product data sheet for this article.
