Mounting Brackets for Gauge Valves with Shaft Ø 26 mm

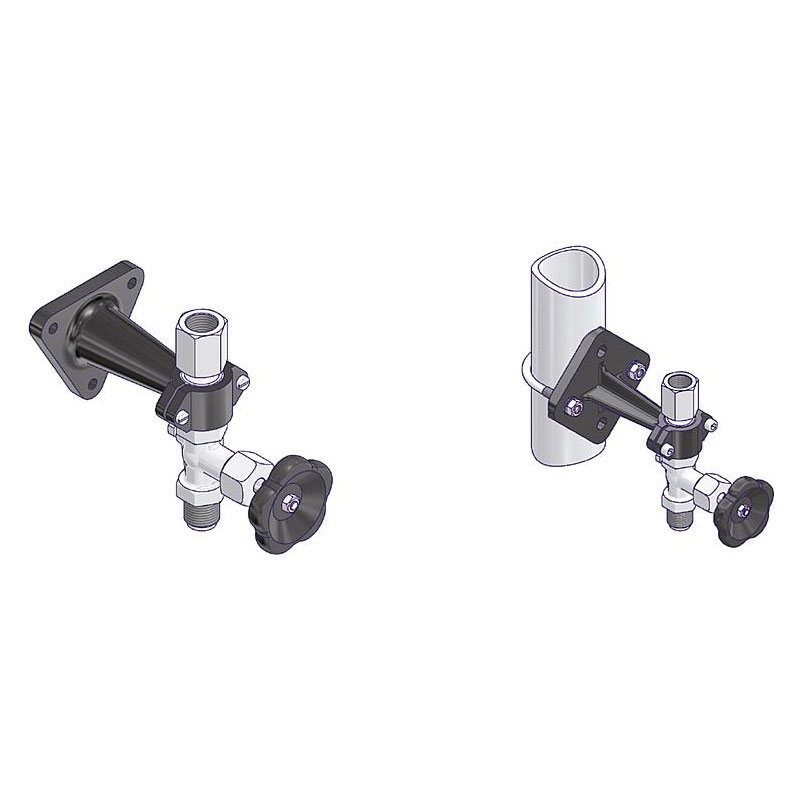

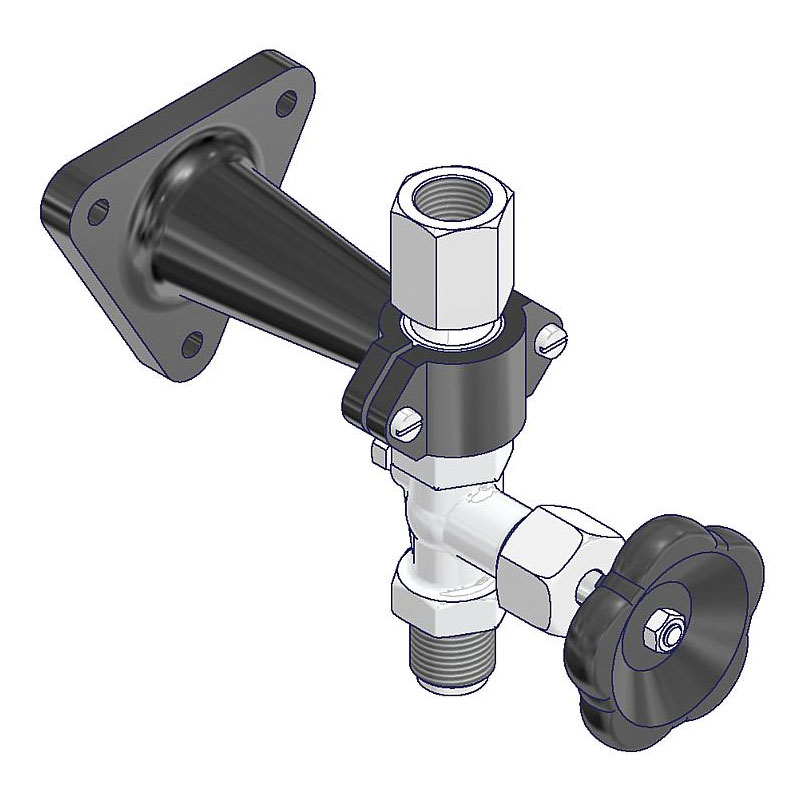

The Mounting Brackets fit to AS-Schneider Gauge Valves with shaft Ø 26mm – generally Type B Gauge Valves according to DIN 16270 – DIN 16272 but also Adapters according to DIN 16281. Mounting bracket type A and H are standardized in DIN 16281. The brackets are designed for panel, wall and 2″ pipe mounting (except Type H – not suitable for 2″ pipe mounting) and give full clearance for ease of handle operation.

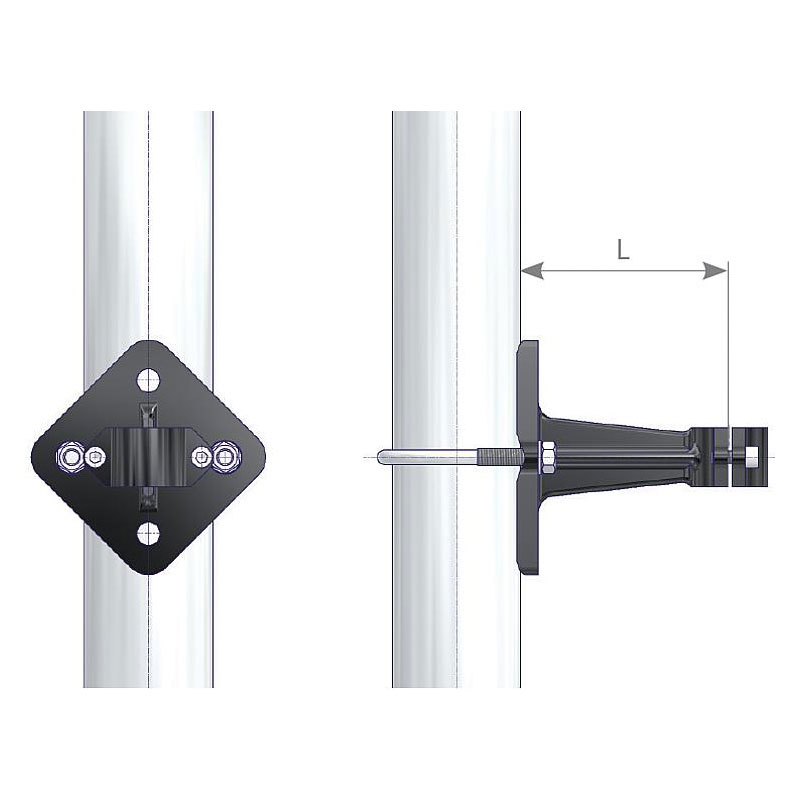

The standard extension is L = 100mm. Mounting Bracket Type H is also available with 60 and 160mm extension.

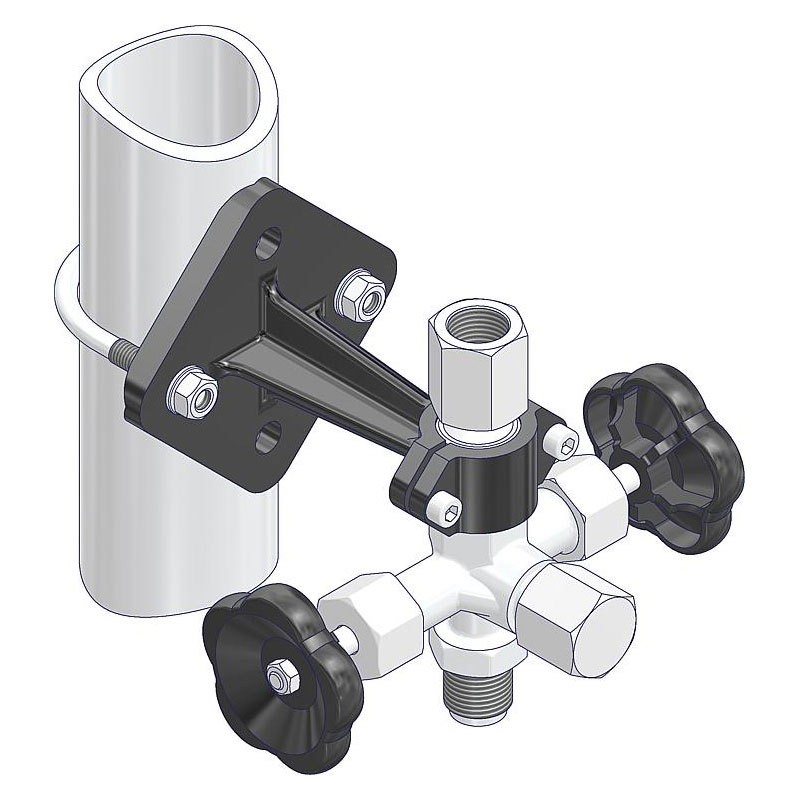

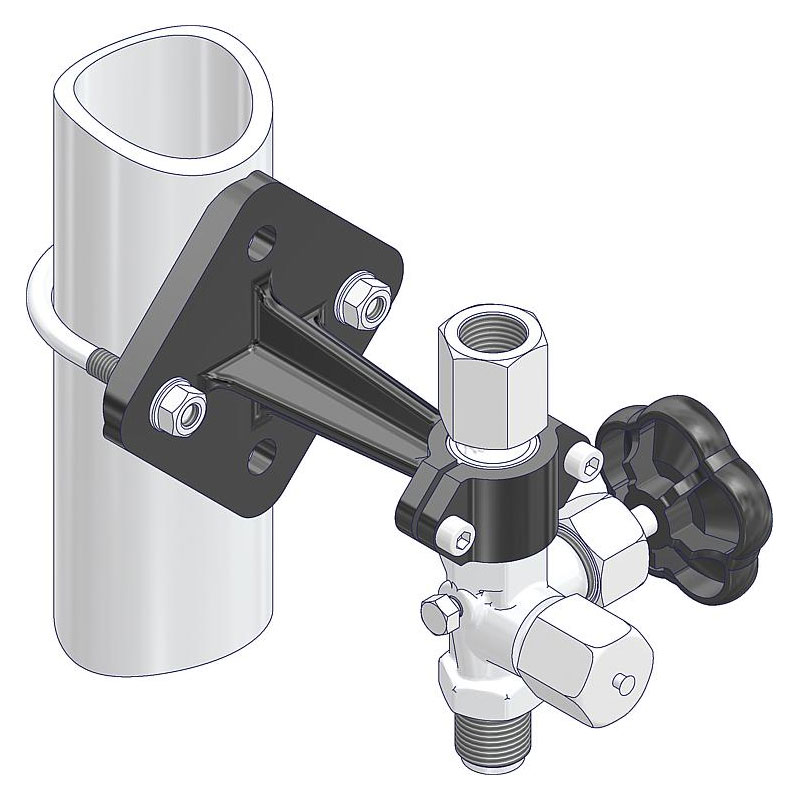

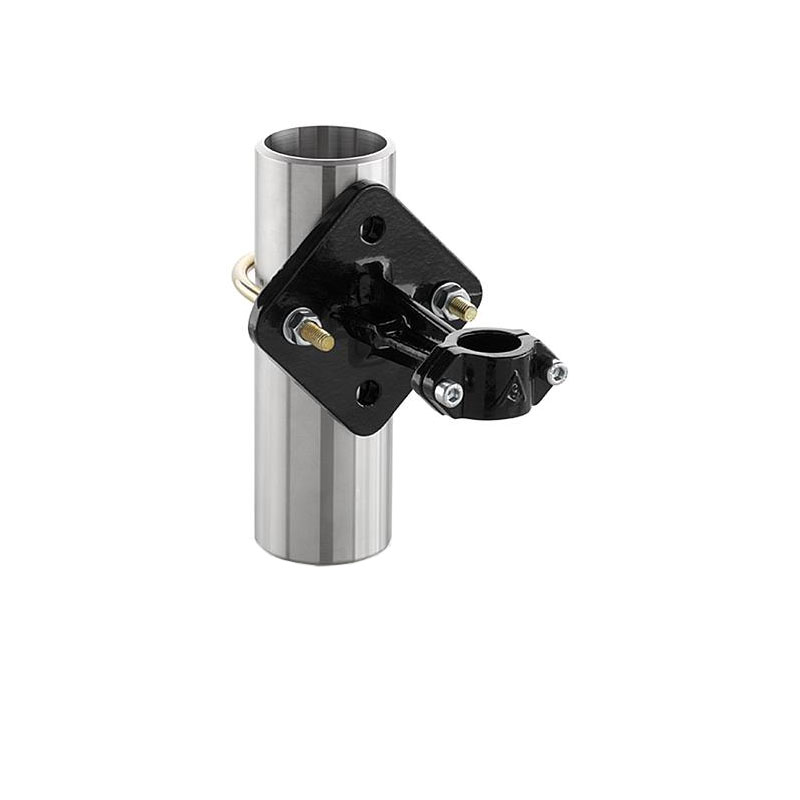

The Mounting Bracket Kits for 2″ Pipe Mounting are containing:

  • 1 Mounting Bracket
  • 1 ‘U’ Bolt
  • 2 Washers – 8.4
  • 2 Hexagon Nuts M8
Datasheet
Add to your Quote List

*The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

Mounting Brackets

L (mm) Design Material Installation Method Part Number
60 DIN 16281 Type H Aluminium, coated For wall mounting S006.12.105
100 DIN 16281 Type H Aluminium, coated For wall mounting S006.12.115
160 DIN 16281 Type H Aluminium, coated For wall mounting S006.12.125
100 DIN 16281 Type H Stainless steel For wall mounting S006.12.215
100 DIN 16281 Type A Malleable cast iron, galvanized and coated For wall mounting N006.12.110
100 DIN 16281 Type A Malleable cast iron, galvanized and coated For 2" pipe mounting S006.39.100.11

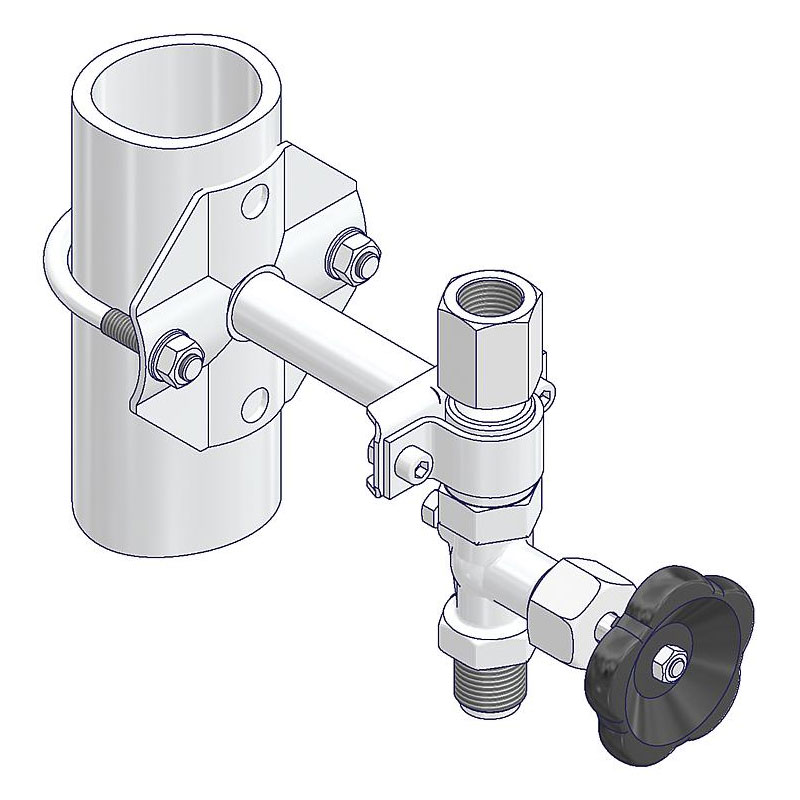

100 AS-Schneider Stainless steel For wall mounting S006.12.216.54
100 AS-Schneider Stainless steel For 2" pipe mounting S006.12.217.54

Mounting kit for 2" pipe mounting made of carbon steel with galvanized surface.
