DatasheetProduct Description

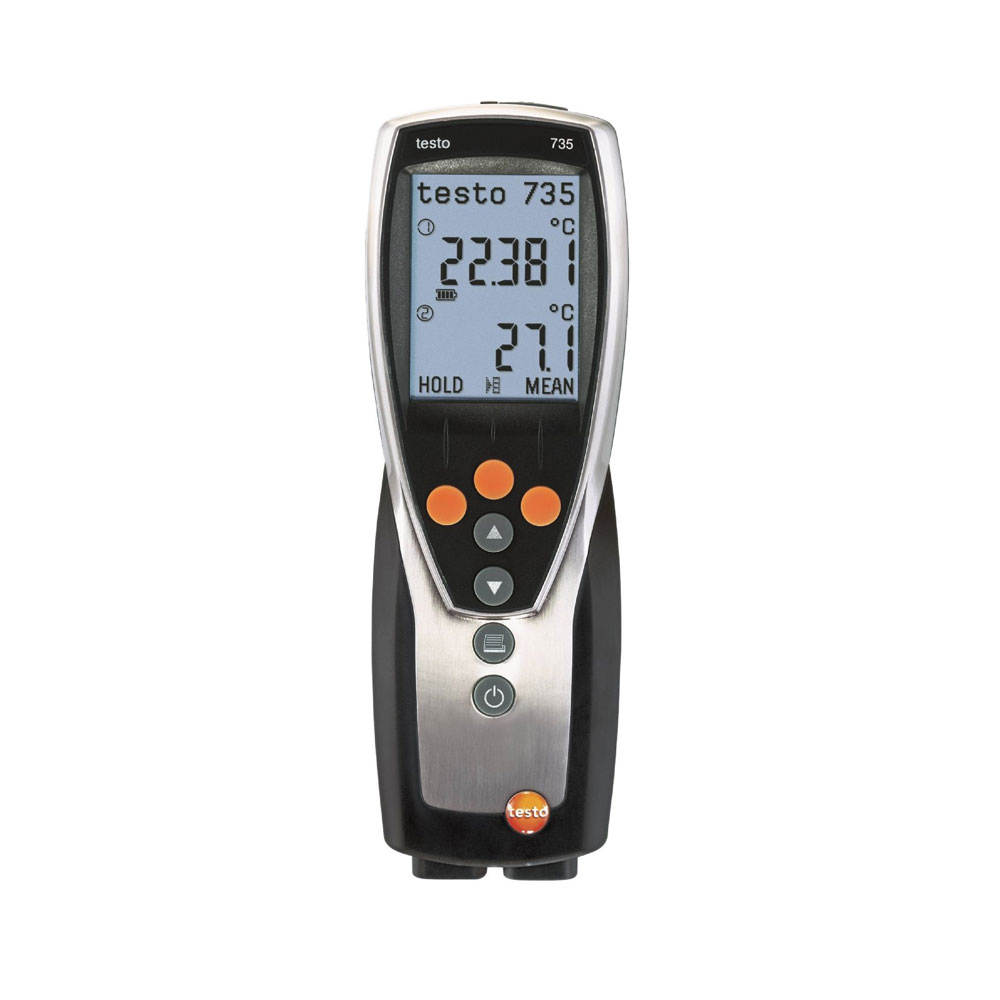

The testo 735-2 multichannel thermometer has a sensor connecting point for a highly-accurate Pt100 sensor, and two connecting points for quick type K, T, J, and S thermoelement sensors. Six sensors, 3 of them wireless temperature sensors, can be connected to the meter. A wide selection of immersion / penetration / surface sensors is available to help you carry out quick and accurate temperature measurements on a variety of different surfaces and media.
The high precision Pt100 immersion / penetration sensor (optional) has a system accuracy of 0.09 °F, and a resolution of 0.0018 °F. This makes the testo 735-2 ideal for use as a working standard.For measuring, saving, and analyzing temperature measurements with multiple profiles
The testo 735-2 allows you to carry out quick and precise temperature measurements, save up to 10,000 readings, and create as many as 99 measuring sites and multiple user profiles.
You can also save individual protocols or measurement series for each measuring site, and select a memory cycle from 0.5 seconds to 24 hours. The software (included) allows you to save and analyze measuring data as a table or graphic. Optional wireless turbo printer for on-the-spot print outs.Highly precise – highly practical
The testo 735-2 provides you with delta T and min/max/avg values. The readings are presented on a backlit display (ideal in poorly lit conditions). An acoustic alarm is triggered when thresholds are breached. IP65 rated and EN 13485 certified / HACCP compliant / HACCP International certified.
Delivery Scope
PLEASE NOTE: sensor required (not in scope of supply).
| Temperature – Pt100 | |
|---|---|
| Measuring range | -328.0° to 1472.0 °F / -200 to +800 °C |
| Accuracy | ±0.4 °F (-148.0° to 391.8 °F) / ±0.2 °C (-100 to +199.9 °C)
±0.2 % of mv (Remaining Range) |
| Resolution | 0.1 °F / 0.05 °C |
| Temperature – Type K TC | |
|---|---|
| Measuring range | -328.0° to 2498.0 °F / -200 to +1370 °C |
| Accuracy | ±0.5 °F (-76.0° to 140.0 °F) / ±0.3 °C (-60 to +60 °C)
±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – TC Type T (Cu-CuNi) | |
|---|---|
| Measuring range | -328.0° to 752.0 °F / -200 to +400 °C |
| Accuracy | ±0.5 °F (-76° to 140 °F) / ±0.3 °C (-60 to +60 °C)
±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – Type J TC | |
|---|---|
| Measuring range | -328.0° to 1832.0 °F / -200 to +1000 °C |
| Accuracy | ±0.5 °F (-76.0° to 140.0 °F) / ±0.3 °C (-60 to +60 °C)
±(0.4 °F + 0.3 % of mv) (Remaining Range) / ±(0.2 °C + 0.3 % of mv) (Remaining Range) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – TC Type S (Pt10Rh-Pt) | |
|---|---|
| Measuring range | 32.0° to 3200.0 °F / 0 to +1760 °C |
| Accuracy | ±1.8 °F (32.0° to 3200.0 °F) / ±1 °C (0 to +1760 °C) |
| Resolution | 1.0 °F / 1 °C |
| General technical data | |
|---|---|
| Dimensions | 9 x 3 x 2 in. / 220 x 74 x 46 mm |
| Operating temperature | -4.0° to 122.0 °F / -20 to +50 °C |
| Housing | ABS / TPE / Metal |
| Protection class | IP65 |
| Standards | EN 13485 |
| Battery type | Alkaline, type AA |
| Storage temperature | -22.0° to 158.0 °F / -30 to +70 °C |
| Weight | 15 oz. / 428 g |
