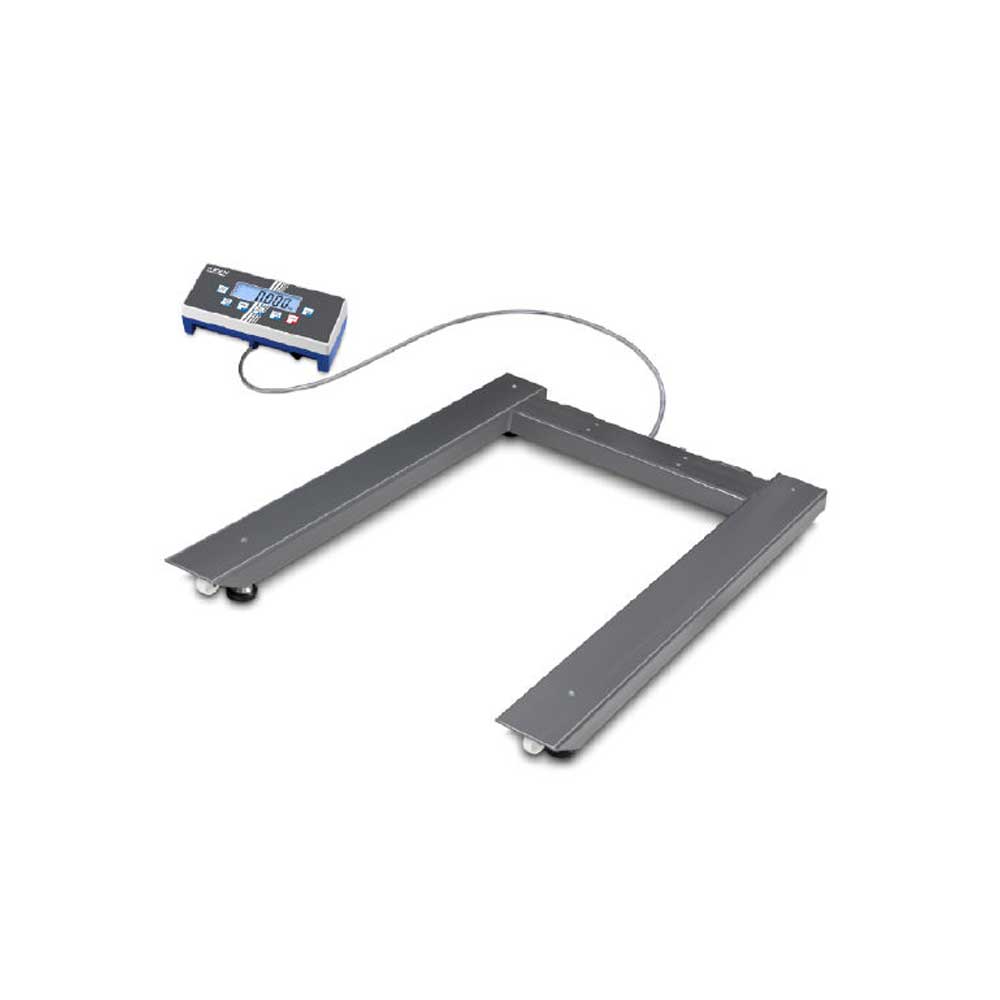

Pallet scale UID – High-resolution dual-range pallet scale with calibration approval [M] and a large number of data interfaces


    • NEW: Dual-range pallet scale! Ideal, when high maximum loads need to be weighed, but in the lower load range you still need high resolution. This means that two balances can be replaced with one – which saves space and money!
    • High mobility thanks to battery operation for display device and platform
    • Load support: steel, powder coated, 4 silicone-coated aluminium load cells, protection against dust and water splashes IP67
    • The scale can be easily transported using 2 rollers and a handle and does not require much storage space
    • Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer
    • Dosage aid controlled through the display. Only possible through RS-232 data interfac
    • NEW: from now on the calibrated models can be operated with an optional data interface, such as Bluetooth, WiFi, LAN (optional alibi memory required). This enables convenient data transfer of weighing results in legal-for-trade applications
    Datasheet
    User Manual
    Add to your Quote List

    Possible application scenarios for interfaces:

    – RS-232, included in the scope of delivery, e.g. for connecting a PC or printer
    – LAN, WiFi, Bluetooth, USB for PC, optional, e.g. for connecting a PC or peripheral device
    – USB for USB stick, optional, e.g. for exporting alibi data to a USB stick or hard disk
    – Digital I/O, including signal lamp, optional, e.g. for optical support during weighing with tolerance range, piece counting etc.

    Protective working cover included with delivery



    Model

    Weighing
    range
    [Max] kg

    Readout

    [d] g

    Verific.
    value
    [e] g

    Option
    Verification

    Option
    DAkkS
    Calibration
    Certificate

    UID 600K-1M
    600
    200
    200
    1
    1
    UID 1500K-1M
    1500
    500
    500
    1
    1
    UID 3000K-0M
    3000
    1000
    1000
    1
    1
    Dual-range balance switches automatically to the next largest weighing range [Max.] and readout [d].
    UID 600K-1DM
    300 | 600
    100 | 200
    100 | 200
    1
    1
    UID 1500K-1DM
    600 | 1500
    200 | 500
    200 | 500
    1
    1
    UID 3000K-0DM
    1500 | 3000
    500 | 1000
    500 | 1000
    1
    1
