- Module dedicated to Nemo SX System.
- Multifunction Measuring module for high currents.
- Measures the main electrical data of a single–phase or three–phase network.
- The insertion is done by open flexible Rogowski coils.

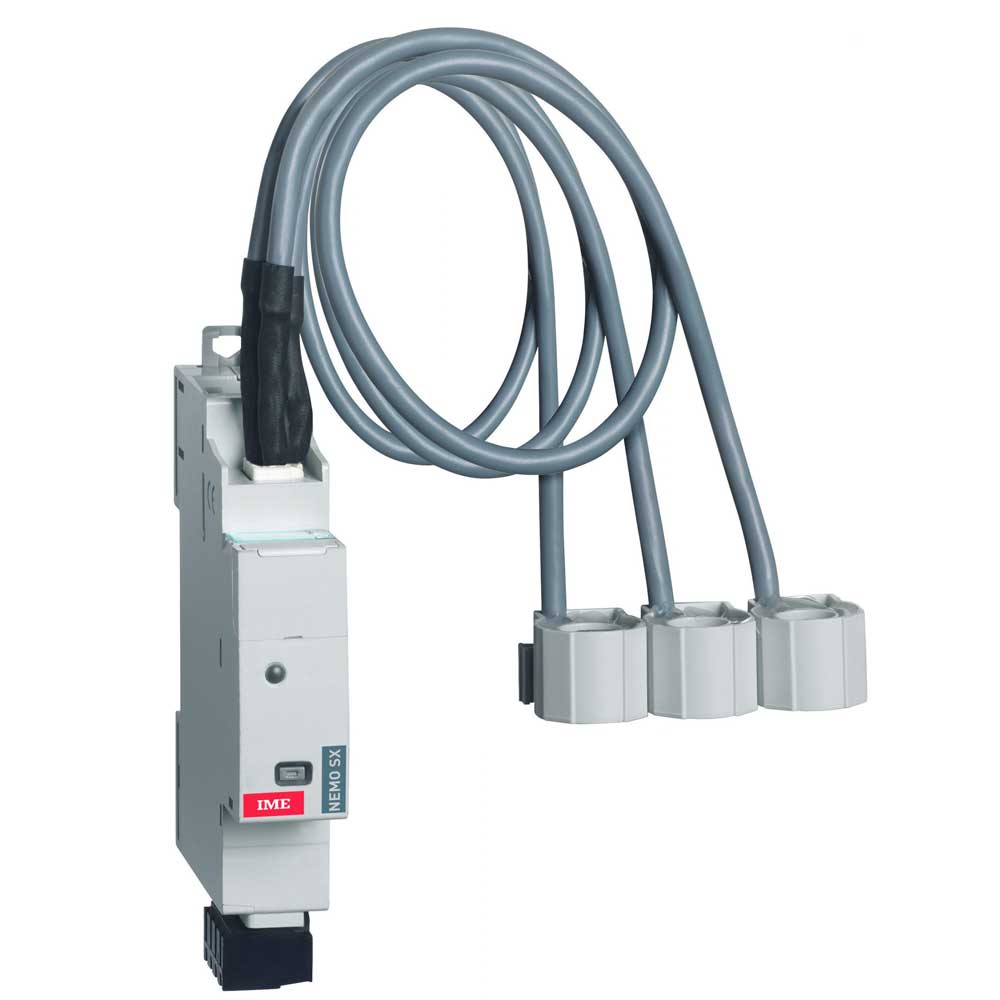

Nemo SX Three Phase module through Rogowski sensors (125A max) SXMT125
Multifunction measuring module delivered with n°3 centering plastic supports and flexible Rogowski coils to measure a three phase circuit up to 630 A
AUX | derived from the SXAA230 power supply module |
---|---|
FORMAT | 1 DIN module |
CURRENT | minima 12,5 A, base 250 A, massima 630 A |
VOLTAGE | 110…500 V phase-phase |
VOLTAGE OPTIONS | direct |
CURRENT OPTIONS | da 3 bobine flessibili e apribili Rogowski Ø50 mm |
TYPE | Multifunction measuring module delivered with n°3 centering plastic supports and flexible Rogowski coils to measure a three phase circuit up to 630 A |
MAIN | three-phase 3/4 wire unbalanced load |
DISPLAY | None |
