FULLTEST 3 – Multifunction Tester for safety of machinery IEC/EN60204-1:2016 and low voltage switchgears and controlgears IEC/EN61439-1-2:2011

Multifunction Tester for safety of machinery IEC/EN60204-1 and low voltage switchgears and controlgears IEC/EN61439-1-2

IEC/EN60204-1 Measuments:

Power Frequency Dielectric withstand voltage with test voltage of 1000VAC

Testing protection against indirect contact:

  • Continuity of protective conductors with test current 200mA
  • Automatic disconnection of the supply (RCD, MCB, Fuse)​
  • RCD tripping (RCD AC, A, B) up to 1A on TT Systems
  • Magneto-thermal protections (MCB curve verificaiton on B, C, D, K) and fuses (gG, aM) on TN Systems

​Insulation resistance measurement with test voltage of 500VDC

Discharging of residual voltage V<60V in 5sec/1sec



IEC/EN61439-1-2 Measurements:

Clearances and Creepage distances:

  • Dielectric withstand voltage with test voltage of up to 3400/5100VAC

Continuity of earth system and protective conductors ≥10A

Power Frequency Dielectric withstand voltage with test voltage of 1800VAC

Alternative power-frequency voltage test up to 5100VAC

Test on enclosures of insulating material:

  • ​Dielectric Withstand voltage with test voltage up to 2835V

Discharging of residual voltage V<60V in 5sec/1sec

Datasheet
Add to your Quote List

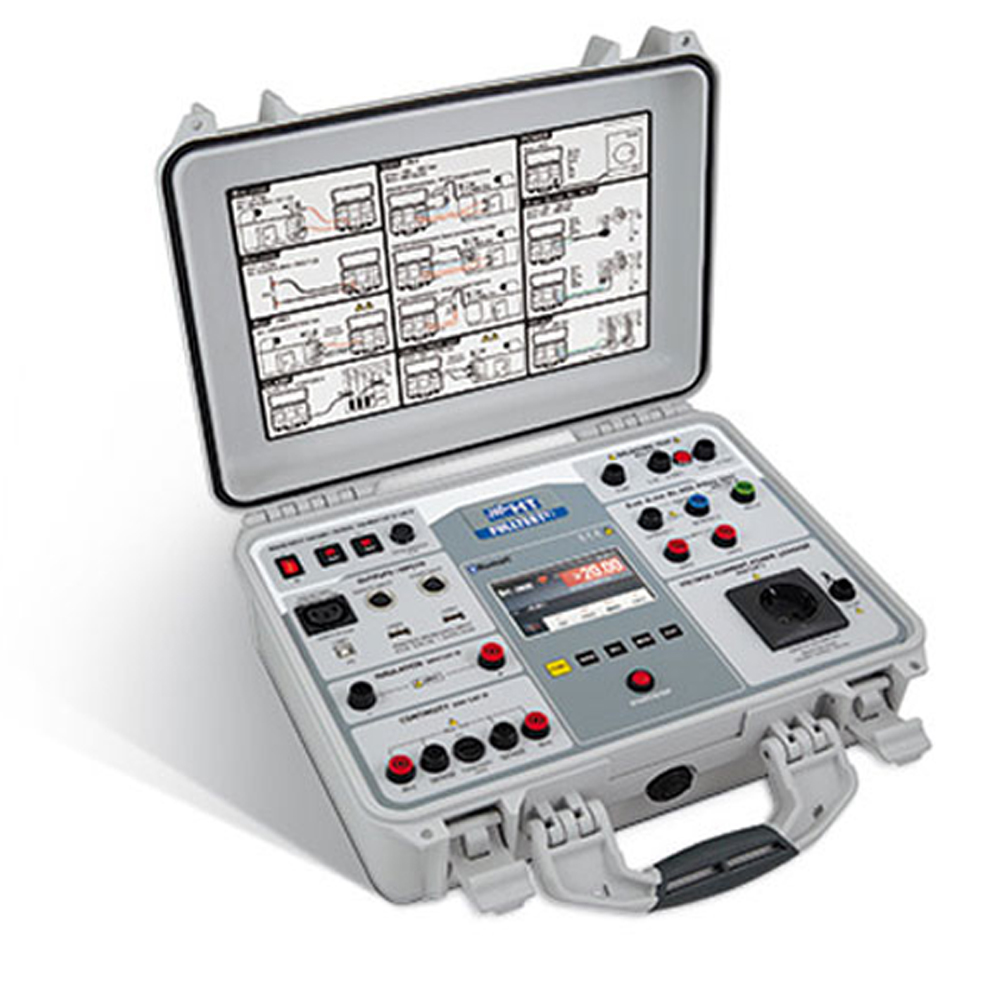

HT Instruments offers a cutting-edge device to carry out all measurements required by the new laws as regards tests to be performed on electric switchboards and machines IEC/EN60204-1 and IEC/EN61439-2. Further to measurements of protective conductors’ continuity, insulation and dielectric strength, FULLTEST3 is capable of carrying out tests on RCDs type A, AC and B, General, Selective and Delayed, measurements of Line/Loop impedance also with high resolution 0.1mΩ (with optional accessory IMP57), measurement of non-trip earth resistance and leakage current with clamp transducer. It can also carry out test on breaking capacity, protection tripping, I2t tests relevant to magneto-thermal circuit breakers in curve B, C, D, K and fuses type gG and aM. The device is also provided with a “touch-screen” colour display and 3 USB ports for connection to PC, USB pen drive, USB printers and possible bar code readers.



Functions
Continuity of protective circuit with 200mA
Continuity of protective circuit with I>10A, V<12V
Continuity of protective circuit with I>25A, V<12V
Insulation with test voltages 100, 250, 500, 1000VDC
Dielectric strength with voltage programmable from 250V to 5100VAC
Discharge time/residual voltage on plugs and internal circuits
Absorbed/leaked current and power at plug of machines
Tripping time/current of type A, AC, B General and Selective RCDs up to 1000mA
Contact voltage
Line/Loop impedance and Ipsc calculation
Line/Loop impedance with high resolution (with optional accessory IMP57)
Non-trip earth resistance
Leakage current (with optional accessory HT96U)
Phase sequence
Timer and limit thresholds selectable through programmable ramps
USB interface Collegamento ad accessori opzionali
Provided PC interface with software for Windows

Guidelines
  •  CEI 64-8
  •  CEI 64-8/7
  •  CE MARK
  •  EMC 2014/30/EU
  •  EMC: IEC/EN61326
  •  EN50106
  •  IEC/EN60204-1
  •  IEC/EN60598-1
  •  IEC/EN61010-1
  •  IEC/EN61187
  •  IEC/EN61335-1
  •  IEC/EN61439-1
  •  IEC/EN61439-2
  •  IEC/EN61557-1
  •  IEC/EN61557-13
  •  IEC/EN61557-14
  •  IEC/EN61557-2
  •  IEC/EN61557-3
  •  IEC/EN61557-4
  •  IEC/EN61557-6
  •  IEC/EN61557-7
  •  LVD 2014/35/EU
  •  UNE20460
