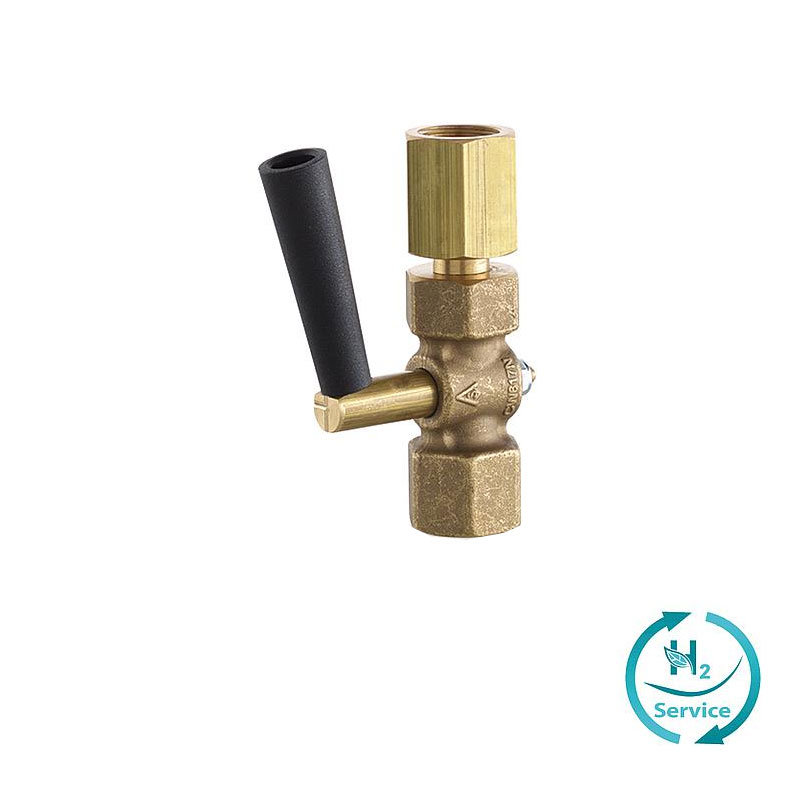

Gauge Cocks with Swivel Nut


AS-Schneider Gauge Cocks are basically designed, manufactured and tested according to DIN 16261, DIN 16262 and DIN 16263, however, the swivel nut type is not mentioned in those DIN standards. According to above standards the cocks are applicable for a max. allowable (Working) Pressure (PS) of 6 – 16 bar (87 – 232 psi) and a max. allowable Temperature (TS) of 50°C (122°F) for liquids, gas or vapors. Originally the AS-Schneider Gauge Cocks were designed for a max. allowable (Working) Pressure (PS) of 25 bar (363 psi) for the G 1/2 models. We kept this pressure class for this kind of gauge cocks, see below Ordering Information.

Operating Positions are marked on top of the plug (see also further comments under General Information).

Datasheet
Add to your Quote List

*The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

Gauge Cocks with Swivel Nut Instrument Connection

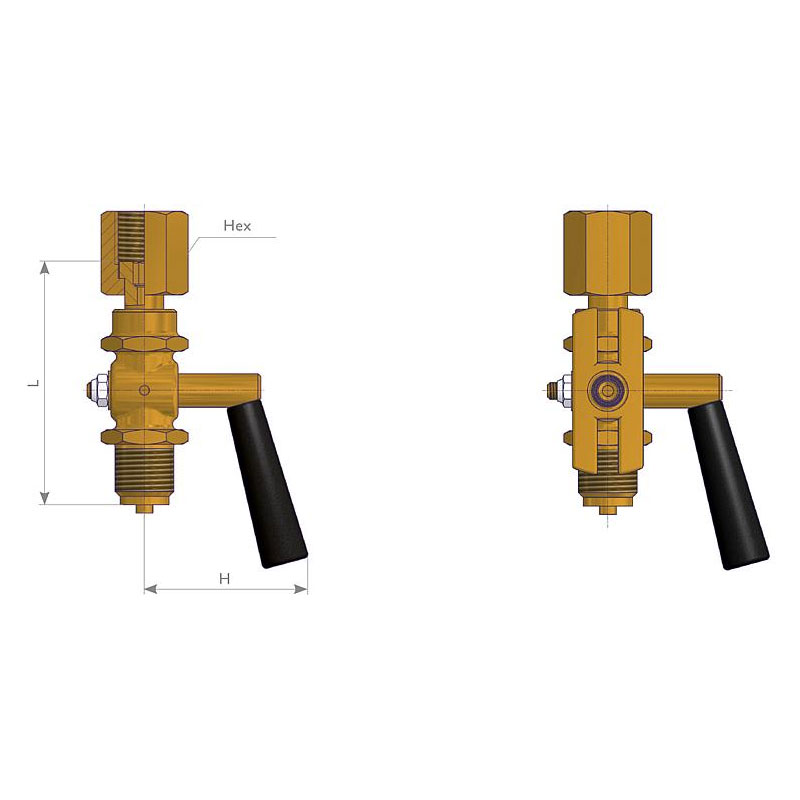

Inlet Outlet Material PN L H Hex Test Connection References Part Number
G 1/2 Male G 1/2 Swivel Nut Brass 25 87 57 27 N003.19.000
G 1/2 Male G 1/2 Swivel Nut Brass Test Flange 60 x 25 x 10 N003.14.000
G 1/2 Female G 1/2 Swivel Nut Brass 82 S003.22.000
G 1/2 Female G 1/2 Swivel Nut Brass Test Flange 60 x 25 x 10 S003.18.000









Manometerhähne mit drehbarer Muffe 1

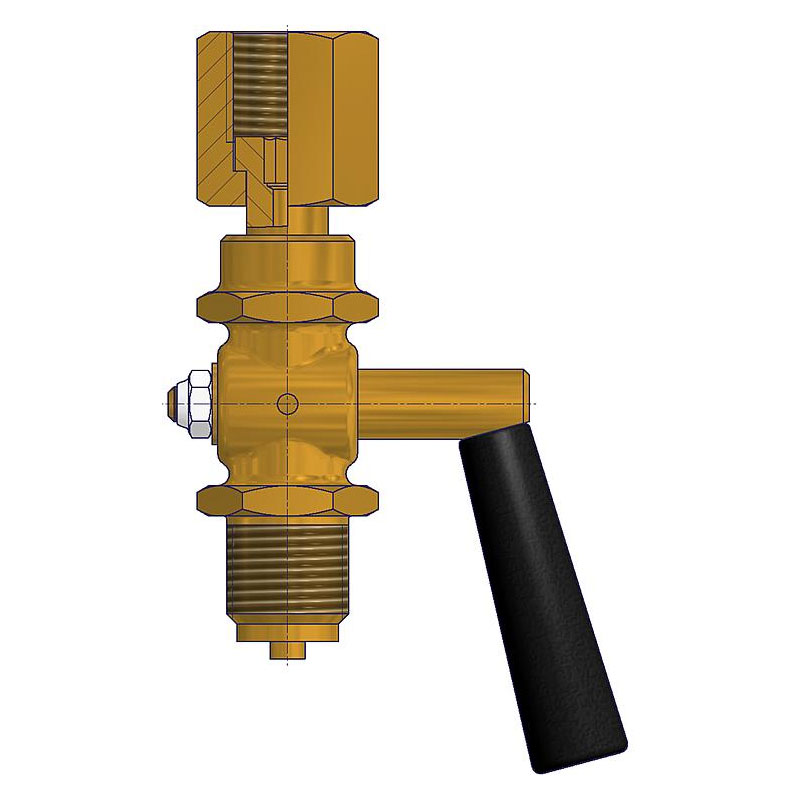

Manometerhähne mit drehbarer Muffe 2
Manometerhähne mit drehbarer Muffe 3
Manometerhähne mit drehbarer Muffe 4
Technical advice: 03303 / 50 40 66

Technical advice for this product
