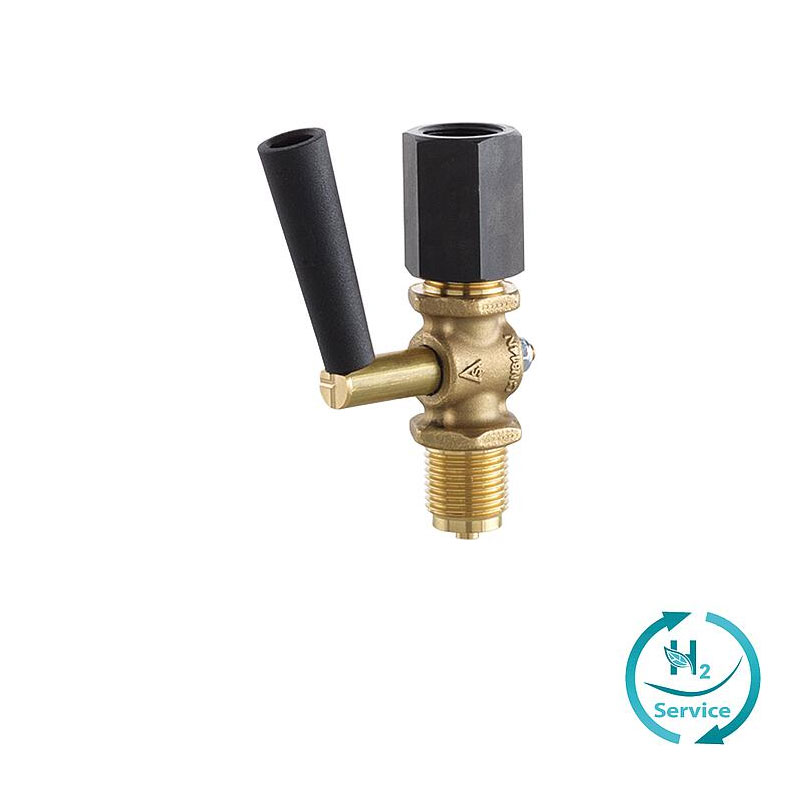

Gauge Cocks Male Thread x Adjusting Nut


AS-Schneider Gauge Cocks are basically designed, manufactured and tested according to DIN 16261, DIN 16262 and DIN 16263. According to above standards the cocks are applicable for a max. allowable (Working) Pressure (PS) of 6 – 16 bar (87 – 232 psi) and a max. allowable Temperature (TS) of 50°C (122°F) for liquids, gas or vapors. Originally the AS-Schneider Gauge Cocks were designed for a max. allowable (Working) Pressure (PS) of 25 bar (363 psi) for the G 1/2 models. We kept this pressure class for this kind of gauge cocks, see below Ordering Information.

Operating Positions are marked on top of the plug (see also further comments under General Information).

Datasheet
Add to your Quote List

*The dimensions shown in this catalogue apply to standard types. If you need the dimensions for your individual type or should you still not find your options at all please contact the factory.

Gauge Cocks with Male x Female (Adjusting Nut) Connection

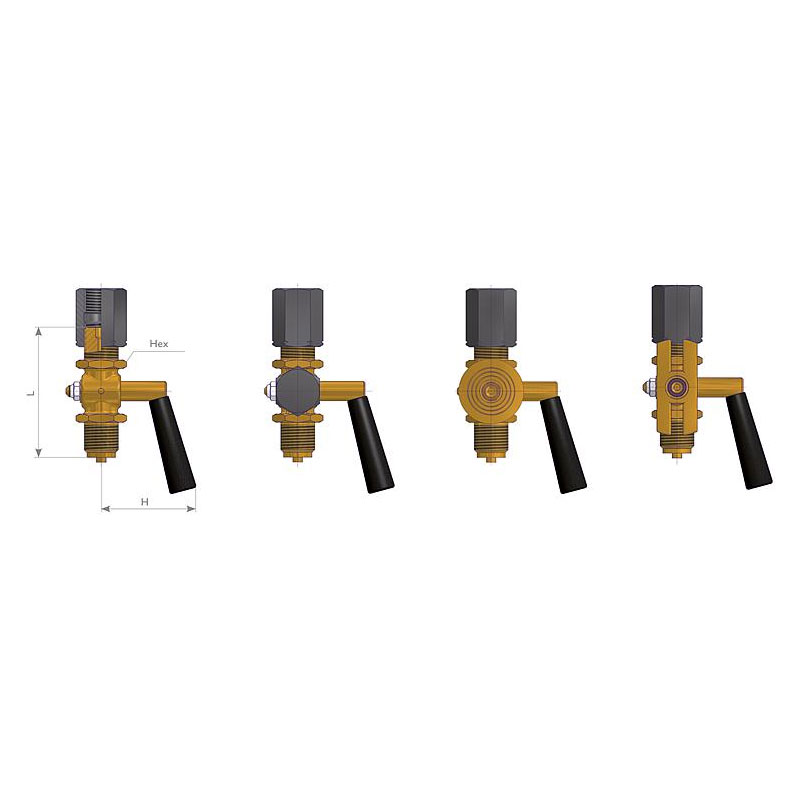

Inlet Outlet Material PN L H Hex Test Connection References Part Number
G 1/4 Male G 1/4 Adjusting Nut Brass 6 55 30 17 DIN 16262 Type B S003.42.000
G 1/2 Male G 1/2 Adjusting Nut Brass 25 80 57 27 DIN 16262 Type A N003.30.000
G 1/2 Male G 1/2 Adjusting Nut Brass (AP) S003.30.000.32
G 1/2 Male G 1/2 Adjusting Nut 1.4571 83 DIN 16262 Type A S003.30.200
G 1/2 Male G 1/2 Adjusting Nut Brass 80 M 20 x 1.5 c/w Protective Cap DIN 16263 Type A N003.31.000
G 1/2 Male G 1/2 Adjusting Nut Brass (AP) S003.31.000.32
G 1/2 Male G 1/2 Adjusting Nut 1.4571 83 DIN 16263 Type A S003.31.200
Brass 80 Test Flange 60 x 25 x 10 N003.36.000
Stainless Steel 83 S003.36.200
Brass 80 Test Flange Ø 40 x 5 N003.38.000
M 20 x 1.5 Male M 20 x 1.5 Adjusting Nut N003.30.050
M 20 x 1.5 Male M 20 x 1.5 Adjusting Nut 83 M 20 x 1.5 c/w Protective Cap N003.31.050
M 20 x 1.5 Male M 20 x 1.5 Adjusting Nut 1.4571 S003.31.250

* Brass (AP) = Body, Adjusting Nut and Protective Cap in Brass.

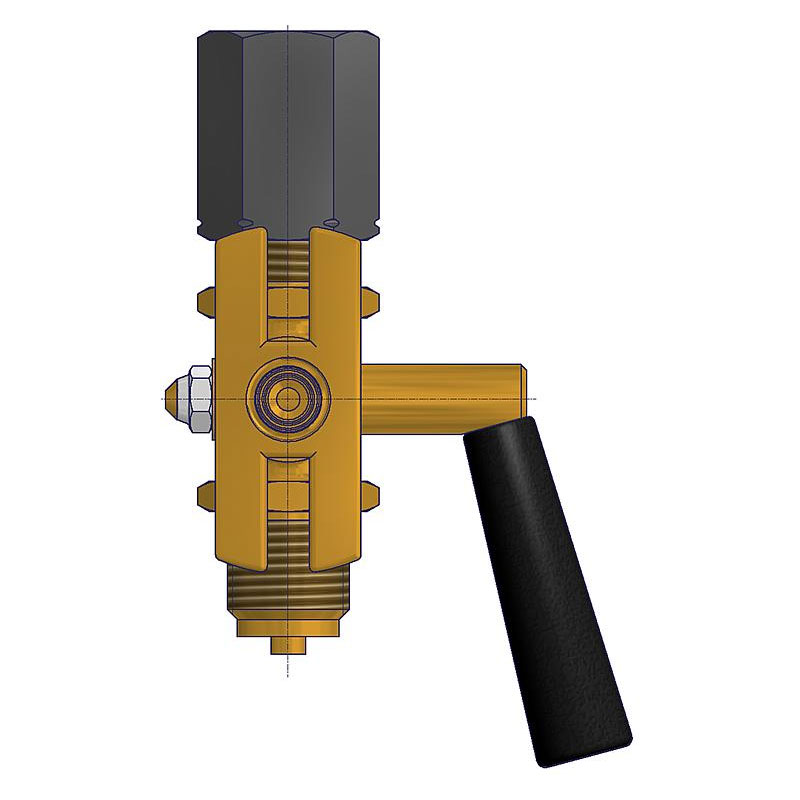

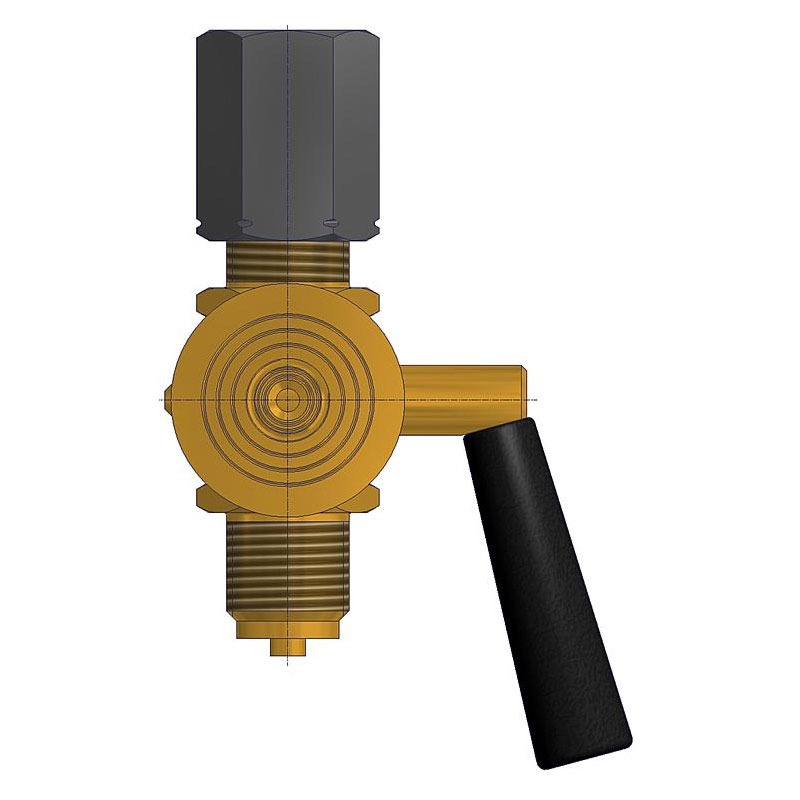

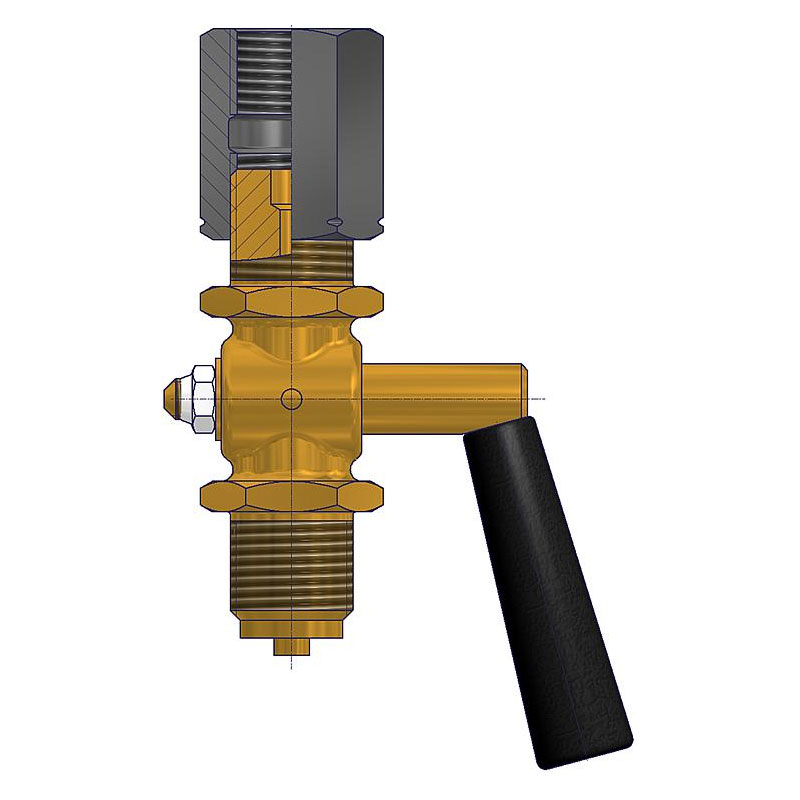

Manometerhähne Außengewinde x Spannmuffe 1
Manometerhähne Außengewinde x Spannmuffe 2

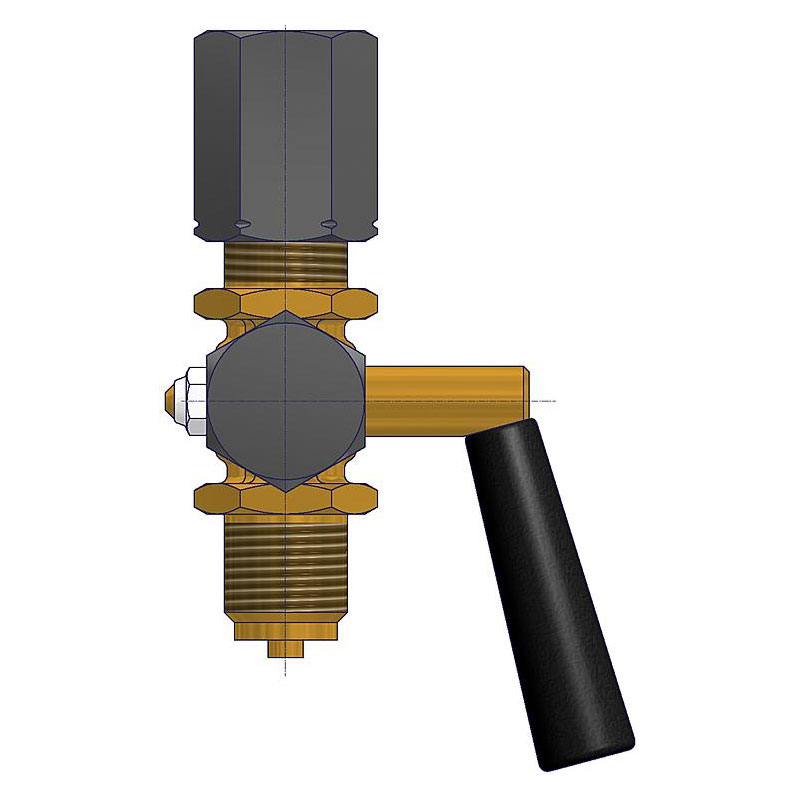

Manometerhähne Außengewinde x Spannmuffe 3
Manometerhähne Außengewinde x Spannmuffe 4
Manometerhähne Außengewinde x Spannmuffe 5
Manometerhähne Außengewinde x Spannmuffe 6
