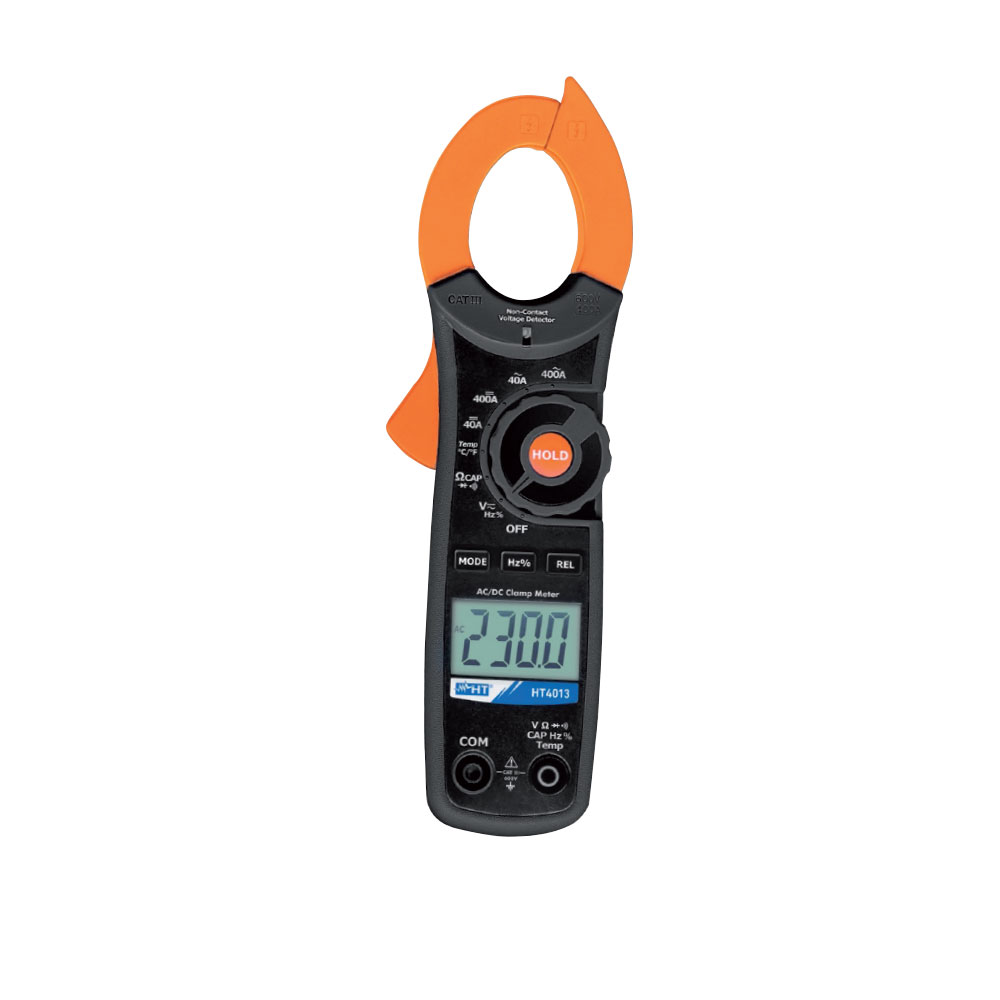

Clamp meter HT4013 has been designed to measure AC/ DC current up to 400A and AC/DC voltage up to 600V to reach CAT III 600V in compliance with standard IEC/ EN61010-1.
The clamp is provided with an internal sensor to detect AC voltage also without contact, through a red LED turning on. This model also carries out measurements of Resistance, Continuity tests, Frequency, Capacity, Diode test, Duty Cycle and Temperature with K-type probe, among others. The clamp is also provided with the auto power off function to preserve its own battery.
 Datasheet
|
|
Bedienungsanleitung
|
| Maximum diameter for clamp | |
| Current measuring range | 400A |
| Measuring counts | |
| AC/DC voltage | 600V |
| AC/DC current | |
| Resistance and continuity test with buzzer | |
| Frequency | |
| Capacity | |
| Temperature with K-type probe | |
| Duty Cycle (%) | |
| Relative measurement | |
| Diode test | |
| Data HOLD | |
| Auto power off | |
| Bargraph | |
| Power supply | |
| Measurement category | CAT III |
| Weight in grams (batteries included) | |
| Size (LxWxH) (mm) |
