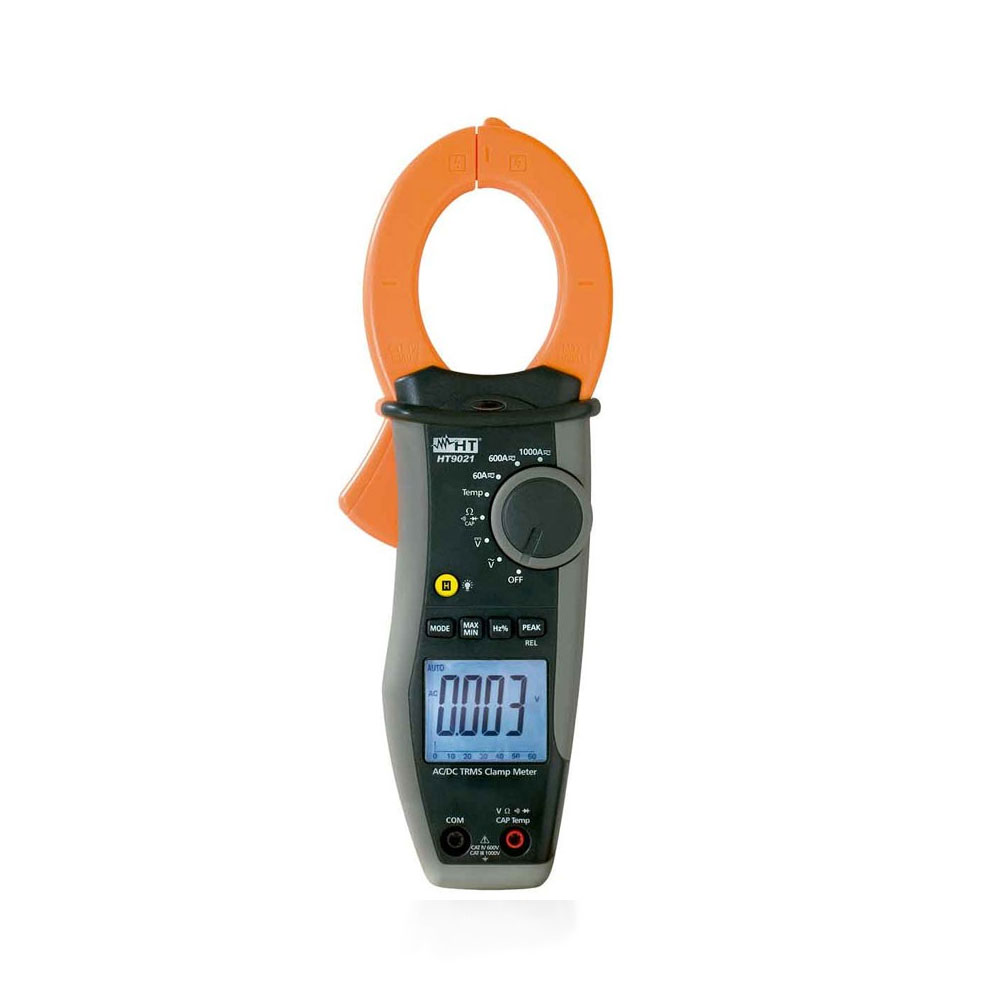

HT9021 – AC/DC TRMS CAT IV 600V clamp meter with temperature measurement


HT9021 has been designed to measure AC/DC current up to 1000A in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010- 1.
The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9021 also carries out measurements o voltage up to 1000V, Resistance, Frequency, Capacity and Temperature with K-type probe.

Datasheet
Add to your Quote List
Functions
Maximum diameter for clamp
TRMS
Current measuring range 1000A
Measuring counts
AC/DC voltage 1000V
AC/DC current
Resistance and continuity test with buzzer
“Voltsense” for AC voltage recognition
Frequency
Capacity
Temperature with K-type probe
Diode test
MAX/MIN
PEAK
Relative measurement
Backlit LCD display
Bargraph
Data HOLD
Relative measurement
Autorange
Auto power off
Power supply
Measurement category CAT IV
Weight in grams (batteries included)
Size (LxWx H) (mm)
Guidelines
  •  CE MARK
  •  EMC 2014/30/EU
  •  EMC: IEC/EN61326
  •  IEC/EN61010-1
  •  LVD 2014/35/EU
