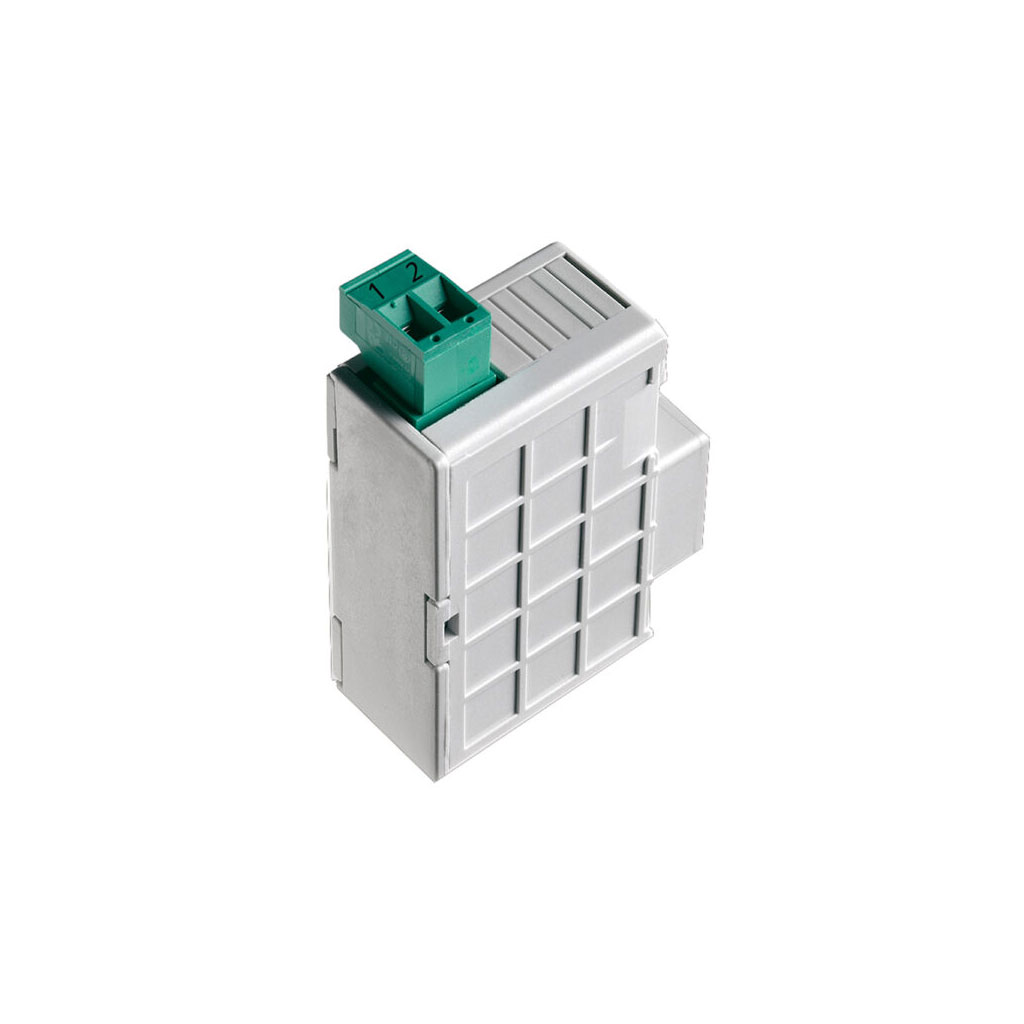

DatasheetNemo 96HD/HD+ – Neutral Current Module IF96006
Interface module for neutral current measurement
| Type | Interface for neutral current measurement for Nemo 96HD/HD+ |
|---|---|
| Ordering code | IF96006 |
| Description | Neutral current |
| Function | Allows measurement of the neutral current, normally calculated by the meter |
| Network | Single-phase network, 4-wire three-phase network |
| Connection | Direct connection up to max. 5 A or via external current transformer |
| Rated current | 5 A / 1 A |
| Rated frequency | 50 Hz |
| Tolerance | 47…63 Hz |
| Measuring method | True RMS conversion |
| Harmonic content | Up to the 22nd harmonic |
| Input power consumption | ≤ 0.5 VA |
| Programmable parameters | Current transformer ratio 1…9999 |
| Note on CT ratio | The programmed CT ratio for the neutral current transformer is independent of the L1-L2-L3 transformer ratio. The neutral current transformer can be different from the measuring transformers. |
| Auxiliary supply | According to the combination of Nemo 96HD/HD+ multifunction module and IF96006 module |
| Module power consumption | ≤ 5 VA |
| Test voltage | 2 kV R.M.S., 50 Hz / 1 min |
| Test circuit | Measuring input, auxiliary supply |
| Housing | Module with connector for connection to the Nemo 96HD/HD+ device |
| Housing depth | 81 mm, Nemo 96HD/HD+ and module |
| Connection | Screw terminal |
| Wire connection | Solid max. 4.5 mm²; flexible max. 2.5 mm² |
| Housing material | Self-extinguishing polycarbonate |
| Weight | 50 g |
