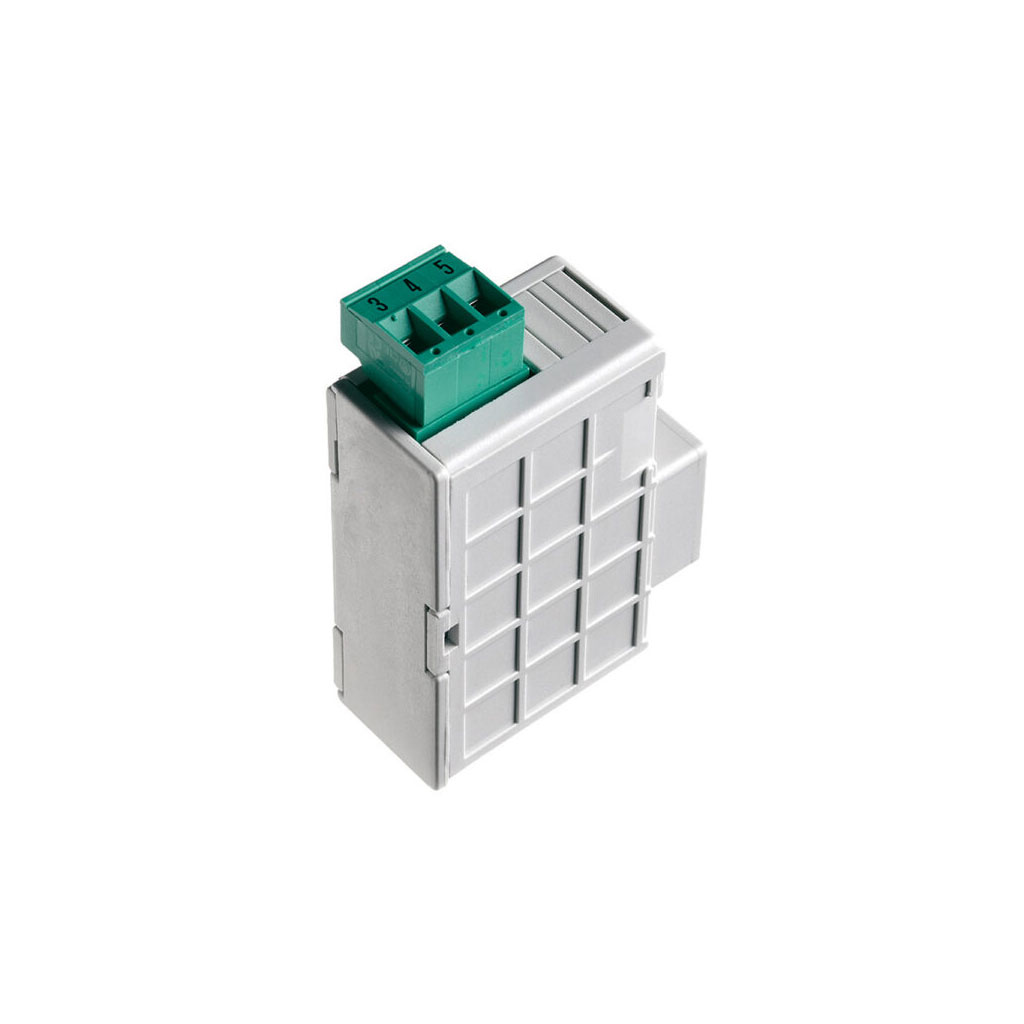

DatasheetNemo 96HD/HD+ – Ethernet Communication Interface IF96015
Interface module for Ethernet communication
| Type | Interface for Ethernet communication for Nemo 96HD/HD+ |
|---|---|
| Ordering code | IF96015 |
| Description | Ethernet communication |
| Function | Makes the relevant measured data available via Ethernet communication |
| Communication | Ethernet |
| Galvanic insulation | Galvanic insulation between input and auxiliary supply, Nemo 96HD/HD+ |
| Standard | IEEE 802.3 |
| Baud rate | Max. 10 Mb/s |
| Programmable parameters | IP address, subnet, gateway, TCP port, TCP timeout |
| Programming | Via browser, e.g. Internet Explorer, according to the manual supplied with the IF96015 module |
| Auxiliary supply | According to the combination of Nemo 96HD/HD+ multifunction module and IF96015 module |
| Power consumption | ≤ 5 VA |
| Test voltage | 1.5 kV R.M.S., 50 Hz / 1 min |
| Test circuit | Input, auxiliary supply through Ethernet communication |
| Housing | Module with connector for connection to the Nemo 96HD/HD+ device |
| Max. depth | 81 mm, Nemo 96HD/HD+ and module |
| Connection | RJ45 connection |
| Housing material | Self-extinguishing polycarbonate |
| Weight | 30 g |
