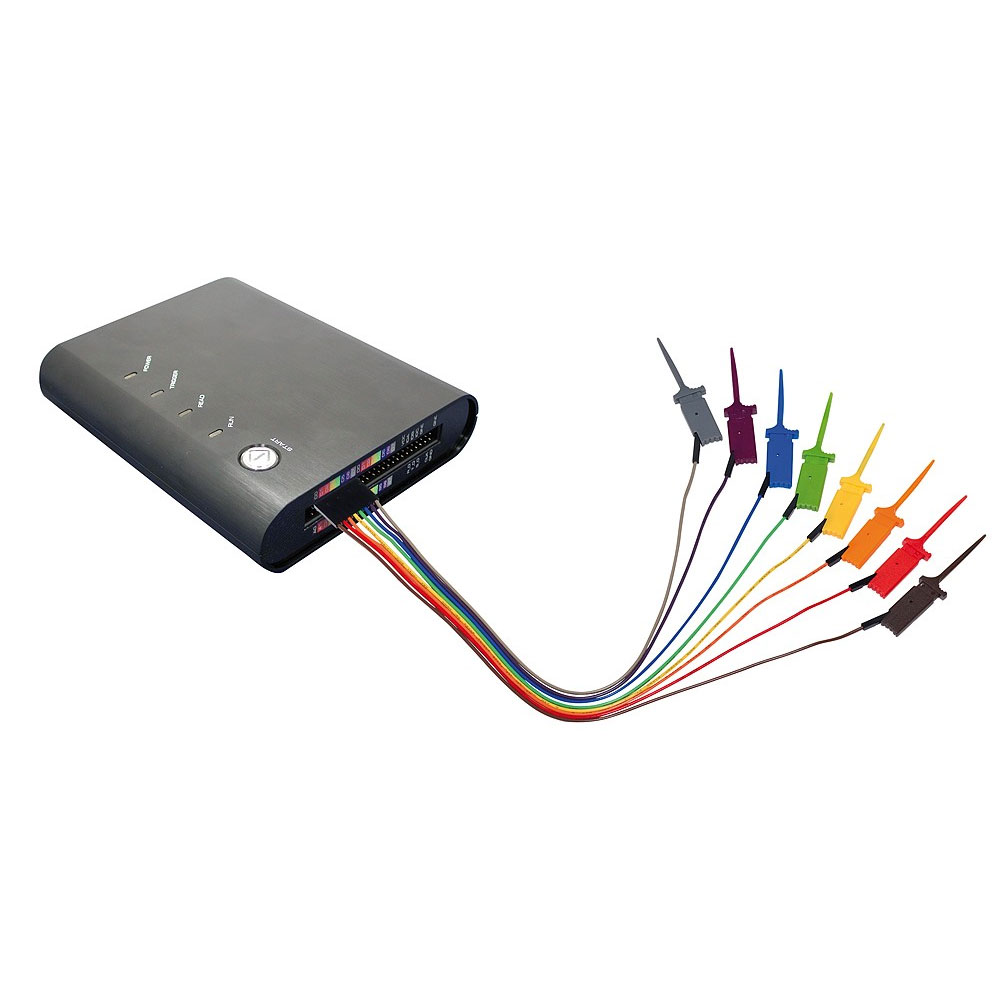

DatasheetThis 16-channel USB logic analyser probe is proposed as an accessory for the MTX1052/MTX1054C SCOPEin@BOX models to allow frame decoding and analysis. The clock rate ranges from 100 Hz to 200 MHz with the possibility of zooming.
The LX1600-PC probe is delivered complete with 2 sets of 8-pin connection cables (diam. 2 mm), 20 measurement probes, 1 USB cable for connection to the PC, a simplified connection board and a test cable for simple connection to the various buses.
There are also boards for RJ45 and SUBD9 connection to these buses under the references HX0190 and M12, as well as for generic wired connection under the reference HX0191.
