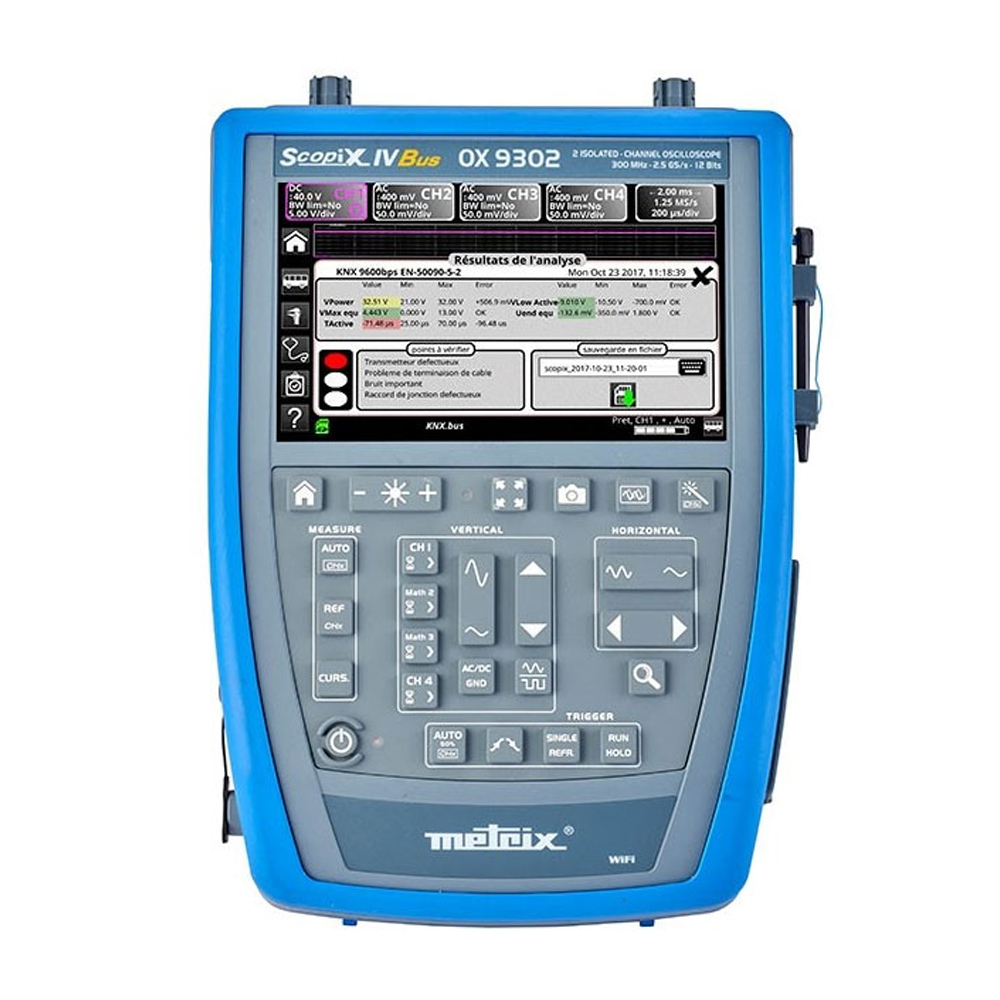

DatasheetThe ergonomics of the SCOPIX IV portable oscilloscopes has been designed to simplify their use.
In a casing tailor-made to be as compact as possible, the external mechanical design of the SCOPIX IV makes it possible to integrate the hardware components in a very small volume, while the keypad benefits from a new technology developed in the automotive industry.
The SCOPIX IV BUS function can be used to perform the electrical measurements needed to assess the integrity of the fieldbuses, or in other words the operation of the physical layer (electrical specifications, synchronization, etc.), according to the applicable standards.
4 steps for quick simple diagnosis :
Choice of the bus to be analysed
Display of the measurement tolerances
Analysis
Results of the analysis
