Two meshing gears are rotated by the flow energy of the medium, the amount of liquid is transferred between the housing and flank of tooth. Based on the measured frequency the correct flow rate is determined. By default the GFM are measured and calibrated in flow direction (see label) for mineral oil at 30mm²/s, optionally other calibration viscosities or a calibration in both directions are possible.

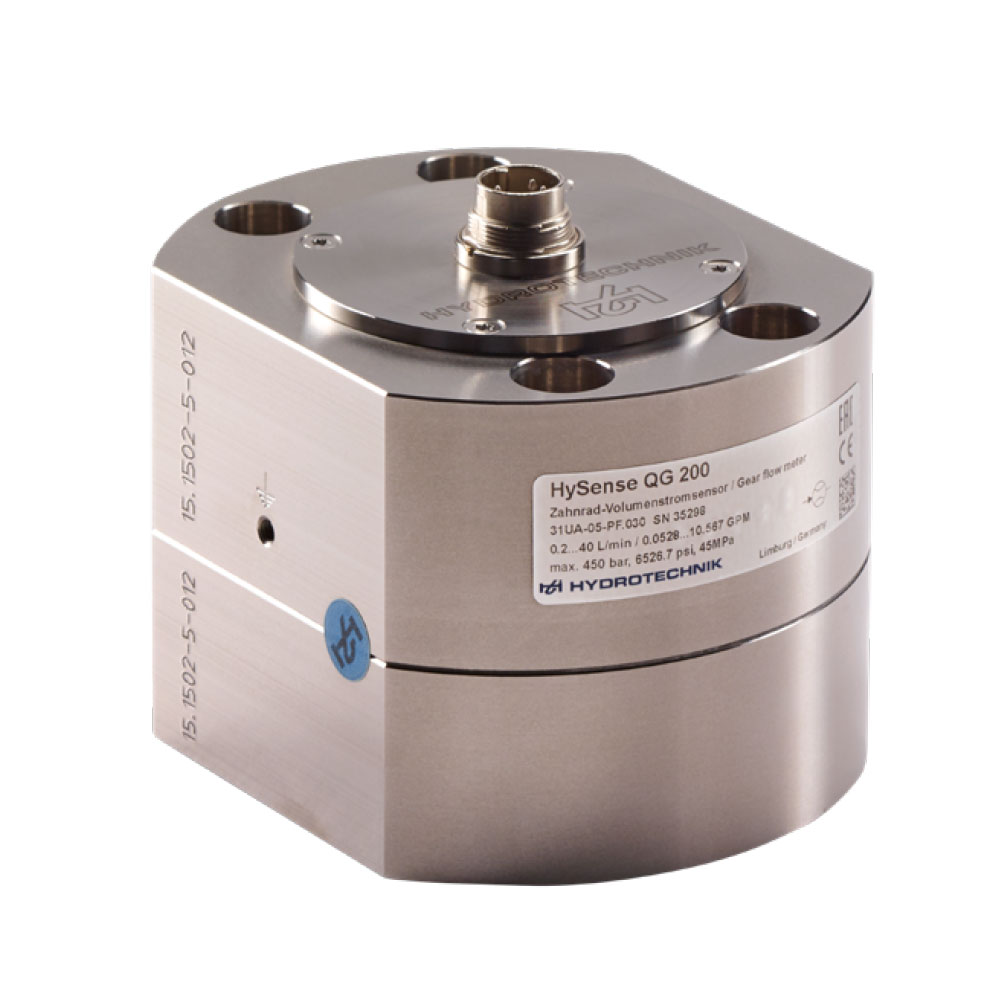

QG2xx HySense® Precise gear flow meter
Precise Gear flow meter according to displacement with connection via connector plate from the side or from below.
- Small viscosity dependence
- Wide measuring range
- Quick replaceable, because of plate construction
- No pipe installation necessary
- Automatic sensor detection ISDS
