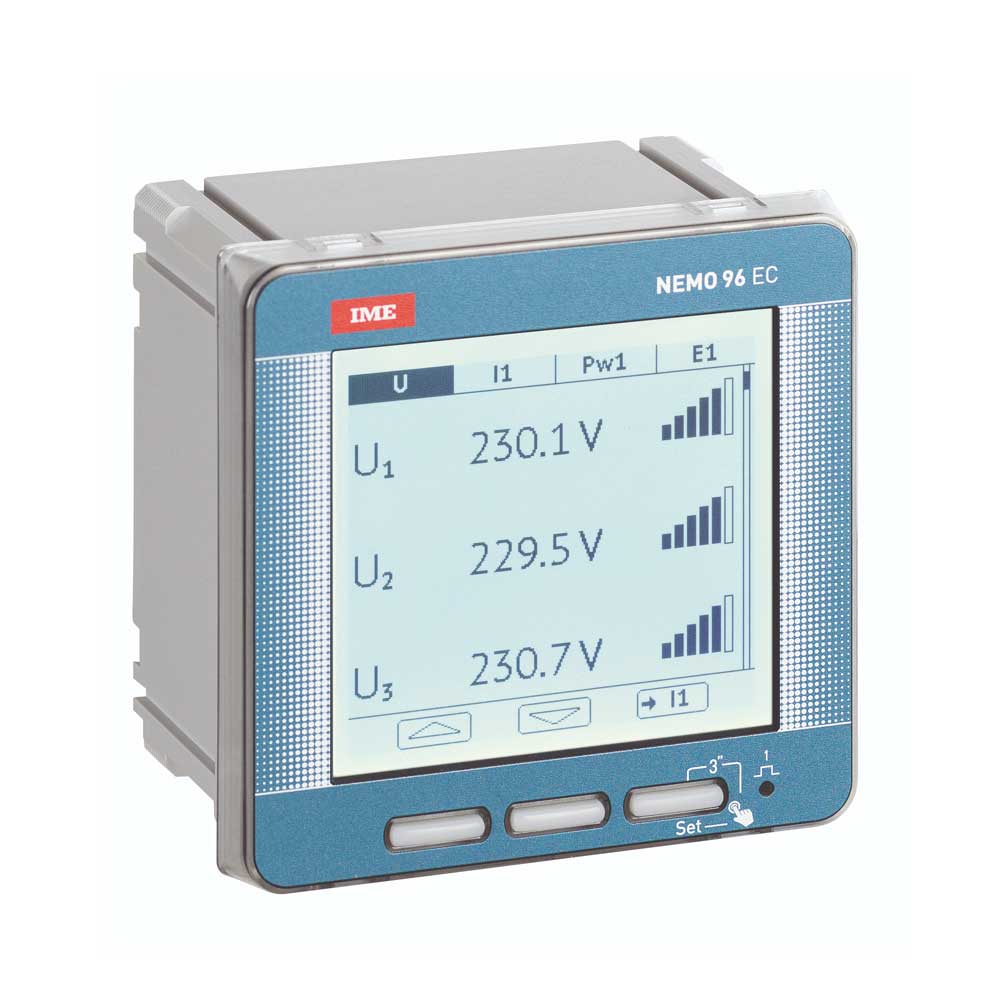

Three-phase multifunction instrument with 1 or 2 “Easy Connect” inputs

Bidirectional multifunction device for three-phase AC low-voltage networks
Suitable for 3- or 4-wire three-phase systems
For openable current sensors from 630 A to 6300 A
Graphic display for showing important network parameters
Measurement of voltage, current, power, energy, frequency and power factor
Analysis of THD, harmonics and crest factors for current and voltage
Display of average power load curve and harmonic diagrams up to the 15th harmonic
Easyconnect quick connections to reduce installation time and wiring errors

Datasheet
User manual

Multifunction device for three-phase AC low-voltage networks

Type	Bidirectional multifunction device for three-phase AC low-voltage networks
Mounting type	Panel mounting
Current sensors	Openable current sensors from 630 A to 6300 A
Network	Suitable for 3- or 4-wire three-phase systems
Display	Graphic display for showing the main values of an electrical network
Voltage measurement functions	Phase and linked voltage, minimum and maximum voltage, voltage THD, voltage harmonic analysis, voltage crest factor
Current measurement functions	Phase current, neutral current, average phase current, phase current peak, average of 3-phase currents, current THD, current harmonic analysis, current crest factor
Power measurement functions	Active power, reactive power, apparent power, three-phase phase distortion, average power, average power peak, active, apparent and reactive peak power
Energy	Active energy, positive and negative
Additional measured values	Power factor, frequency, hour counter after voltage or power supply
Analysis functions	Current and voltage offsets, average power load curve and harmonic diagrams up to the 15th harmonic
Connection	Easyconnect quick connections to reduce installation time and wiring errors
