DatasheetApplications
- Load monitoring in industrial plants
- Material testing machines
- Production lines
- Measuring, testing and control equipment
- Special equipment and machinery construction
Description
Tension/compression force transducers are designed for static and dynamic measurement tasks in the direct flux of force. They determine the tension and compression forces in a wide scope of applications.

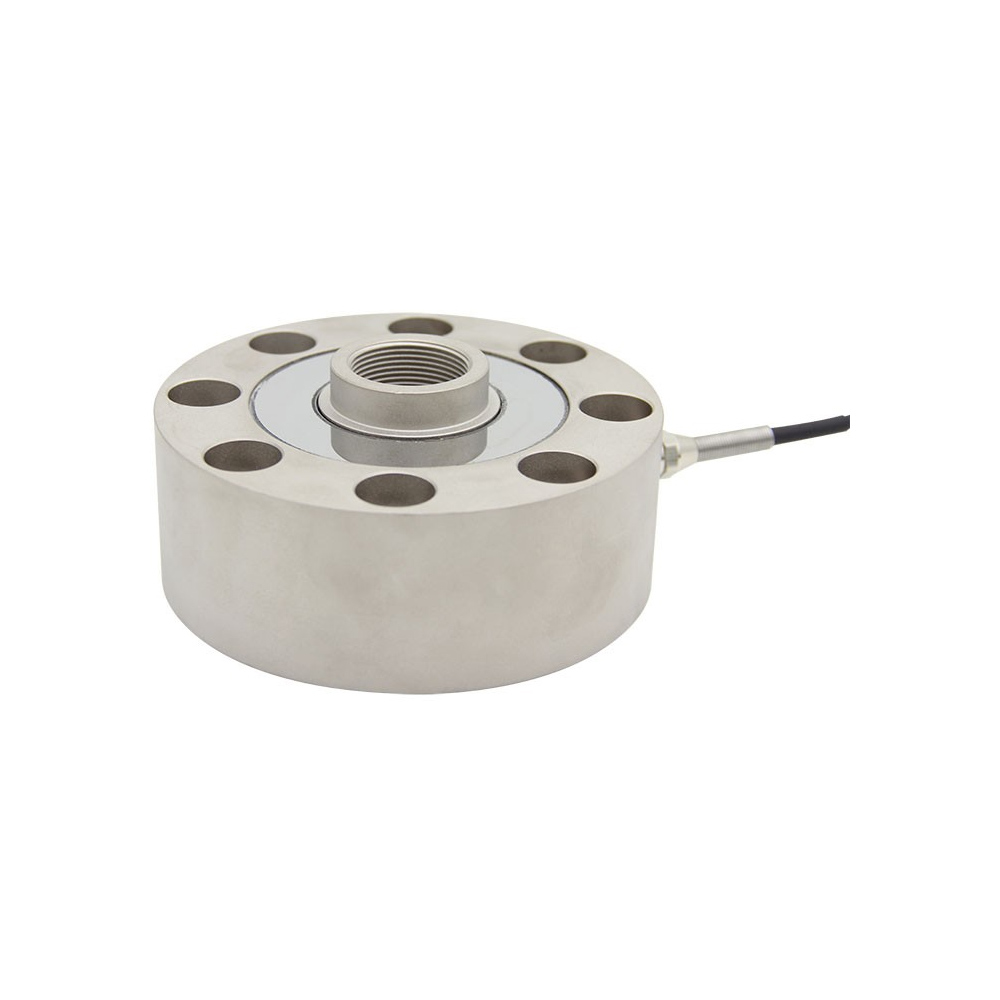

Due to their robustness and low height, F2822 force transducers are used in harsh industrial environments as well as in laboratories or test fields. They have a bore through the center, with an internal thread for the force introduction.
Note
In order to avoid overloading, it is necessary to connect the force transducer electrically during installation and to monitor the measured value.
The force to be measured must be applied concentrically and free of transverse force. The force transducers are to be mounted on a level surface.
