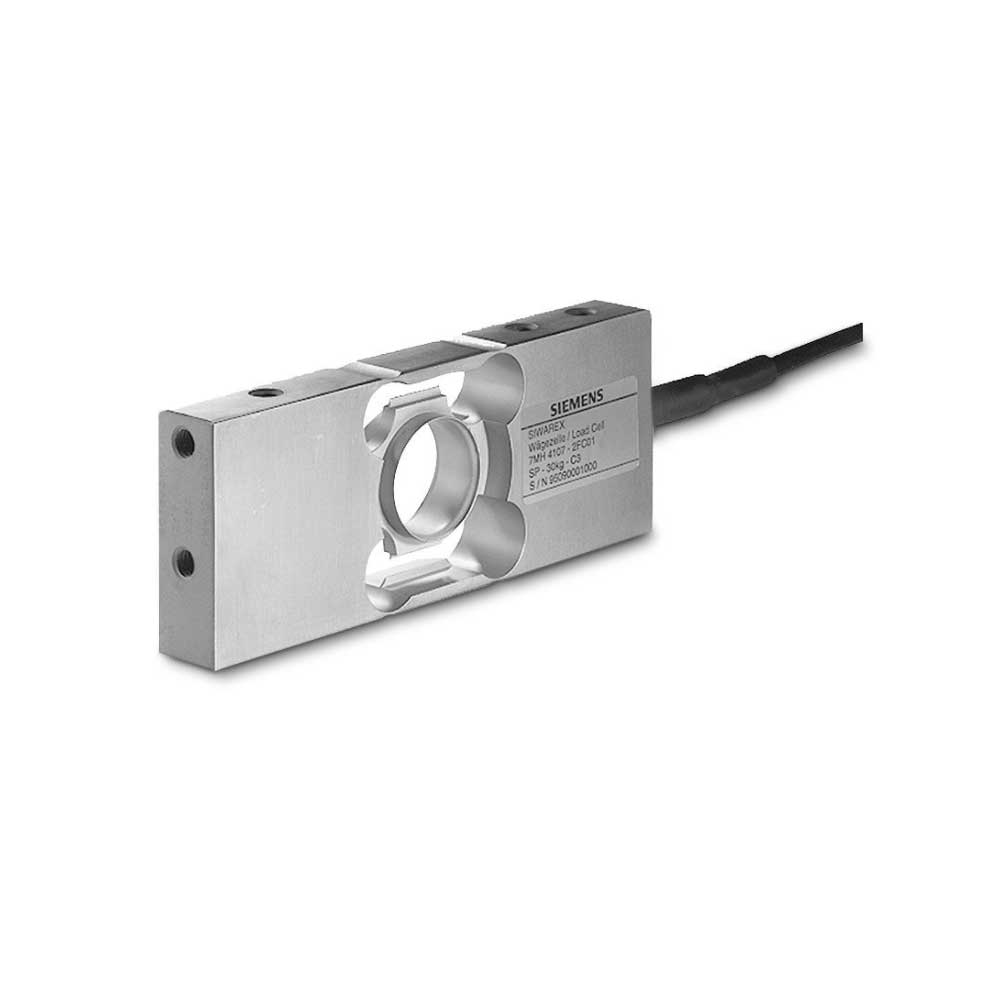

DatasheetThe single point load cell SIWAREX WL260 SP-S SB is made of stainless steel and hermetically sealed. The degree of protection IP68. The load cell has a load range from 6kg up to 60kg and a maximum platform size of 350x350mm. Additionally it is approved for the use in commercial scales with class III with a maximum scale interval number max=3.000d.
Detail
|
Rated load
|
6, 12, 30, 60kg
|
|---|---|
|
Accuracy class
|
C3 according to OIML R60
|
|
Degree of protection
|
IP68
|
|
Material
|
Stainless steel
|
Typical applications: platform scales, small belt scales, checkweigher or dosing applications
