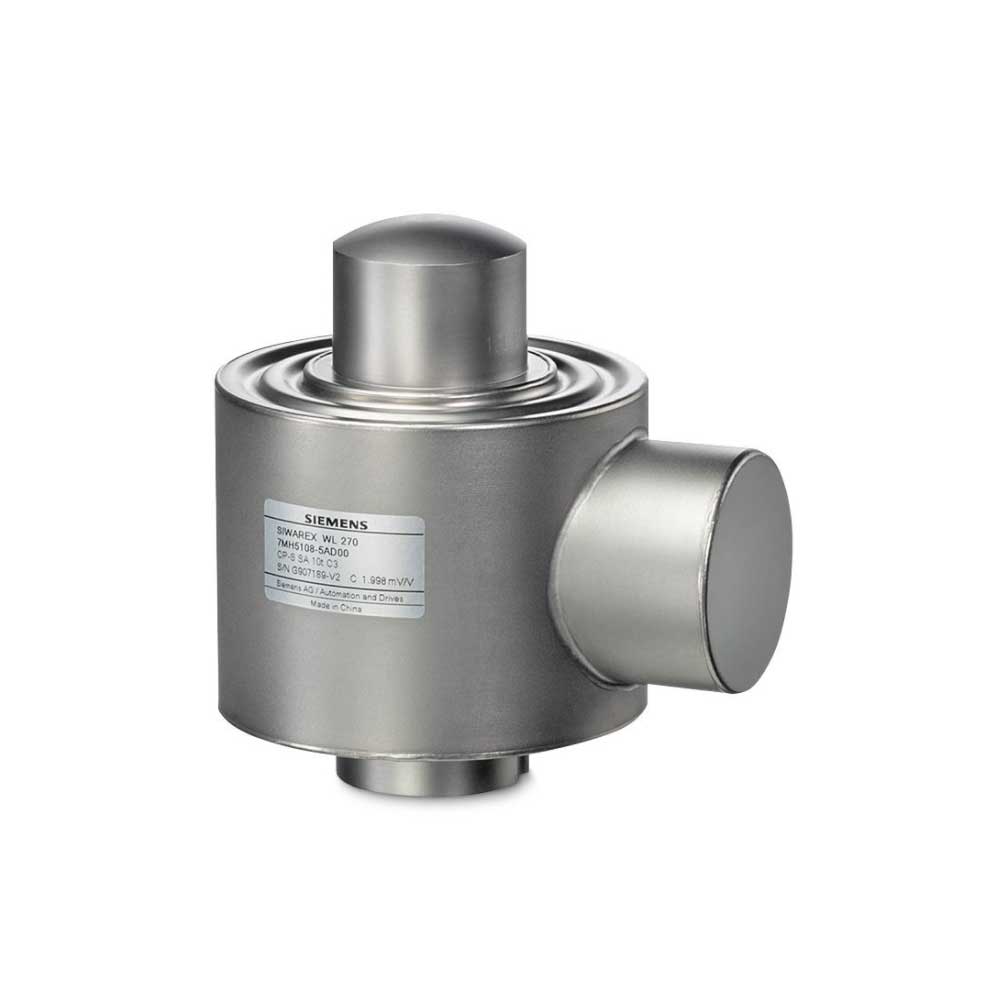

DatasheetThe compression load cell SIWAREX WL270 CP-S SA is a compact load cell. The load cell is optimal for use in small and medium sized containers or truck scales. It is available with the accuracy class of C3 according to OIML R60. With the according SIWAREX mounting unit a quick and simple installation is easily possible. Additionally, the mounting device can be used as dummy for safe welding works.
Detail
|
Rated load
|
10, 20, 30, 50t
|
|---|---|
|
Accuracy class
|
C3 according to OIML R60
|
|
Resolution
|
10.000 |
|
Degree of protection
|
IP68
|
|
Material
|
Stainless Steel
|
Typical applications: truck and railway scales, tank and silo weighing as well as in heavy duty industrial scales
