Datasheet| Type | 5357.1 |
| brief data | AC 230V / 230V / 400VA |

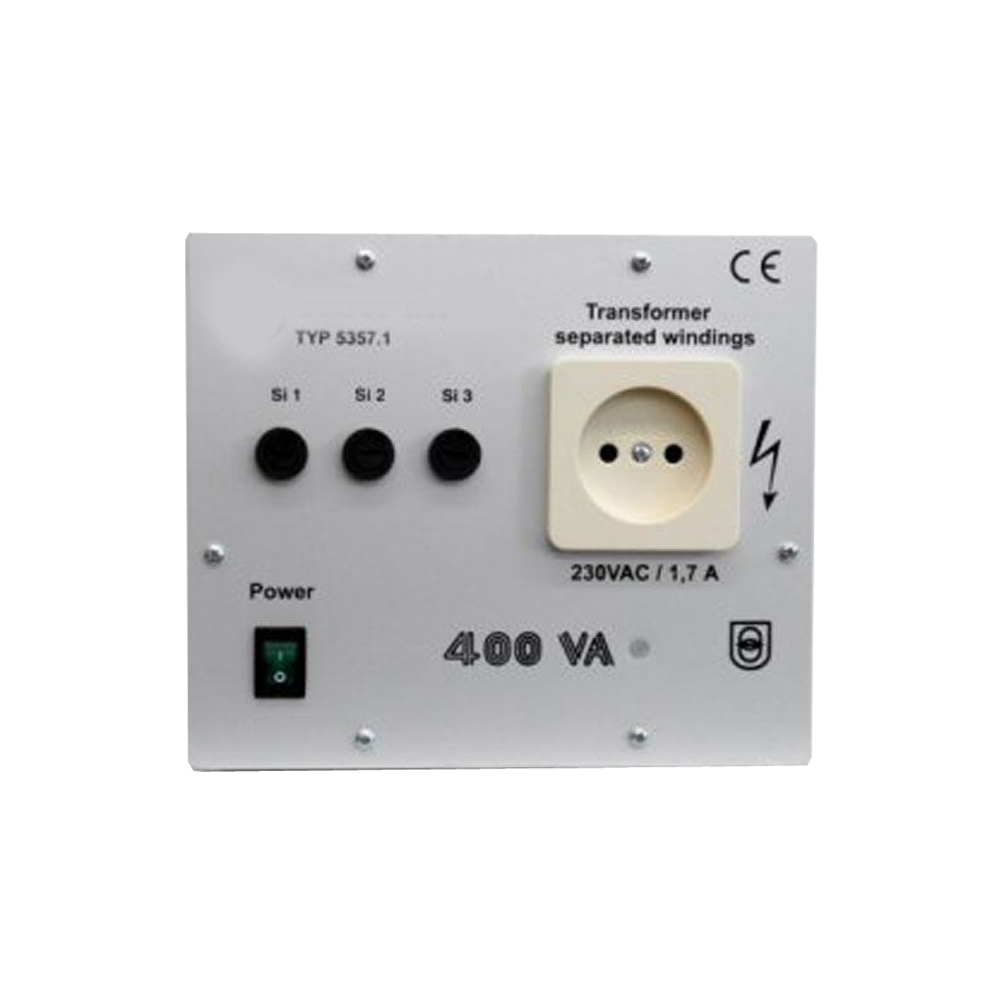

| description | Isolation transformer in the housing |
| input voltage | 230VAC 50-60Hz |
| Input/output separation | galvanically isolated, unearthed |
| output voltage | AC 230V |
| output current | 1.74A |
| output current duration | 1.74A |
| output power | 400VA |
| continuous power | 400VA |
| short-term resilience | 460VA |
| CV Stability Load 0-100% | |
| CV residual ripple Ueff | |
| settling time | |
| no-load current consumption | |
| connection input | 3-pole mains cable with Euro safety plug |
| connection output | 2-pin built-in socket |
| Device Properties | Isolating transformer in the housing, fuses on the front, illuminated mains switch |
| cooling | convection |
| Weight | 7 |
| casing | desktop device |
| Dimensions | 183x180x252 |
| Degree of protection/class | IP30/I |
| color | RAL 7035 light grey/front anodised aluminium |
| Stability Ua with change Ue | |
| Others |
