Type | 5357.51 |
brief data | 115V / 230V / 2300VA |

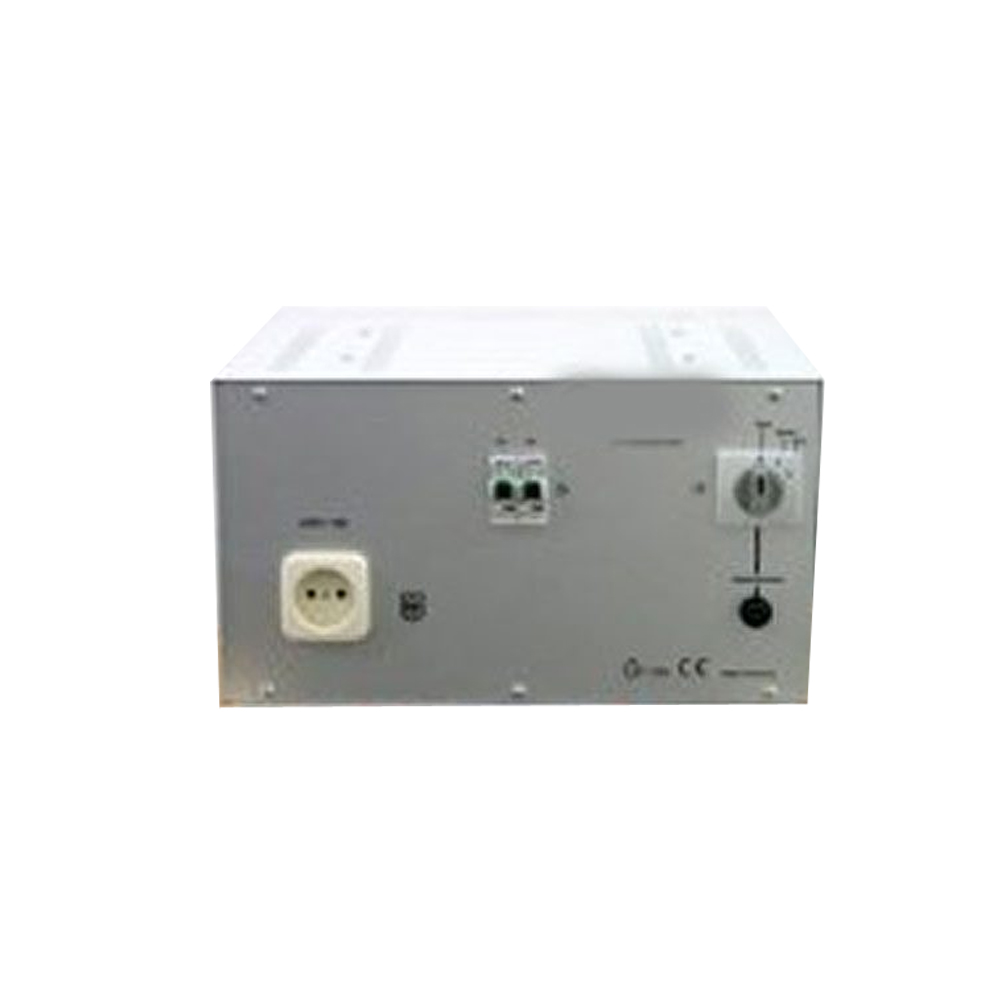

description | Isolation transformer 115V/230V/2300VA |
input voltage | 115VAC |
Input/output separation | galvanically isolated |
output voltage | 230VAC |
output current | 10A |
output current duration | |
output power | 2300VA |
continuous power | 2300VA |
short-term resilience | |
CV Stability Load 0-100% | |
CV residual ripple Ueff | |
settling time | |
no-load current consumption | |
connection input | Power cord with USA plug |
connection output | 2-pin built-in socket without protective conductor connection |
Device Properties | thermo.magnetic fuses in the input and output circuit, compact design |
cooling | convection |
Weight | 40 |
casing | Table housing sheet steel/aluminium silver anodised |
Dimensions | 380x225x330 |
Degree of protection/class | IP30/I |
color | RAL 7036 and front aluminum silver anodized |
Stability Ua with change Ue | |
Others | On switch with pre-magnetization to prevent the large inrush current peak |
